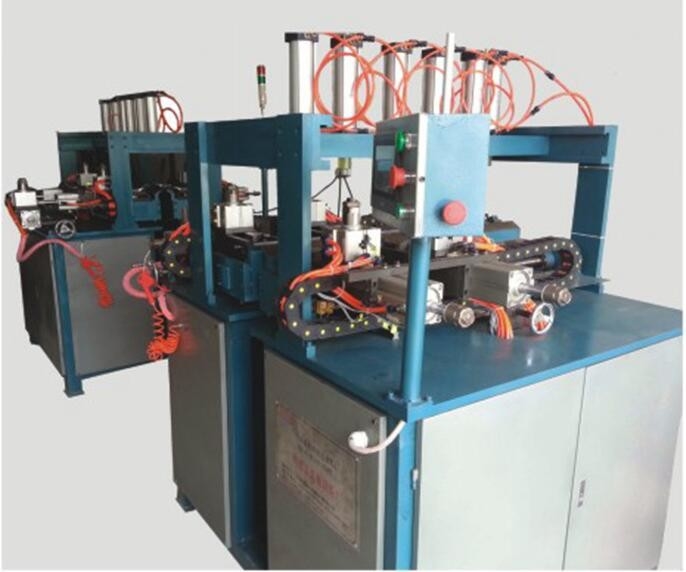

Cylinder Drive 2.5Kw Car Water Tank Crimping Machine Radiator Clinching Tool

  • Cylinder Drive 2.5Kw Car Water Tank Crimping Machine Radiator Clinching Tool
  • Cylinder Drive 2.5Kw Car Water Tank Crimping Machine Radiator Clinching Tool
  • Cylinder Drive 2.5Kw Car Water Tank Crimping Machine Radiator Clinching Tool
  • Cylinder Drive 2.5Kw Car Water Tank Crimping Machine Radiator Clinching Tool
Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operation Mode Double Station Manual Driving Mode Cylinder Drive
Max Workpiece Size L1000*W900mm Operating Voltage And Power 220V， 50Hz，2.5Kw
Machine Size 1900*1800*2100mm
High Light

2.5Kw Car Water Tank Crimping Machine

,

Cylinder Drive Water Tank Crimping Machine
Leave a Message
Product Description

Radiator Clinching Tool Car Water Tank Crimping Machine Radiator Clinching Machine

Products quick details:

warranty 12 months brand name SUNHOPE
usage automobile Surface treatment vertical bright, transition matte or two-way bright
mould can customise shape round roll
design style can customise after-sale service yes
OEM welcome Indenter width 20/30/40mm
Driving mode Pneumatics Air pressure requirements 0.8Mpa
Number of cylinders 6--8 Voltage, power 220V/50Hz,2.5kw
Core size 1000*900*56mm running speed adjustable
Workstation 2 production efficiency 60sec.
Maximum size of head plate 120mm Number of preset models Non.
Machine dimensions 1300*1200*1800 Direction adjustment 3 direction
Machine weight 800kg Programmable Non.





Products features:

This is the most economical radiator manufacturing machinery.
1. Simple operation, workers only need a short period of training to operate
2. It is suitable for the installation of water chamber with small number of single model
3. Daily maintenance is simple
4. The working position and operating tools can be adjusted manually according to the water chamber structure
5. One or two workers can operate at the same time
6. The side end needs to be manually pressed after the core is removed
7. Different width of tab pressing plate can be selected,
8. The stroke and force of the manipulator can be adjusted manually according to the needs





Customer Service

  • Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  • Your inquiry related to our products or price will be replied in 24hrs.
  • Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  • one-year warranty
  • Buyer can dispatch technician to our factory for free training before delivery.
  • For essential equipment failure, we will arrange our engineer head to local site to help trouble shooting, also provide online technical support for the whole life.



Cylinder Drive 2.5Kw Car Water Tank Crimping Machine Radiator Clinching Tool 0





About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.



1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

If you are interested in setting up a radiator factory in your place, please contact us and we will provide you with the best service and best price.





FAQ:

1. Automatic crimping machine and semi automatic crimping machine,which one is better?

Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,

semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.



2.How many types of automatic crimping machine?what ‘s the features of it ?

We can divide them into three types.

A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.

B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.

C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.



3.Is it convenient for workers to operate the semi automatic crimping machine?

The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.



4.How many models type can automatic crimping machine system store?

Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.
