Automatic Radiator Crimper 220V Efficient Production
  • Automatic Radiator Crimper 220V Efficient Production
  • Automatic Radiator Crimper 220V Efficient Production

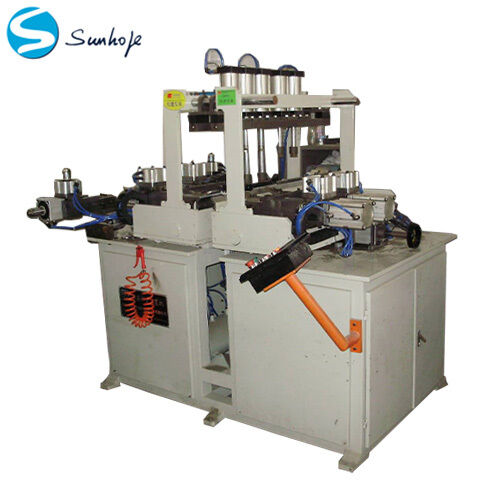

Automatic Radiator Crimper 220V Efficient Production

Place of Origin Guangdong,China
Brand Name Sunhope
Product Details
Power:
220V / 50Hz, 2.5kW
Air Pressure:
0.8 Mpa
Driving Mode:
Servo-Pneumatic
Workstations:
4
Cylinders:
8--12
Core Size:
1000*900*56m
Max Head Plate Size:
120mm
Indenter Width:
20/30/40mm
Production Efficiency:
60-80 Pcs/hour
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
wooden case with safty packing material
Delivery Time
60days
Payment Terms
L/C,T/T
Supply Ability
10sets/month
Product Description
                          Automatic Radiator Crimper 220V Efficient Production
Product Description

The 220V 50Hz Automatic Radiator Plastic Tank Crimping Machine is a 2.5kw professional solution designed for the high-volume production of automobile radiator tanks. It features a fully automated crimping process for plastic tanks with irregular shapes, ensuring consistent, leak-proof seals. The system integrates advanced servo-pneumatic driving for precision and includes a user-friendly HMI for programmable control.

Key Advantages
  • High Efficiency & Precision: Combines servo-pneumatic drive with customizable molds and adjustable speed, achieving a production rate of 60-80 units/hour with consistent, high-quality crimps.
  • Robust Quality Control: Every unit undergoes strict testing by dedicated personnel and engineers. The machine and its processes are certified to CE, FCC, and ROHS standards.
  • Flexible & Customizable: Supports OEM requests, offers 200 preset programs, allows 3-direction adjustment, and can be fitted with custom molds for various tank designs.
  • Integrated Automation: Features a complete system including automatic decoiling, oiling, pressing, fin stacking, and waste collection, streamlining the entire production line.
Technical Specifications
Category Specification
Power 220V / 50Hz, 2.5kW
Air Pressure 0.8 Mpa
Driving Mode Servo-Pneumatic
Workstations 4
Cylinders 8--12
Core Size 1000*900*56mm
Max Head Plate Size 120mm
Indenter Width 20/30/40mm
Production Efficiency 60-80 pcs/hour
Machine Dimensions 1800*1600*1800mm
Machine Weight 1100 kg
Programmable Yes (via HMI)
Preset Programs 200 models
Direction Adjustment 3 directions
Surface Treatment Vertical bright / Transition matte / Two-way bright
Warranty 12 months
Certifications CE, FCC, ROHS
About SUNHOPE

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.

Core Services & Capabilities
  • Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
  • Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
  • Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
  • Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
Why Partner with SUNHOPE?
  • Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
  • Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
  • Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
  • True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
