Semi Automatic 220V Hydraulic Press Machine 8pcs Cylinders

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Core Size 1000*900*56mm Workstation 2
Indenter Width 20/30/40mm Air Pressure Requirements 0.8Mpa
Voltage, Power 220V/50Hz,2.5kw Production Efficiency 60sec.
High Light

8pcs Cylinders radiator production line

,

8pcs Cylinders hydraulic press machine

,

220V hydraulic press machine

Leave a Message
Product Description

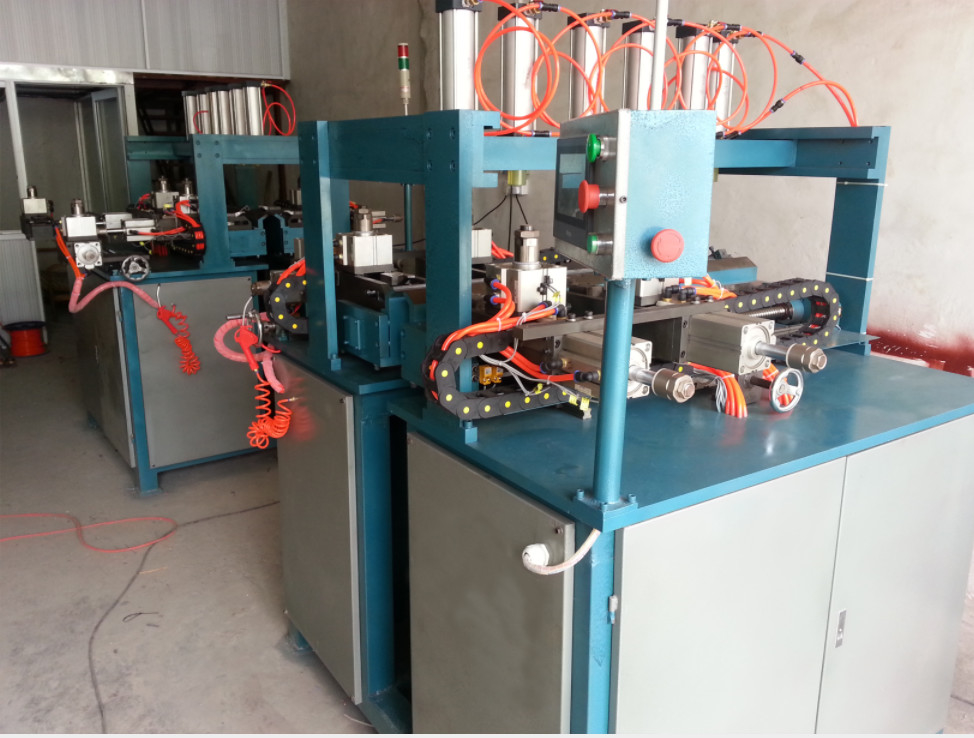

8 Cylinders semi automatic radiator plastic tank press machine
Production introduction:
It is suitable for the installation of 8 Cylinders semi automatic radiator plastic tank press machine with small number of single model
Daily maintenance is simple
The side end needs to be manually pressed after the core is removed
Different width of tab pressing plate can be selected
The stroke and force of the manipulator can be adjusted manually according to the needs



Product advantages:
1. It is suitable for the installation of water chamber with small number of single model
2. The working position and operating tools can be adjusted manually according to the water chamber structure
3.Daily maintenance is simple
4. Simple operation, workers only need a short period of training to operate
5.The side end needs to be manually pressed after the core is removed
6. Different width of tab pressing plate can be selected,



Products quick details:

warranty12 monthsbrand nameSUNHOPE
usageautomobileSurface treatmentvertical bright, transition matte or two-way bright
mouldcan customiseshapeunregular
design stylecan customiseafter-sale serviceyes
OEMwelcomeIndenter width20/30/40mm
Driving modePneumaticsAir pressure requirements0.8Mpa
Number of cylinders6--8Voltage, power220V/50Hz,2.5kw
Core size1000*900*56mmrunning speedadjustable
Workstation2production efficiency60sec.
Maximum size of head plate120mmNumber of preset modelsNon.
Machine dimensions1300*1200*1800Direction adjustment3 direction
Machine weight800kgProgrammableNon.





Semi Automatic 220V Hydraulic Press Machine 8pcs Cylinders 0Semi Automatic 220V Hydraulic Press Machine 8pcs Cylinders 1



About us:
1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year


     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

    If you are interested in setting up a radiator factory in your place or buying any products, please contact us and we will provide you with the best service and best price.

FAQ:

1..How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.

2. Automatic crimping machine and semi automatic crimping machine,which one is better?
Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,
semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.

3.How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.

4.Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.
