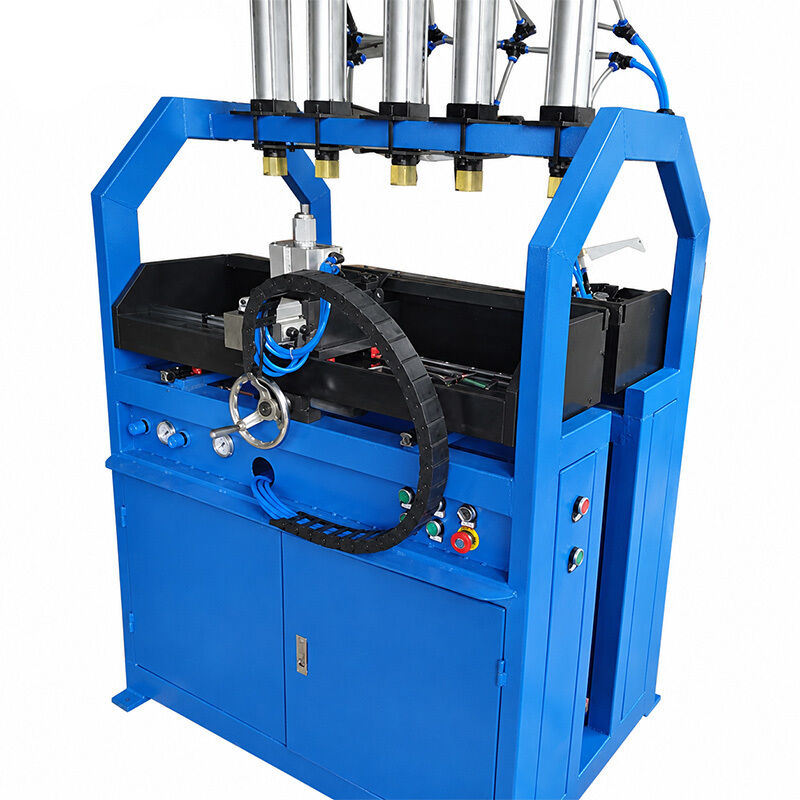

Automatic Radiator Clinching Machine for Plastic Tank Crimping | PLC Control

The Automatic Radiator Clinching Machine is designed for assembling plastic tanks onto automotive radiator cores. It crimps the header plate teeth around the tank and gasket, helping secure the components and achieve reliable sealing when properly matched and assembled.

Featuring PLC control and a touchscreen interface, the machine allows operators to adjust crimping parameters, store programs, and monitor operating status. Its servo-pneumatic drive system and stepping crimping method support controlled operation during radiator assembly.

With a specified radiator height range of 350–950 mm and width range of 100–800 mm, this radiator tank crimping machine is suitable for manufacturers handling different radiator sizes. Compatibility should be confirmed according to the header plate design, crimping requirements, and tooling configuration.

• PLC Touchscreen Control: Allows operators to adjust crimping parameters, store programs, and monitor machine operation.

• Four-Side Crimping Design: Designed to process all four sides of the radiator header plate within one operating cycle.

• Servo-Pneumatic Drive: Provides controlled movement for the crimping process.

• Flexible Radiator Sizing: Supports radiator heights of 350–950 mm and widths of 100–800 mm.

• Stepping Crimping Method: Supports controlled positioning during header plate crimping.

This plastic tank crimping machine is used in automotive radiator assembly, where the plastic tank, gasket, and header plate must be properly fitted and secured. Correct crimping helps maintain the integrity of the assembled joint.

Before selecting a machine, manufacturers should evaluate radiator dimensions, header plate geometry, tooth configuration, gasket requirements, and tooling compatibility. These factors help determine whether the machine is suitable for a particular radiator model.

With more than 15 years of industry experience, SUNHOPE supplies complete equipment, components, and technical support for radiator and condenser manufacturing.

Our product range includes:

• Radiator Core Assembly Machines

• Fin Forming Machines

• Aluminum Brazing Furnaces

• Leak Testing Equipment

• Radiator and Condenser Components

In addition to equipment supply, we provide installation guidance, operator training, and technical support to help customers establish efficient and reliable production lines.

Whether you are building a new factory or upgrading an existing line, SUNHOPE can provide a complete radiator manufacturing solution tailored to your needs.

1. What is a radiator clinching machine used for?

A radiator clinching machine crimps the header plate teeth around the plastic tank and gasket to secure the radiator assembly and help maintain a reliable seal.

2. What radiator sizes does this machine support?

The specified radiator height range is 350–950 mm, and the width range is 100–800 mm. Confirm the dimensions and tooling requirements of your radiator before ordering.

3. What are the benefits of PLC control?

The PLC touchscreen allows operators to adjust crimping parameters, store programs, and monitor operating status, helping maintain process consistency across production runs.

4. What is the machine's production capacity?

The stated production capacity is approximately 24 radiator cores per hour. Actual output depends on radiator specifications, setup, and operating conditions.

5. Can the machine process different radiator models?

Program adjustment can support different production requirements, but compatibility depends on radiator dimensions, header plate geometry, tooth configuration, and tooling. These details should be confirmed before purchase.

6. What information is needed to select a suitable machine?

Provide radiator dimensions, header plate drawings or photos, tooth configuration, and expected production capacity. This information helps assess machine compatibility and configuration requirements.

7. Does SUNHOPE provide installation and technical support?

Yes. SUNHOPE provides installation guidance, operator training, and technical support for radiator and condenser manufacturing equipment.
