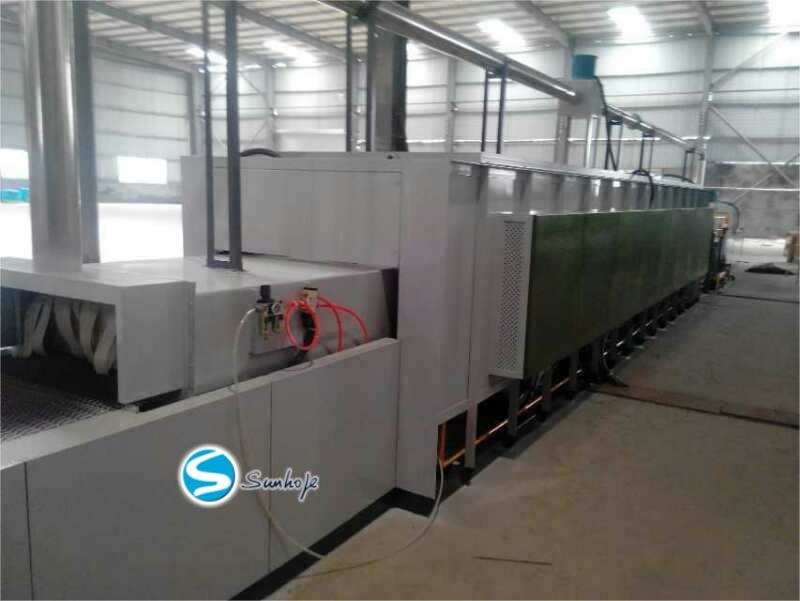

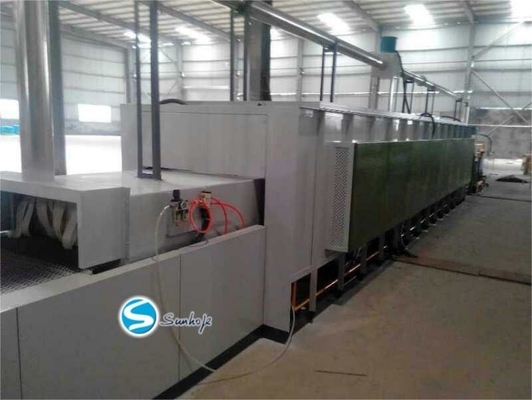

AC380V 45KW Drying Zone Aluminum Brazing Furnace With Radiant Tube Heating

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10/set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Temperature Accuracy ±3℃ Material Stainless Steel
Face Height Of Mesh Belt 900mm Maximum Height Of Workpiece 250mm
Nitrogen Consumption About 35~45m 3/h Rated Power Of Drying Zone 103.45KW
Size Customized Heating Temperature 600-650℃
High Light

45KW Drying Zone Aluminum Brazing Furnace


Aluminum Brazing Furnace Radiant Tube Heating

Leave a Message
Product Description

Aluminum Brazing Furnace with Radiant Tube Heating & AC380V Power Supply, 103.45KW Rated Power of Drying Zone

Product Description:

The Aluminum Brazing Furnace is an advanced equipment designed to deliver high performance and reliable aluminum brazing. It is customizable in size and equipped with a three-phase 50HZ power supply capable of providing AC380V. It is designed with PLC control to ensure consistent and precise heating temperature ranging from 600-650℃. It also features a radiantor tube heating system that works with nitrogen to provide an efficient and reliable brazing environment. The Nitrogen consumption of the Aluminum Brazing Furnace is about 35~45m3/h. It has four sections to control the temperature and spray drying air cooling area for efficient aluminum brazing. The Nitrogen protection helps to maintain the optimum temperature for aluminum brazing up to 650-700 degree.



  • Product Name: Aluminum Brazing Furnace
  • Face height of mesh belt: 900mm
  • Maximum height of workpiece: 250mm
  • Cooling Method: Air Cooling
  • Heating Temperature: 600-650℃
  • Power Supply: AC380V
  • Radiantor Tube Heating: Nitrogen Consumption
  • Power Supply: Three Phase 50HZ


The Sunhope Aluminum Brazing Furnace is an ideal choice for nitrogen protection aluminum brazing. The furnace is equipped with four sections, allowing for a temperature range of 650-700 degree, and is designed with a spray drying and air cooled area for maximum efficiency. With a rated power of 103.45KW and a face height of the mesh belt of 900mm, and a maximum height of workpiece of 250mm, this furnace is highly customizable and is suitable for various applications. The furnace also adopts air cooling method for optimal performance.


Technical Parameters:

Parameter Details
Heating Method Radiant Tube Heating
Material Stainless Steel
Nitrogen consumption About 35~45m3/h
Temperature Accuracy ±3℃
Heating Time 2-3min
Heating Temperature 600-650℃
Cooling Method Air Cooling
Size Customized
Maximum height of workpiece 250mm
Face height of mesh belt 900mm
Four Sections Aluminum Brazing Furnace 650-700 Degree
Spray Drying Air Cooling Area
Aluminium Brazing Furnace Radiantor Tube Heating Nitrogen Consumption Three Phase 50HZ


Sunhope Aluminum Brazing Furnace
  • Brand Name: Sunhope
  • Place of Origin: Guangdong,China
  • Heating Time: 2-3min
  • Rated power of Drying zone: 103.45KW
  • Heating up time: 0.5-1h
  • Heating Temperature: 600-650℃
  • Control System: PLC Control
  • Nitrogen Protection: Nitrogen protection aluminum Brazing furnace
  • Heating Type: Aluminium Brazing Furnace Radiantor Tube Heating Nitrogen Consumption Three Phase 50HZ
  • Maximum Height: 250mm Maximum Height Aluminum Radiator Brazing Furnace
  • Nitrogen Consumption: 35~45m 3/H Nitrogen Consumption

Support and Services:

Aluminum Brazing Furnace Technical Support and Service

We offer comprehensive technical support for our Aluminum Brazing Furnaces. Our skilled technicians are available to answer any questions or troubleshoot any issues you may have. We also provide a full range of preventive maintenance services to keep your Aluminum Brazing Furnace running smoothly.

Our technical support team is available 24/7 and can be reached by phone, email, or live chat. We also offer a wide variety of online resources, including tutorials and user manuals, to help you get the most out of your Aluminum Brazing Furnace.

Our experienced technicians can also provide on-site services, including installation, repair, and calibration. We also offer custom services to meet your specific needs. We are committed to providing the highest quality service and support for our Aluminum Brazing Furnaces.
