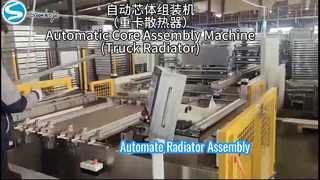

aluminium radiator production line

Other Videos
April 25, 2023
Category Connection: Radiator Core Builder Machine
Chat Now Contact Us
Tags:
#Sunhope Radiator Core Builder Machine #8mm fin Radiator Core Builder Machine #5mm fin core assembly machine
Brief: Discover the Fin 8+Tube 2mm Radiator Core Builder Machine, a PLC-controlled fin brazing furnace designed for efficient radiator core assembly. This machine ensures smooth operation, fast assembly, and precise dimensions, making it ideal for high-quality radiator production.
Related Product Features:
  • PLC-controlled for precise and automated operation.
  • Assembles head plate, fin, and side plate into a radiator core in one step.
  • Adjustable tube and fin sizes to meet customer specifications.
  • Core height range from 300mm to 850mm for versatile applications.
  • Pneumatic components with mechanical execution for reliable performance.
  • Single-phase 220V power supply with low energy consumption.
  • Diagonal error ±1.5mm and core height error ±1mm for high accuracy.
  • Maximum core width of 850mm with 85 teeth arrangement.
Faqs:
  • What is the maximum size of the core that can be assembled by the semi-automatic core building machine?
    The maximum size of the core that can be assembled is 1200x1200mm, suitable for two rows.
  • Can the machine assemble the same height of fins in both radiator and condenser cores?
    No, due to significant differences between radiator and condenser tubes, the machine cannot be used for both types interchangeably.
  • What power supply is required for the machine?
    The machine operates on a single-phase 220V 50Hz power supply with a consumption of 0.5kW.
