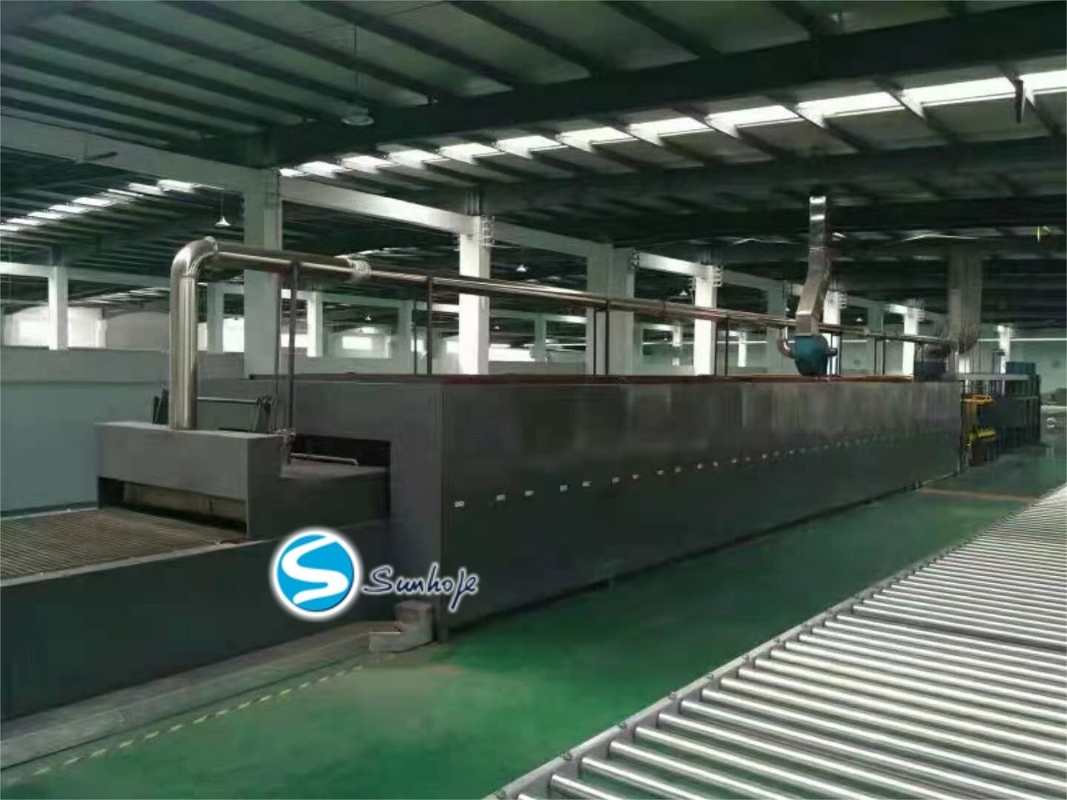

Three Phase 50HZ Aluminium Brazing Furnace With Maximum Workpiece Height 250mm

  • Three Phase 50HZ Aluminium Brazing Furnace With Maximum Workpiece Height 250mm
  • Three Phase 50HZ Aluminium Brazing Furnace With Maximum Workpiece Height 250mm
Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10/set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Heating Time 2-3min Face Height Of Mesh Belt 900mm
Nitrogen Consumption About 35～45m 3/h Mesh Belt Transmission Speed 200—1500mm/min (Continuously Adjustable )
Maximum Height Of Workpiece 250mm Control System PLC Control
Rated Power Of Drying Zone 103.45KW Material Stainless Steel
High Light

Three Phase Aluminium Brazing Furnace

,

250mm Workpiece Aluminium Brazing Furnace
Leave a Message
Product Description

Aluminium Brazing Furnace with Maximum Workpiece Height of 250mm, Three Phase 50HZ, Radiantor Tube Heating, Nitrogen Con

Product Description:

Aluminum Brazing Furnace is a continuous tunnel type natural gas brazing oven. It uses radiant tube heating method with temperature accuracy of ±3℃ and heating time of 2-3min. It also features four sections with mesh belt transmission speed adjustable from 200 to 1500mm/min. The maximum height of workpiece is 250mm and the temperature range is from 650 to 700 degrees. It runs on three phase 50HZ power and nitrogen consumption is required. In addition, it features spray drying and air cooling area.



Features:

  • Product Name: Nitrogen protection aluminum Brazing furnace
  • Cooling Method: Air Cooling
  • Temperature Accuracy: ±3℃
  • Power Supply: AC380V
  • Nitrogen consumption: About 35～45m 3/h
  • Rated power of Drying zone: 103.45KW
  • Maximum Height of Aluminum Radiator: 250mm


Applications:

Sunhope Aluminum Brazing Furnace is designed to provide continuous tunnel type natural gas brazing oven for industrial production, which is made of stainless steel and can be customized for size. This brazing furnace utilizes radiantor tube heating, with nitrogen consumption of about 35～45m 3/h and power supply of AC380V, three-phase 50HZ. The mesh belt transmission speed is adjustable between 200-1500mm/min. Moreover, this aluminum brazing furnace is produced in Guangdong,China.



Technical Parameters:

Attribute Description
Maximum height of workpiece 250mm
Cooling Method Air Cooling
Face height of mesh belt 900mm
Heating Temperature 600-650℃
Material Stainless Steel
Control System PLC Control
Heating Method Radiant Tube Heating
Size Customized
Heating up time 0.5-1h
Rated power of Drying zone 103.45KW
Keywords Aluminium Brazing Furnace, Radiantor Tube Heating, Nitrogen Consumption, Three Phase 50HZ, Continuous tunnel type Natural gas brazing oven, Nitrogen protection aluminum Brazing furnace.


Customization:

Sunhope Aluminum Brazing Furnace

Sunhope Aluminum Brazing Furnace is a continuous tunnel type Natural gas brazing oven with four sections, which is designed for 650-700 degree aluminum brazing. It is made in Guangdong, China, and has the temperature accuracy of ±3℃. The rated power of drying zone is 103.45KW, while the nitrogen consumption is about 35～45m 3/h. The size and face height of mesh belt can be customized.



Support and Services:

Aluminum Brazing Furnace Technical Support and Service

We offer technical support and service for our Aluminum Brazing Furnaces. Our experienced team of technicians are available to answer any questions you have about our products and provide assistance with troubleshooting and repairs. We are dedicated to ensuring that your Aluminum Brazing Furnace operates smoothly and efficiently.

Services Include:
  • 24/7 phone and email support
  • On-site service and repairs
  • Preventive maintenance
  • Troubleshooting and diagnostics
  • Installation and commissioning

For more information about our Aluminum Brazing Furnace technical support and service, please contact us today.
