Four Sections Aluminum Brazing Furnace 650-700 Degree Spray Drying Air Cooling Area

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Dimension(L*W*H) Custom Made Mesh Belt Operating Surface Height 900mm
Cooling Method Water Cooling Or Air Cooling Heating Element Resistance Wire
Energy Medium Electricity
High Light

Four Sections Aluminum Brazing Furnace


700 Degree Aluminum Brazing Furnace

Leave a Message
Product Description

Spray Area Drying Area Brazing Area Air Cooling Area Four Sections of Aluminum Brazing Furnace 650-700 degree


Product introduction about the Brazing Furnace:


The brazing zone includes preheating chamber, heating chamber, retarded cooling chamber and air cooling chamber, etc.


Controlled atmosphere aluminum furnace system includes:

Spray zone, drying zone, brazing zone, cooling zone, central centralized control cabinet group and other parts,etc.


Controlled atmosphere aluminum brazing furnace system, mainly used for aluminum radiator, oil cooler, inter-cooler, heater, tube-fin condenser,the evaporator, parallel flow condenser, laminated evaporator, power station air cooler and other aluminum work-piece products that can continuously brazed in a nitrogen atmosphere.



Product features about the Brazing Furnace:


  • Adoption of advanced frequency conversion speed control conveyor belt control system, so that the work-piece can achieve step-less variable transmission, precisely control the running time of work-piece in each heating zone, to ensure that the aluminum brazing heating curve accurately achieve;


  • Setting up the device of Spray zone is simple and is easy to use as well.The nozzle can ensure that the flux of brazing parts spray sufficient and uniform;The air blower ensures that the excess flux sprayed on the brazed parts is blown off clean.


  • The heating power of drying zone is strong and has high circulation wind speed in the furnace so that can ensure the work-piece into the brazing furnace dry thoroughly without residual moisture.


  • Adopting the patented energy-saving technology that developed independently by our company, the nitrogen usage amount and total power of the equipment can be reduced by 40%-50% compared with similar products


Product parameter about the Brazing Furnace:


  Mesh belt operating surface height   900mm
   Heating up time    3h(Related to the production environment)
   Nitrogen consumption    About 35~45m 3/h
    Maximum service temperature    700℃
  Normal operating temperature    600~650℃
  Effective working size    1000mm(Mesh belt width)×250mm(Height of mesh belt)
  The channel size    1050mm×300mm(Straight edge height)
   Temperature control zone    6 points in Section 6 of Section 3 (temperature       measurement)
   Temperature measuring point layout    The upper and lower of each section + furnace temperature  measurement
    conveying chain    SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm

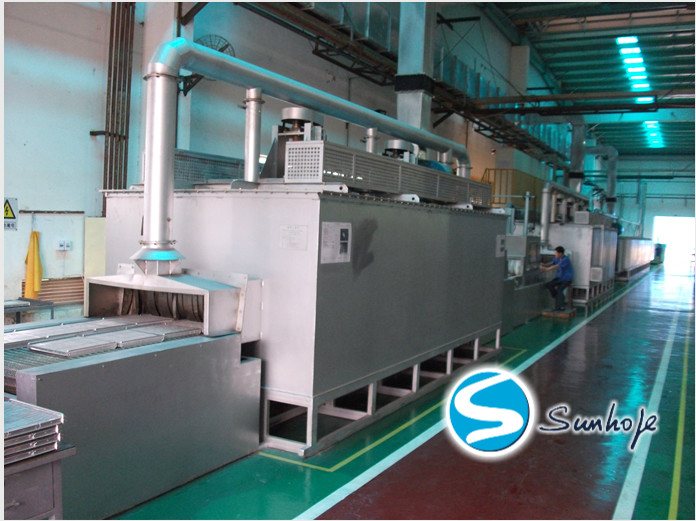

Four Sections Aluminum Brazing Furnace 650-700 Degree  Spray Drying Air Cooling Area 0


About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

    With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





1.Does the aluminum Brazing furnace machine is customized or standard size?

The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.



2.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?

The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.


3.What’s the style of spray of the aluminum Brazing furnace machine?

The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.
