Aluminum Clinching Four Sides Radiator Making Machine Fully Automatically

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Cylinders 8 Machine Dimensions 1800*1600*1800mm
Indenter Width 20/30/40mm Air Pressure Requirements 0.8Mpa
Voltage, Power 220V/50Hz,2.5kw
High Light

Four Sides Radiator Making Machine

,

Aluminum Clinching Radiator Making Machine

,

Radiator Making Machine Fully Automatically

Leave a Message
Product Description

Aluminum Clinching Four Sides Fully Automatically Radiator Making Machine Maximum Core Size 900*900



Product advantage of Radiator Making Machine :

This Radiator Making Machine is a pneumatic radiator manufacturing machine with servo motor, suitable for mass production of single model products. The working speed is fast and the operation is simple.

PLC controller can edit and store the working program of 200 types of plastic radiator tank. Aluminum radiator plastic tank crimping riveting machine is used to crimp header plate teeth and lock the plastic tank on the core. There is a sealing space between the crimping plastic tank, the sealing gasket and the header plate.





Product parameters of Radiator Making Machine:

      Programmable      available
       Number of cylinders      8
      Core size      1000*900*56mm
      Workstation

     3

      Maximum size of head plate     150mm
      Machine dimensions     1800*1600*1800mm
     Indenter width      20/30/40mm
    Air pressure requirements     0.8Mpa
     Voltage, power      220V/50Hz,2.5kw
    Running speed      adjustable
    Production efficiency      60-80sec.







Product Application of Radiator Making Machine:

It is suitable for crimping all kinds of products. Radiator crimping machine is divided into long side head crimping mechanism and end crimping mechanism. Both long and short side headers are crimped through a machine cycle.

The main plate on the radiator core body, the sealing gasket and the plastic tank are combined together, and the claw teeth on the main plate are bent and the edge feet of the plastic tank are tightly hooked, so that the plastic tank and the core body are closely integrated to form a closed container.





Product Features of Radiator Making Machine

The imported touch screen and PLC system are used to display and set the working state of the equipment (cloth distance and forward speed, etc.), and 250 kinds of data parameters can be stored, which can be called arbitrarily. It is especially suitable for various kinds of workpieces. The equipment adopts servo motor and servo driver imported from Taiwan to drive ball screw. Drive and control the clamping mechanism to make it step along the linear guide. The equipment is divided into long side buckle press and short side buckle press. When the buckle press acts, it can avoid and move forward according to the shape of the water chamber of the workpiece.

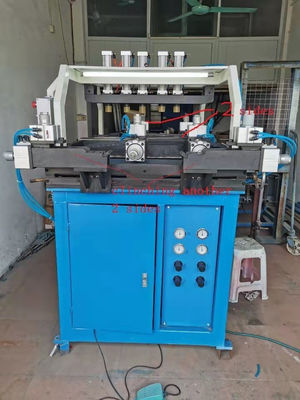

Aluminum Clinching Four Sides Radiator Making Machine Fully Automatically 0











Introduction of our company:

     With our understanding of the industry, we have been helping foreign customers to set up radiator factories in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process. At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products. If you are interested in setting up a radiator factory in your place, please contact us and we will provide you with the best service.



FAQ:

1. Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.

2. How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A. The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
