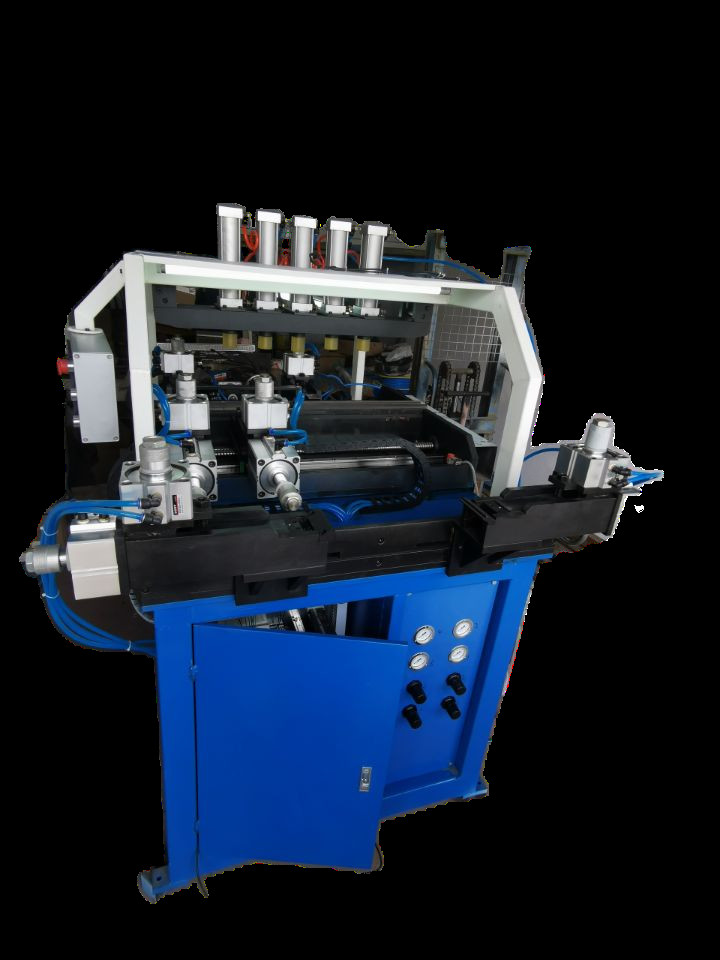

Tank Crimping Machine Aluminum Radiator Plastic Making Machine For Auto Industry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xNumber Of Cylinders | 6--7 | Machine Weight | 1200kgs |
---|---|---|---|
Place Of Origin | Foshan China | Core Components | PLC, Motor |
Color | Blue | After Warranty Service | Online Support |
High Light | Auto Industry Radiator Making Machine,Semi Automatic Radiator Crimping Machine,Car Aluminum Radiator Making Machine |
Product introduction of Radiator Making Machine:
Semi Automatic Radiator Crimping Machine connects the plastic water chamber and the radiator core closely through the air cylinder drive to ensure that the coolant circulates in the radiator, which is the last process to complete the radiator manufacturing. The equipment is divided into manual, semi-automatic and automatic models is the necessary production equipment for aluminum plastic radiator factory. The equipment is divided into manual, semi-automatic and automatic models. At present, the manual ones in the market are basically eliminated.
Product quick details of Radiator Making Machine:
Programmable | available | Machine weight | 1100kgs |
warranty | 12 months | brand name | SUNHOPE |
mould | can customise | shape | unregular |
Driving mode | Servo pneumatic | Indenter width | 20/30/40mm |
Number of cylinders | 8--12 | Air pressure requirements | 0.8Mpa |
Core size | 1000*900*56mm | Voltage, power | 220V/50Hz,2.5kw |
Workstation | 4 | running speed | adjustable |
Maximum size of head plate | 120mm | production efficiency | 60-80 |
Machine dimensions | 1800*1600*1800mm | Number of preset models | 200models |
OEM | welcome | Direction adjustment | 3 direction |
Product features of Radiator Making Machine:
It is suitable for the production mode of single model and quantity production quantity.More than 200 models can be set for positioning press production. It does not need to be pressed by hand, and can press the tab on the four sides of the core at the same time. High production efficiency and high speed.
About us:
1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1. Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.
2. How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A. The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B. The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C. The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.
3. Automatic crimping machine and semi automatic crimping machine,which one is better?
Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,
semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.
4. How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.
