Max Height 950mm Auto Plastic Water Tanks Crimping Machine Radiator Tank Clinching Machine

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Air Pressure Requirements 0.8Mpa Indenter Width 20/30/40mm
Voltage, Power 220V/50Hz,2.5kw Machine Dimensions 1800*1600*1800mm
Direction Adjustment 3 Direction
High Light

Auto Plastic Water Tanks Crimping Machine


Height 950mm Water Tanks Crimping Machine

Leave a Message
Product Description

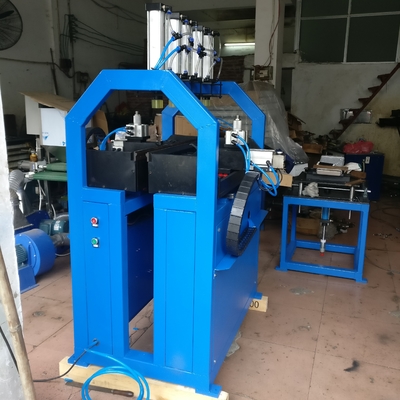

Max height 950mm Auto Plastic Water Tanks Crimping Machine Radiator Tank Clinching Machine
Product quick details:

ProgrammableavailableMachine weight1100kgs
warranty12 monthsbrand nameSUNHOPE
mouldcan customiseshapeunregular
Driving modeServo pneumaticIndenter width20/30/40mm
Number of cylinders8--12Air pressure requirements0.8Mpa
Core size1000*900*56mmVoltage, power220V/50Hz,2.5kw
Workstation4running speedadjustable
Maximum size of head plate120mmproduction efficiency60-80
Machine dimensions1800*1600*1800mmNumber of preset models200models
OEMwelcomeDirection adjustment3 direction
usagefor clinching the tank

Customer Service

  • Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  • Your inquiry related to our products or price will be replied in 24hrs.
  • Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  • one-year warranty
  • Buyer can dispatch technician to our factory for free training before delivery.
  • For essential equipment failure, we will arrange our engineer head to local site to help trouble shooting, also provide online technical support for the whole life.

Product Application
The radiator water tank riveting machine is used to crimp the teeth of the header plate to lock the plastic water tank on the core. Combine the radiator core main board, sealing ring and plastic water chamber together. This servo-type plastic can buttoning machine is used to process products of various specifications. The crimping group worked step by step. Water tank crimping machine is also called crimping machine, water tank crimping machine, radiator water tank crimping machine, plastic water tank crimping machine, etc.
Max Height 950mm Auto Plastic Water Tanks Crimping Machine Radiator Tank Clinching Machine 0
About us:
     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
1.Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.
2.How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.
3. Automatic crimping machine and semi automatic crimping machine,which one is better?
Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.
