Servo Pneumatic 200 Models Radiator Making Machine With Workingstation

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Driving Mode Servo Pneumatic Machine Dimensions 1800*1600*1800mm
Indenter Width 20/30/40mm Air Pressure Requirements 0.8Mpa
Voltage, Power 220V/50Hz,2.5kw Number Of Preset Models 200models
High Light

Servo pneumatic Radiator Making Machine


200 models Radiator Making Machine


Servo pneumatic radiator production line

Leave a Message
Product Description

Automatic radiator for high end radiator tank press machine with adjustable workingstation

Product introduction:

    This machine is a pneumatic radiator manufacturing machine with servo motor, suitable for mass production of single model products. The working speed is fast and the operation is simple. PLC controller can edit and store the working program of 200 types of plastic radiator tank. Aluminum radiator plastic tank crimping riveting machine is used to crimp header plate teeth and lock the plastic tank on the core. There is a sealing space between the crimping plastic tank, the sealing gasket and the header plate. It is suitable for crimping all kinds of products. Radiator crimping machine is divided into long side head crimping mechanism and end crimping mechanism. Both long and short side headers are crimped through a machine cycle.



Product advantages:

A.Simple operation,workers only need a short time period of training to operate.

B.Different width of tab pressing plate can be selected.

C.The stroke and the force of the manipulator can be adjusted manually according to the needs.



Product quick details:

Programmable available Machine weight 1100kgs
warranty 12 months brand name SUNHOPE
usage automobile tank Surface treatment vertical bright, transition matte or two-way bright
mould can customise shape unregular
Driving mode Servo pneumatic Indenter width 20/30/40mm
Number of cylinders 8--12 Air pressure requirements 0.8Mpa
Core size 1000*900*56mm Voltage, power 220V/50Hz,2.5kw
Workstation 4 running speed adjustable
Maximum size of head plate 120mm production efficiency 60-80
Machine dimensions 1800*1600*1800mm Number of preset models 200models
OEM welcome Direction adjustment 3 direction

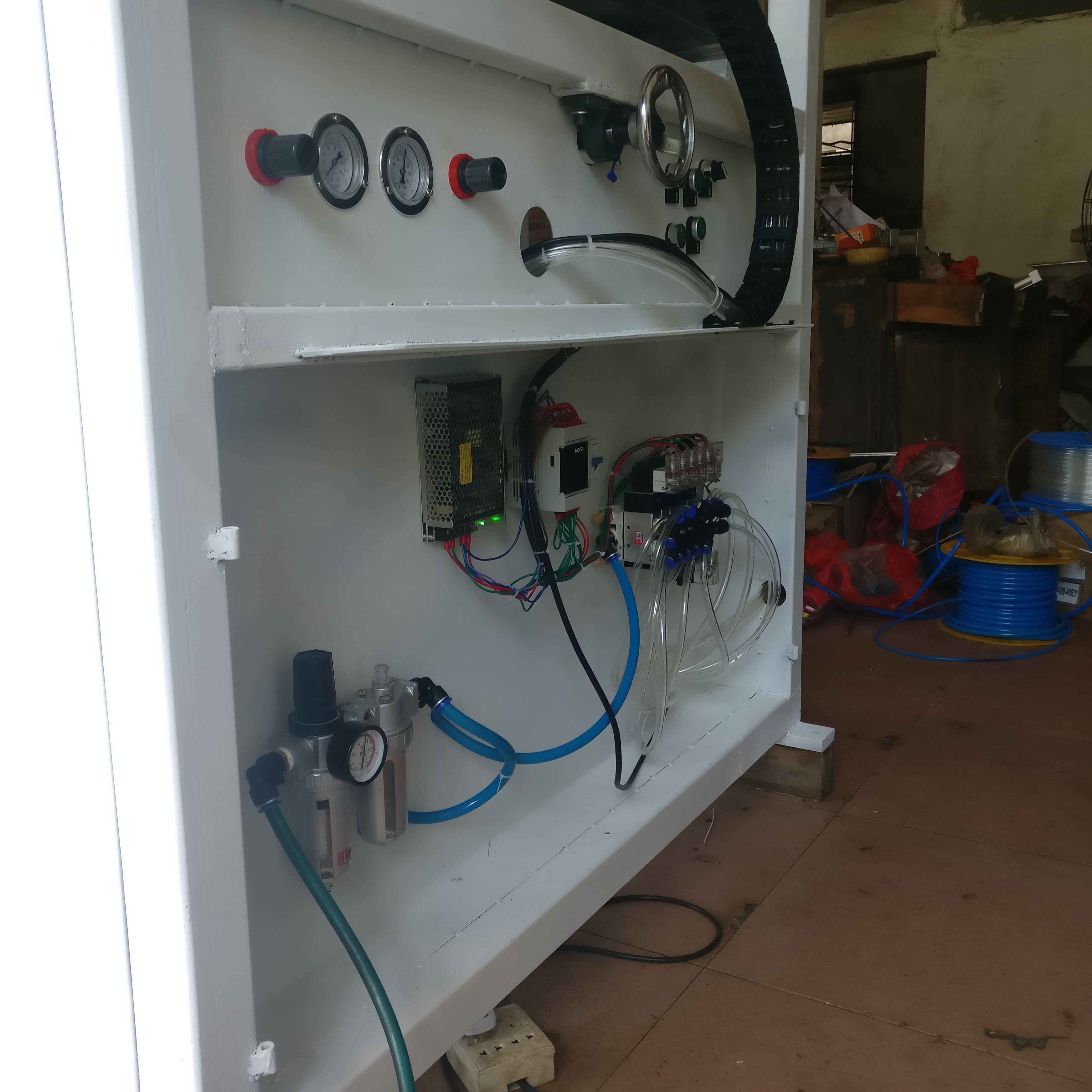

Servo Pneumatic 200 Models Radiator Making Machine With Workingstation 0Servo Pneumatic 200 Models Radiator Making Machine With Workingstation 1




About us:

    Foshan Sunhope company is located in the beautiful Foshan city,which was founded in 2011.The main products are radiator crimping machine,core builder machine, radiator fin forming machine,ultrasonic cleaning machine,vacuum plastic packaging machines,aluminum cooling system brazing furnace,Air tightness testing machine for condenser radiator,aluminum foil for radiator fin,aluminum sheet for radiator head plate,aluminum radiator componets headplate,punching and shearing oil,aluminium flux.


1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year


   If you are interested in setting up a radiator factory in your place, please contact us and we will provide you with the best service and best price.





1.How many types of automatic crimping machine?what ‘s the features of it ?

We can divide them into three types.

A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.

B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.

C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.


2.Is it convenient for workers to operate the semi automatic crimping machine?

The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.


3.How many models type can automatic crimping machine system store?

Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.
