250mm Aluminum Brazing Furnace | Continuous Radiant Heating Furnace

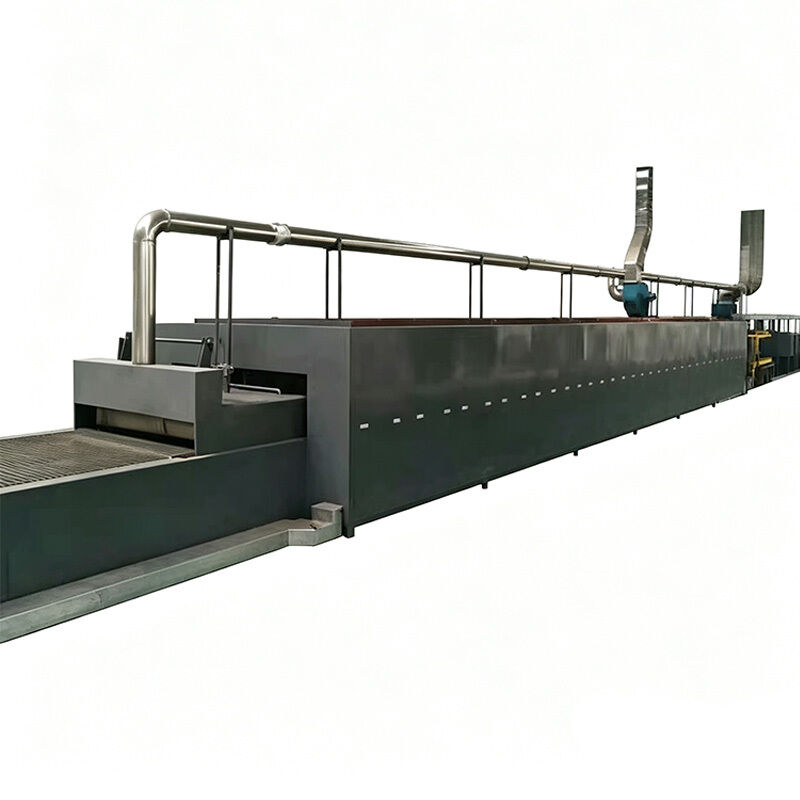

The 250mm Aluminum Brazing Furnace is a continuous tunnel-type furnace designed for efficient aluminum brazing of radiator cores, condenser cores, heat exchangers, and other aluminum components.

The furnace uses radiant tube heating to provide stable temperature control with an accuracy of ±3°C. Its four-section design integrates heating, spray drying, brazing, and air cooling into a continuous production process, reducing manual handling and supporting consistent brazing quality.

With a maximum workpiece height of 250 mm, an operating temperature of 650–700°C, and an adjustable mesh belt speed of 200–1500 mm/min, the furnace can be configured for different workpiece sizes and production requirements.

A PLC control system, stainless steel construction, and nitrogen-protected brazing atmosphere make it suitable for continuous industrial production.

Radiant tube heating and PLC control maintain a stable temperature with ±3°C accuracy, helping achieve consistent brazing results.

The mesh belt speed can be adjusted from 200 to 1500 mm/min to match different production rates and workpiece requirements.

Heating, spray drying, brazing, and air cooling are combined in one continuous system for a smoother production workflow.

Suitable for automotive radiators, condensers, heat exchangers, and aluminum radiator cores.

The stainless steel structure is designed for continuous operation, while furnace dimensions and configuration can be customized according to production requirements.

The furnace is suitable for:

• Automotive radiator cores
• Aluminum condenser cores
• Heat exchangers
• Plate-fin heat exchangers
• Other aluminum brazing components

It can be configured according to workpiece dimensions, production capacity, brazing requirements, and factory layout.

SUNHOPE provides technical support from equipment installation to daily operation, including:

• Installation and commissioning
• Operator training
• Troubleshooting and diagnostics
• Preventive maintenance support
• On-site service and repair
• Phone and email technical support

With more than 15 years of industry experience, SUNHOPE supplies complete equipment, components, and technical support for radiator and condenser manufacturing.

Our product range includes:

• Radiator Core Assembly Machines
• Fin Forming Machines
• Aluminum Brazing Furnaces
• Leak Testing Equipment
• Radiator and Condenser Components

More than a single machine supplier, SUNHOPE can support customers with a complete radiator manufacturing solution. We provide equipment selection, installation guidance, operator training, and technical support to help customers build efficient and reliable production lines.

Whether you are starting a new radiator factory or upgrading an existing production line, we can customize the solution according to your products, capacity, and factory requirements.

It is designed for continuous aluminum brazing of radiator cores, condenser cores, heat exchangers, and other aluminum components.

The maximum workpiece height is 250 mm.

The operating temperature range is 650–700°C, with temperature accuracy of approximately ±3°C.

Yes. The mesh belt speed can be adjusted from 200 to 1500 mm/min according to production requirements.

Yes. Nitrogen is used to provide the required brazing atmosphere. Typical consumption is approximately 35–45 m³/h.

Yes. SUNHOPE can customize the furnace size, configuration, mesh belt specifications, and production requirements according to the customer's application.

Yes. SUNHOPE provides installation and commissioning guidance, operator training, troubleshooting, and technical support.

Yes. The furnace can be combined with core assembly machines, fin forming machines, leak testing equipment, and other radiator manufacturing equipment to build a complete production line.
