250mm Height 500mm/min Aluminum Brazing Furnace for Radiator & Condenser Manufacturing
  • 250mm Height 500mm/min Aluminum Brazing Furnace for Radiator & Condenser Manufacturing
  • 250mm Height 500mm/min Aluminum Brazing Furnace for Radiator & Condenser Manufacturing
  • 250mm Height 500mm/min Aluminum Brazing Furnace for Radiator & Condenser Manufacturing

250mm Height 500mm/min Aluminum Brazing Furnace for Radiator & Condenser Manufacturing

Place of Origin Guangdong,China
Brand Name Sunhope
Product Details
Heating Method:
Electricity
Maximum Usable Height Above Mesh Belt:
250 Mm
Mesh Belt Speed Range:
200 - 1000 Mm/min
Recommended Working Speed:
500 Mm/min
Mesh Belt Width:
1000 Mm
Loading Surface Height:
850 Mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
wooden case with safty packing material
Delivery Time
60 days
Payment Terms
L/C,T/T
Supply Ability
10 set/per month
Product Description
250mm Height 500mm/min Aluminum Brazing Furnace for Radiator & Condenser Manufacturing
250mm Height 500mm/min Aluminum Brazing Furnace for Radiator & Condenser Manufacturing
Aluminum Brazing Furnace for Radiator & Condenser Manufacturing
Product Description

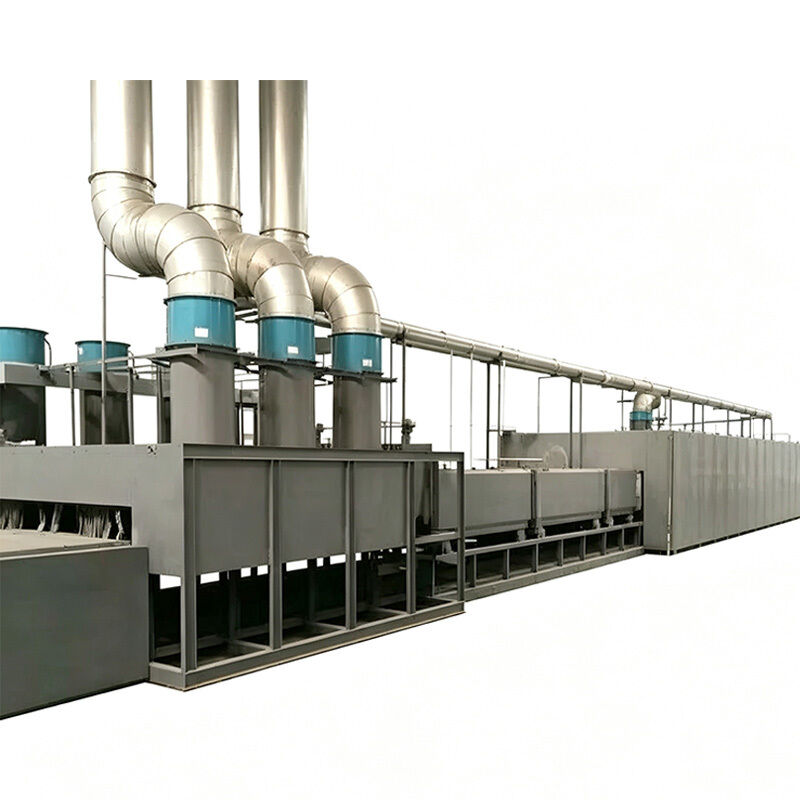

SUNHOPE Aluminum Brazing Furnace is a high-efficiency continuous brazing system specially designed for aluminum radiator, condenser, and heat exchanger manufacturing.

With advanced resistance heating technology, nitrogen protective atmosphere control, and optimized furnace sealing design, this furnace provides stable temperature uniformity, excellent brazing quality, and reliable long-term operation for industrial production lines.

The furnace supports a maximum usable product height of 250mm and mesh-belt speeds up to 1000mm/min, making it suitable for high-volume radiator and condenser production. Its customizable structure allows integration into different manufacturing requirements, from new factory setup to existing production line upgrades.

Key Advantages
1. High Efficiency & Long Service Life

The furnace uses a chain-driven stainless steel roller system to transport the high-temperature resistant mesh belt smoothly.

This design reduces mechanical wear, minimizes heat loss, improves energy efficiency, and ensures stable continuous operation in demanding manufacturing environments.

2. Uniform Heating & Stable Brazing Quality

An internal circulation fan ensures consistent temperature distribution inside the furnace chamber.

The protective nitrogen atmosphere is evenly dispersed, improving brazing penetration, joint strength, and overall product reliability.

3. Improved Brazing Surface Quality

The rear exhaust system efficiently removes residual gases generated during the brazing process.

This helps achieve cleaner aluminum surfaces, better appearance, and improved final product quality.

4. Easy Maintenance & Operation

A dedicated slag removal port at the bottom of the furnace allows operators to quickly clean residues and maintain stable furnace performance.

The modular design also simplifies daily inspection and maintenance.

5. Advanced Sealing Technology for Lower Gas Consumption

The optimized furnace door sealing structure reduces protective atmosphere consumption by 55%-65%.

Under stable pressure conditions (≥10-100Pa), it improves atmosphere retention, increases brazing efficiency by 30%-40%, and reduces operating costs.

Technical Parameters
Item Specification
Heating Method Electricity
Maximum Usable Height Above Mesh Belt 250 mm
Mesh Belt Speed Range 200 - 1000 mm/min
Recommended Working Speed 500 mm/min
Mesh Belt Width 1000 mm
Loading Surface Height 850 mm
Rated Power 700 KW
Total Furnace Length Approx. 47 meters
Muffle Length 10 m
Rated Working Temperature 650°C
Cooling Method Water Cooling / Air Cooling
Protective Atmosphere Nitrogen
Voltage Customized According to Requirement
Dimensions Customized
Weight Range 2T - 35T
Certification CE
Warranty 1 Year
After-sales Service Overseas installation and technical support available
Applications
  • Aluminum radiator manufacturing
  • Automotive condenser production
  • Plate-fin heat exchanger production
  • Heavy-duty cooling system manufacturing
  • Industrial heat exchanger production lines
Complete Radiator & Condenser Manufacturing Solutions by SUNHOPE
Why Choose SUNHOPE?

With more than 15 years of industry experience, SUNHOPE supplies complete equipment, components, and technical support for radiator and condenser manufacturing.

Our product range includes:

  • Radiator Core Assembly Machines
  • Fin Forming Machines
  • Aluminum Brazing Furnaces
  • Leak Testing Equipment
  • Radiator and Condenser Components

In addition to equipment supply, we provide installation guidance, operator training, and technical support to help customers establish efficient and reliable production lines.

Whether you are building a new factory or upgrading an existing production line, SUNHOPE can provide a complete radiator manufacturing solution tailored to your needs.

From individual machines to complete production lines, we support customers with reliable equipment, engineering experience, and long-term technical service.

FAQ
1. What products can be manufactured with this aluminum brazing furnace?

This furnace is mainly designed for aluminum radiator cores, automotive condensers, plate-fin heat exchangers, and other aluminum brazed components.

2. What is the maximum product height supported by this furnace?

The maximum usable height above the mesh belt is 250mm, suitable for various radiator and condenser core structures.

3. What protective atmosphere does the furnace use?

The furnace uses a nitrogen protective atmosphere to prevent oxidation and ensure high-quality aluminum brazing results.

4. What is the production speed of this aluminum brazing furnace?

The mesh belt speed range is 200-1000mm/min, with production speed adjustable according to product size and brazing requirements.

5. Can SUNHOPE customize the furnace according to our production requirements?

Yes. SUNHOPE provides customized furnace dimensions, voltage options, cooling methods, and production line integration solutions according to customer requirements.

6. Does SUNHOPE provide installation and after-sales support?

Yes. SUNHOPE provides installation guidance, operator training, and overseas technical support to help customers operate the equipment efficiently.

7. How can this furnace improve production efficiency?

Through uniform temperature control, optimized atmosphere circulation, low gas consumption sealing technology, and stable continuous operation, the furnace helps manufacturers improve brazing quality and production efficiency.
