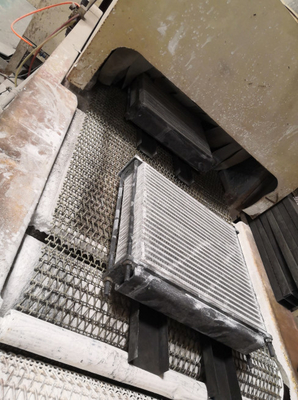

0.5-1h Heating up Time and 2-3min Heating Time Aluminum Brazing Furnace with 316L Stainless Steel Braided Mesh Belt

Product Description:

The Four Sections Aluminum Brazing Furnace is an advanced industrial furnace designed for aluminum brazing applications with precision and efficiency. With a face height of mesh belt measuring 900mm and a maximum height of workpiece capacity of 250mm, this furnace is ideal for a wide range of aluminum brazing processes.

Equipped with a state-of-the-art PLC Control System, the Aluminum Brazing Furnace ensures accurate and reliable control over the entire brazing process. The heating time of 2-3 minutes allows for quick and uniform heating of the workpieces, optimizing production efficiency.

The mesh belt transmission speed of the furnace is continuously adjustable from 200 to 1500mm/min, providing flexibility to accommodate different production requirements and brazing specifications. This feature enables precise control over the brazing process, ensuring high-quality results.

The Aluminum Brazing Furnace features a unique design that includes a Spray Drying Air Cooling Area, enhancing the cooling process and improving overall efficiency. The furnace is capable of maintaining a temperature range of 650-700 degrees, ideal for aluminum brazing applications.

With Nitrogen protection technology, the furnace provides a controlled atmosphere for brazing, ensuring high-quality and clean brazed joints. The 250mm Maximum Height Aluminum Radiator Brazing Furnace offers a Nitrogen Consumption rate of 35-45m3/h, making it a cost-effective and environmentally friendly solution for aluminum brazing processes.

Features:

• Product Name: Aluminum Brazing Furnace
• Rated power of Drying zone: 103.45KW
• Control System: PLC Control
• Nitrogen Purity: Above 99.9995%
• Cooling Method: Air Cooling
• Temperature Accuracy: ±3℃

Technical Parameters:

Applications:

The Sunhope Aluminum Brazing Furnace, originating from Guangdong, China, is a top-of-the-line industrial equipment designed for specific product application occasions and scenarios. With a maximum height of workpiece reaching up to 250mm, this furnace is perfect for brazing various aluminum components such as radiators, tubes, and other heat exchangers.

The Aluminum Brazing Furnace is ideal for use in industries requiring precise temperature control, thanks to its temperature accuracy of ±3℃. The rated power of the Drying zone is an impressive 103.45KW, ensuring efficient and effective heating processes. Additionally, the heating time of 2-3 minutes makes it a quick and reliable solution for various manufacturing needs.

One of the standout features of the Sunhope furnace is its nitrogen consumption, which ranges from 35 to 45m³/h. This makes it a cost-effective choice for operations that require controlled atmospheres or inert gas environments. The furnace's ability to handle such nitrogen consumption levels makes it suitable for a wide range of applications, from small-scale operations to large-scale industrial production.

Whether you are in the market for an Aluminium Brazing Furnace for radiator manufacturing, tube heating, or any other brazing applications, the Sunhope product offers unmatched performance and reliability. Operating at three-phase 50HZ, this furnace is suitable for various production environments and can meet the demanding needs of modern manufacturing processes.

Customization:

Product Customization Services for the Sunhope Aluminum Brazing Furnace:

- Brand Name: Sunhope

- Place of Origin: Guangdong, China

- Mesh belt transmission speed: 200—1500mm/min (Continuously Adjustable)

- Nitrogen consumption: About 35～45m 3/h

- Temperature Accuracy: ±3℃

- Cooling Method: Air Cooling

- Rated power of Drying zone: 103.45KW

Keywords: Nitrogen protection aluminum Brazing furnace, Continuous tunnel type Natural gas brazing oven, Aluminium Brazing Furnace Radiator Tube Heating Nitrogen Consumption Three Phase 50HZ
