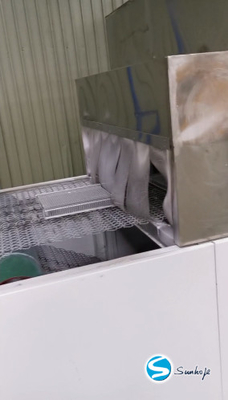

Precise Temperature Control Air Cooling Nitrogen Protection Aluminum Brazing Furnace for 900mm Face Height

Product Description:

The Aluminum Brazing Furnace is a high-quality industrial equipment designed for efficient brazing of aluminum components. This furnace is equipped with a mesh belt transmission system that allows for a transmission speed ranging from 200 to 1500mm/min, providing flexibility and control during the brazing process. The transmission speed is continuously adjustable, ensuring precise operation and optimal results.

Featuring a state-of-the-art PLC control system, this Aluminum Brazing Furnace offers advanced control and monitoring capabilities. The PLC control system enables users to set and adjust various parameters easily, ensuring accurate and reliable performance throughout the brazing process.

With a power supply requirement of AC380V, this furnace is suitable for industrial environments and can be easily integrated into existing operations. The heating up time of the furnace is remarkably efficient, ranging from 0.5 to 1 hour, allowing for quick start-up and reduced waiting times.

One of the key features of this Aluminum Brazing Furnace is its nitrogen purity level, which is above 99.9995%. This high level of nitrogen purity ensures a clean and controlled atmosphere within the furnace, ideal for aluminum brazing applications that require precision and quality.

The Aluminum Brazing Furnace is designed to accommodate aluminum components with a maximum height of 250mm, making it suitable for a wide range of brazing applications. The furnace is designed in a continuous tunnel type configuration, providing a seamless and efficient brazing process for large batches of components.

Equipped with a natural gas brazing oven, this furnace offers continuous operation and consistent heating for optimal results. The nitrogen protection feature of the furnace ensures that the brazing process is carried out in a controlled and inert atmosphere, preventing oxidation and ensuring high-quality brazed joints.

In terms of nitrogen consumption, the Aluminum Brazing Furnace has a consumption rate of 35 to 45m³/h, providing an efficient and cost-effective solution for industrial brazing operations. The nitrogen consumption rate can be adjusted as needed, allowing for optimal utilization and conservation of resources.

In conclusion, the Aluminum Brazing Furnace is a reliable and high-performance equipment that is ideal for aluminum brazing applications in various industries. With its advanced features, precise control system, and efficient operation, this furnace offers a versatile and effective solution for achieving high-quality brazed joints in a controlled environment.

Features:

• Product Name: Aluminum Brazing Furnace
• Rated power of Drying zone: 103.45KW
• Heating Method of brazing section: Plug-in Heating Element
• Mesh belt transmission speed: 200—1500mm/min (Continuously Adjustable)
• Maximum height of workpiece: 250mm
• Heating Time: 2-3min

Technical Parameters:

Applications:

Sunhope Aluminum Brazing Furnace is a top-of-the-line product designed for a variety of product application occasions and scenarios. The continuous tunnel type natural gas brazing oven is perfect for industries requiring precision and efficiency in their brazing processes. With its place of origin in Guangdong, China, this Nitrogen protection aluminum Brazing furnace is known for its high-quality construction and reliable performance.

One of the standout features of the Sunhope Aluminum Brazing Furnace is its nitrogen purity level, which is above 99.9995%. This ensures a clean and controlled atmosphere within the furnace, ideal for aluminum brazing processes. The mesh belt transmission speed of 200—1500mm/min (continuously adjustable) allows for flexibility in operation, catering to a wide range of production needs.

The material of the mesh belt is made of 316L stainless steel braided, providing durability and resistance to high temperatures. The temperature accuracy of ±3℃ ensures precise control over the brazing process, resulting in consistent and high-quality outcomes.

Customized in size, the Sunhope Aluminum Brazing Furnace can be tailored to fit the specific requirements of different industries and applications. Whether it's for radiator tube heating, nitrogen consumption control, or other aluminum brazing needs, this furnace is versatile and adaptable.

With a three-phase 50HZ power supply requirement, the Sunhope Aluminum Brazing Furnace is suitable for a range of manufacturing environments. Its advanced features and reliable performance make it an excellent choice for industries that demand efficiency, precision, and quality in their brazing operations.

Customization:

Sunhope offers Product Customization Services for the Aluminum Brazing Furnace. Our continuous tunnel type Natural gas brazing oven is designed to meet your specific requirements.

Originating from Guangdong, China, our Four Sections Aluminum Brazing Furnace can accommodate workpieces with a maximum height of 250mm.

The furnace operates at a heating temperature range of 600-650℃, with a heating time of 2-3 minutes and a heating up time of 0.5-1 hour.

For durability and efficiency, the Mesh belt is constructed from 316L Stainless Steel Braided material.

Experience the exceptional performance of our Four Sections Aluminum Brazing Furnace, offering a heating range of 650-700 degrees and a Spray Drying Air Cooling Area.

Packing and Shipping:

Product Packaging:

The Aluminum Brazing Furnace is carefully packaged in a sturdy corrugated cardboard box to ensure safe transportation. The furnace is securely cushioned with foam padding to prevent any damage during shipping.

Shipping:

Our shipping process is efficient and reliable. Once your order is confirmed, the Aluminum Brazing Furnace will be dispatched within 1-2 business days. We partner with reputable shipping companies to deliver your furnace safely and on time. You will receive a tracking number to monitor the status of your shipment.
