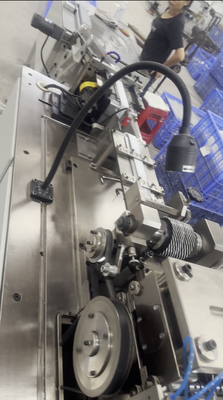

40mm Slide Stroke Aluminum Fin Forming Machine For Radiator Production

  • 40mm Slide Stroke Aluminum Fin Forming Machine For Radiator Production
  • 40mm Slide Stroke Aluminum Fin Forming Machine For Radiator Production
Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1 set
Price negotiable
Packaging Details wooden case
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 1000 set/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Min. Slide Lifting Heightt 130mm Stack Length 900/1200/1500
Capacity 1250 Coil 0D 1200mm
Die Height 280-330 Slide- -strokes 40mm
Bottm Size Of Slide CLRxFB) 1300*1350mm Max Height Of Collecting Material 720mm
Highlight

Radiator Production Fin Forming Machine

,

40mm Slide Stroke Fin Forming Machine

,

Aluminum Fin Forming Machine
Leave a Message
Product Description

Product Description:



Features:

  • Product Name: Radiator Fin Forming Machine
  • Width of material: 1080mm
  • Table size (LR x FB): 2000*1360mm
  • Capacity: 1250
  • Main motor: 22KW
  • Slide-strokes: 40mm
  • High Speed Radiator Fin Forming Machine 5mm Height 1.5mm Tube Thickness
  • Aluminium 6.5-10mm Tube Pitch Radiator Fin Machine
  • Fin Tube Machine Customized
  • AC220V 1.5 Tons Automatic Fin Forming Machine Single Blade


Technical Parameters:

Main motor 22KW
Width of material 1080mm
Slide-strokes 40mm
Stack length 900/1200/1500
Table size (LR x FB) 2000*1360mm
Max height of collecting material 720mm
Min. slide lifting height 130mm
Coil 0D 1200mm
Die height 280-330
Bottom size of slide CLRxFB 1300*1350mm

Applications:

Used for radiator

Customization:

The Sunhope Radiator Fin Forming Machine is manufactured in Guangdong, China and has a capacity of 1250. The machine is designed to work with material widths of up to 1080mm and has a coil OD of 1200mm. The stack length can be customized to 900mm, 1200mm, or 1500mm and the maximum height of collecting material is 720mm. This 0..8Mpa 220V Aluminium Fin Press Machine is equipped with flat fin machine multi hobs, making it perfect for the production of car aluminum radiator and condenser fins. For further customization, please contact our sales team.
