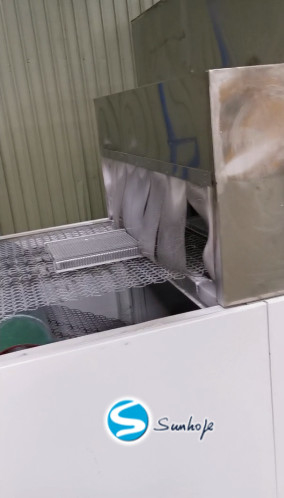

Plug In Heating Element Nitrogen Protection Aluminum Brazing Furnace 900mm Face Height

  • Plug In Heating Element Nitrogen Protection Aluminum Brazing Furnace 900mm Face Height
  • Plug In Heating Element Nitrogen Protection Aluminum Brazing Furnace 900mm Face Height
Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case
Delivery Time 95 days
Payment Terms L/C, T/T
Supply Ability 10/set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Nitrogen Consumption About 35～45m 3/h Heating Temperature 600-650℃
Mesh Belt Transmission Speed 200—1500mm/min (Continuously Adjustable ) Control System PLC Control
Rated Power Of Drying Zone 103.45KW Heating Method Of Brazing Section Plug-in Heating Element
Cooling Method Air Cooling Heating Time 2-3min
High Light

Nitrogen Protection Aluminum Brazing Furnace

,

900mm Face Height Aluminum Brazing Furnace
Leave a Message
Product Description

Plug-In Heating Element Nitrogen Protection Aluminum Brazing Furnace 900mm Face Height

Product Description:

Four Sections Aluminum Brazing Furnace 650-700 Degree Spray Drying Air Cooling Area is a special furnace for aluminum brazing. It is designed for the multifunctional brazing of aluminum alloy, stainless steel and copper alloys. It is equipped with high-efficiency heating system, nitrogen protection system, and spray-drying air cooling area. With advanced process control technology and high-quality material, the furnace can provide fast heating up time from 0.5-1h, nitrogen purity above 99.9995%, temperature accuracy of ±3℃, and 316L stainless steel braided mesh belt. Moreover, it is customizable in size to meet the needs of different customers.



Technical Parameters:

Product Attributes Technical Parameters
Maximum height of workpiece 250mm
Control System PLC Control
Heating Time 2-3min
Rated power of Drying zone 103.45KW
Size Customized
Heating Method of brazing section Plug-in Heating Element
Cooling Method Air Cooling
Face height of mesh belt 900mm
Material of Mesh belt 316L Stainless Steel Braided
Temperature Accuracy ±3℃
Heating Type Continuous tunnel type Natural gas brazing oven
Sections Four Sections
Temperature Range 650-700 Degree
Spray Drying Air Cooling Area


Applications:

Sunhope Brand Aluminium Radiator Brazing Furnace is designed to meet all industry needs for superior brazing performance. It is the ideal choice for brazing aluminum radiator tubes, offering a 250mm maximum height, 35～45m 3/h nitrogen consumption, and three phase 50HZ power supply. With its advanced radiantor tube heating technology, it provides a heating temperature range of 600-650℃. The furnace is equipped with a 316L stainless steel braided mesh belt, allowing for a more efficient brazing process.

Sunhope Aluminum Brazing Furnace is an essential tool for aluminum brazing, and the perfect choice for those who require superior performance and reliability. With its high-end features and superior quality, the Sunhope Aluminum Brazing Furnace is the perfect choice for any brazing application.



Customization:

Aluminum Brazing Furnace
  • Brand Name: Sunhope
  • Place of Origin: Guangdong,China
  • Heating Time: 2-3min
  • Temperature Accuracy: ±3℃
  • Nitrogen Purity: Above 99.9995%
  • Material of Mesh belt: 316L Stainless Steel Braided
  • Rated power of Drying zone: 103.45KW
  • Maximum Height: 250mm
  • Nitrogen Consumption: 35～45m 3/H
  • Phase: Three Phase
  • Frequency: 50HZ

Sunhope Aluminum Brazing Furnace is designed for brazing aluminum radiator tubes. It is equipped with heating zone, drying zone, brazing zone and cooling zone. It has a maximum height of 250mm and a rated power of drying zone of 103.45KW. It has a heating time of 2-3min and a temperature accuracy of ±3℃. It has a nitrogen purity of above 99.9995% and a nitrogen consumption of 35-45m 3/H. The material of mesh belt is 316L stainless steel braided. The frequency is 50Hz and the phase is three phase.



Support and Services:

Aluminum Brazing Furnace Technical Support and Service

Aluminum Brazing Furnace provides comprehensive technical support and services to ensure the efficient operation of the product. The technical support and services include:

  • Expert advice and assistance in selecting the right Aluminum Brazing Furnace for your needs
  • Technical support during installation and commissioning
  • Regular maintenance and servicing of the equipment
  • Troubleshooting and resolving problems
  • Replacement of parts and components
  • Upgrades and customizations

Our team of experienced engineers is available to provide technical assistance and advice to ensure that your Aluminum Brazing Furnace is running at maximum efficiency and meeting your production requirements.



Packing and Shipping:

The Aluminum Brazing Furnace will be packaged and shipped with the following:

  • A cardboard box to protect the product
  • Bubble wrap or similar materials to cushion it
  • A wooden pallet for stacking and secure transport
  • Shipping labels and instructions
