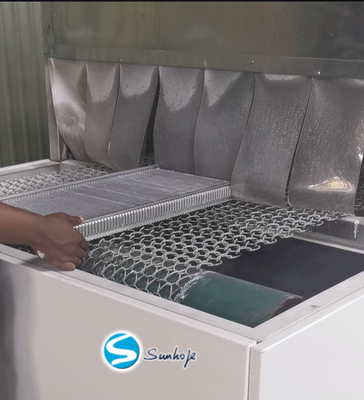

Durable Continuous Tunnel Type Electricity Brazing Oven For Long Lasting Performance

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10/set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Heating Time 2-3min Mesh Belt Transmission Speed 200—1500mm/min (Continuously Adjustable )
Nitrogen Purity Above 99.9995% Temperature Accuracy ±3℃
Material Of Mesh Belt 316L Stainless Steel Braided Heating Method Of Brazing Section Plug-in Heating Element
Heating Up Time 0.5-1h Size Customized
High Light

Continuous Tunnel Type Electricity Brazing Oven


Long Lasting Performance Electricity Brazing Oven

Leave a Message
Product Description

Durable Continuous Tunnel Type Electricity Brazing Oven For Long-Lasting Performance

Product Description:

Our Aluminum Brazing Furnace is a continuous tunnel type natural gas brazing oven that is designed to provide efficient heating for brazing aluminium. It employs radiantor tube heating with temperature of 600-650℃ and the power supply is AC380V. The material of the mesh belt is made of 316L stainless steel braided and the mesh belt transmission speed can be continuously adjusted from 200-1500mm/min. In addition, the nitrogen consumption is about 35-45m3/h. It is a three phase, 50HZ four sections aluminum brazing furnace with 650-700 degree and spray drying and air cooling area.


Technical Parameters:

Parameter Value
Power Supply AC380V
Heating up Time 0.5-1h
Control System PLC Control
Cooling Method Air Cooling
Mesh belt transmission speed 200—1500mm/min (Continuously Adjustable)
Heating Temperature 600-650℃
Maximum height of workpiece 250mm
Size Customized
Nitrogen Purity Above 99.9995%
Material of Mesh belt 316L Stainless Steel Braided
Nitrogen Consumption 35~45m3/H
Type of Oven Continuous tunnel type Natural gas brazing oven


Sunhope Four Sections Aluminum Brazing Furnace is the perfect choice for industrial applications, manufactured in Guangdong, China. It is designed to reach a maximum heating temperature of 650-700 degrees Celsius with a nitrogen consumption of 35-45 m3/h. The two main sections, the brazing section and the drying/cooling section, are equipped with plug-in heating elements and spray drying/air cooling areas for optimal performance. The furnace is also equipped with a 316L stainless steel braided mesh belt and a radiantor tube heating system. It has a three-phase 50HZ power system and a nitrogen purity of above 99.9995%.



Sunhope 250mm Maximum Height Aluminum Radiator Brazing Furnace
  • Brand Name: Sunhope
  • Place of Origin: Guangdong,China
  • Maximum height of workpiece: 250mm
  • Temperature Accuracy: ±3℃
  • Material of Mesh belt: 316L Stainless Steel Braided
  • Size: Customized
  • Cooling Method: Air Cooling
  • Nitrogen consumption: 35~45m 3/H
  • Heating Method: Radiantor Tube Heating
  • Power Supply: Three Phase 50HZ
  • Nitrogen protection: Yes

Support and Services:

Aluminum Brazing Furnace Technical Support and Service

Our team of experienced professionals is available to provide you with expert technical support and service for your Aluminum Brazing Furnace. Our team can help you with:

  • Troubleshooting and repair of furnace components
  • Installation and maintenance of furnace
  • Consultation on furnace operation
  • Advice on furnace operation and safety
  • Assistance with furnace design and customization

We are committed to providing you with the best customer service and technical support for your Aluminum Brazing Furnace.


Packing and Shipping:

Packaging and Shipping Aluminum Brazing Furnace:

The Aluminum Brazing Furnace will be packaged with bubble wrap and cardboard boxes for protection against shock and damage. The package will be securely sealed with adhesive tape. The furnace will be shipped via a reliable carrier with tracking numbers provided upon delivery.
