xProduct Details
| Tube Pitch | 10 | Number Of Workpiece Per Assembly | 1 Piece |
|---|---|---|---|
| Core Height | 300 -850 Mm | Core Thickness Range | 16-56 Mm |
| Fin Height | 8mm(can Made According To Customer's Request) | Flat Tube Thickness | 2mm(can Made According To Customer's Request) |
Product Description

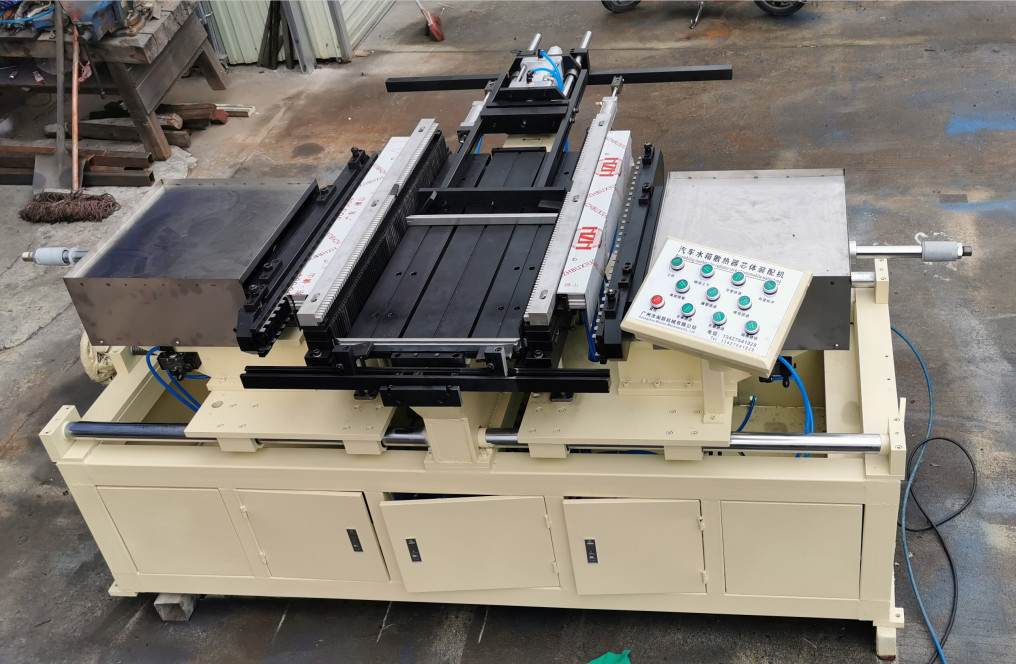

Semi-automatic Core Builder Machine
Product advantage of Core Builder Machine :
The core builder machine works smoothly, easy to operate, fast assembly, low energy consumption and no noise, accurate assembly size, uniform distribution, core forming neat and beautiful, easy to braze forming.
Procedure of producing radiator:
Prepare the radiator component, assemble the core, brazing, assemble the plastic tank,then finish assembling the whole radiator.
This core builder machine can assemble the head plate, fin, side plate, and other workpiece one-time assembly into the radiator core body.
Product parameters of Core Builder Machine:
|
Tube pitch |
10 (fin 8+2 tube) |
| Number of workpiece per assembly | 1 piece |
| Core high | 300 -- 850 mm |
| Core thickness range | 16-56 mm |
| Center distance from tube to tube |
10mm (fin height: 8mm, flat tube thickness: 2mm) |
| Maximum size of flat tube arrangement (core width) | 850 mm (center distance of flat tube is 10mm, total 85 teeth) |
| Flat tube specifications | belly thickness 2 mm |
| Number of rows | 2 |
| Space between fin and head plate | <= 5 mm |
| Power supply | single-phase 220V 50Hz 0.5kw |
| Assembly accuracy | Diagonal error ±1.5 mm
Core height error ±1mm |
| Working pressure | 0.5-0.8Mpa |
| Assembly efficiency | 60-120 seconds/set (reference) |
| Measurement | 900 (lenth) ×2950 (width) ×1250MM(height) |
| Total weight | About 2.0 tons |
Product features of Core Builder Machine :
The whole equipment adopts mechanical and electrical combination, PLC control, pneumatic components with mechanical device execution structure, with manual operation (tube, tape, head plate), automatic patting, clamping, assembly and other steps to complete the core assembly.
The equipment is easy to operate and can be set two operation modes: automatic operation and manual operation. The automatic operation mode is one-button operation, which is used for normal radiator or condenser core assembly production.
Manual operation mode is used for device mechanism adjustment
Product structure of Core Builder Machine:
The equipment is divided into frame and table, front and rear pressing adjustment mechanism, left and right assembly mechanism, comb mechanism, left head plate installation platform, right head plate installation platform, electrical control system.
Other machines for producing radiator:
Besides the core assembly machine, there are fin making machine, radiator clinching machine, brazing furnace, these are the basic equipment for producing the radiator,When all this equipment is equipped, it can build up a machine factory.
We can supply all these machines and aluminium components so that you can organize the production more smooth.
Below are some pictures of other machine for producing radiator:
Fin making machine
Radiator making machine
Brazing furnace
Introduction of our company:
Since 2013, we have been supplying components, head plate and plastic tank to foreign factories.
We help customers with the overall planning of components.
We produce radiators ourselves. We know how to match the head plate,plastic tank and gasket. We supply the whole components that needed for the production.In the process of production, if the customer does not produce the good radiator, through the unified supply of these materials, we can provide a solution for the customer.
As for the supply of components, we are the first batch that willing to supply the raw material to foreign customer in China.
At that time, no factory in China was willing to provide plastic tank ,head plate and side plate to foreign customers.But we think it's a trend that customers buy their own parts to make their own radiators.
With our understanding of the industry, we have been helping foreign customers to set up radiator factories in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process. At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products. If you are interested in setting up a radiator factory in your place, please contact us and we will provide you with the best service.
