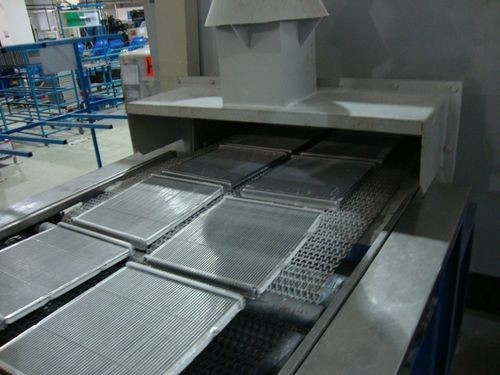

Continuous Aluminum Brazing Furnace Industrial Radiator Furnace 650 Degrees Brazing Section
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCooling Method | Water Cooling Or Air Cooling | Mesh Belt Speed | 200-1000mm Depending On Furnace Size |
---|---|---|---|
Power (kW) | 700 | Mesh Belt Transmission Power | 2.2KW |
Voltage | 380V Three Phase | ||
Highlight | Continuous Aluminum Brazing Furnace,650 Degrees Aluminum Brazing Furnace |
Continuous High Performance Aluminum Brazing Furnace Industrial Radiator Furnace 650 degrees Brazing section
Product supply scope:
1.Fluxing chamber
2.Drying chamber
3.Front curtain chamber
4.Heating chamber
5.Air cooling system
6.Rear curtain chamber
7.control system
Product features:
1) The aluminum radiator brazing furnace line adopts high performance porcelain fiber cotton material for heat preservation purpose. The furnace is able to rise to 630℃ from the ambient temperature in around 2 hours.
2) The zones of the aluminium radiator brazing furnace are divided based on upper, lower, rear and back area. The heating power is adjusted through power and voltage regulator so that the furnace could achieve an ideal temperature uniformity of ±1℃. The brazing area could achieve a temperature uniformity of ±2℃ so that it could meet the brazing requirements.
3) The dry air cooling room is set with a slag cleaning chamber. There is a side door of the slag cleaning chamber for allowing the worker to clean the flux slags. In comparison to the traditional water cooling chamber, the dry cooling room doesn't have the risk of corrosion because of water and deformation of the chamber because of cold and heat. There is no need for cooling water.
4) power at temperature rising stage: 100%; power at the brazing stage: ≤60%
Product quick details:
Maximum service temperature:650℃
Furnace temperature uniformity:±3℃
Mesh belt operating surface height:900mm
Normal operating temperature:600~650℃
Effective working size:1000mm(Mesh belt width)×250mm(Height of mesh belt)
316L stainless steel muffle is used for the main brazing area.
conveying chain:SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm
About us:
With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.
2.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.
3.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
