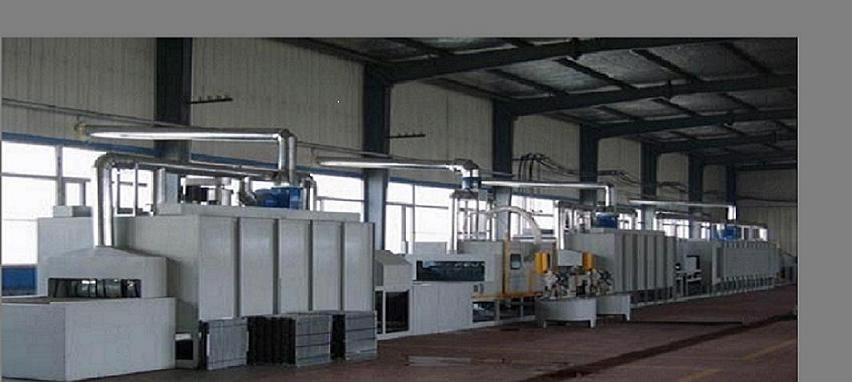

High Productivity Continuous Mesh Belt Brazing Furnace For Radiator

  • High Productivity Continuous Mesh Belt Brazing Furnace For Radiator
  • High Productivity Continuous Mesh Belt Brazing Furnace For Radiator
Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed 150～600mm/min Mesh Belt Operating Surface Height 900mm
Working Station Size 1000mm×250mm Height Of Brazing Furnace 250mm
Length Of Brazing Furnace 6000mm
High Light

Continuous Mesh Belt Brazing Furnace

,

Radiator Mesh Belt Brazing Furnace
Leave a Message
Product Description

High Productivity Continuous Mesh Belt Brazing Furnace for Radiator:

Product introduction:

Continuous brazing furnace equipment under the role of nitrogen protection, the use of non-corrosive brazing agent continuous brazing automotive aluminum intercooler, water tank, automotive air conditioning condenser, evaporator, radiator tank, aluminum oil cooler and other products.

This continuous gas protected aluminum brazing furnace is mainly used for automobile pipe brazing, automobile parts brazing, stainless steel electric plate brazing, mechanical parts brazing, air conditioning cold parts brazing in automobile, home appliances, electronics, hardware, machinery and other industries.



Product charcateristics:

1. The shell is composed of Q235-6mm thick steel plate and structural steel.The top is fixed and sealed by bolts and the side for easy maintenance;

2. The top, wall and bottom of the furnace are equipped with needled blanket fiber cotton insulation materials.The roof insulation material will be attached to the removable roof On the cover.The use of needled blanket fiber cotton insulation can ensure low heat storage and easy to control the temperature;The insulation layer is made of ceramic fiber needled blanket made by Shandong Luyang Stock Co., Ltd., which has excellent thermal insulation performance and can save more than 30% electric energy when heating up.

3. The helical electric heating wire is inserted into the furnace body from the side through the insulating porcelain tube, and the opening is blocked with the ceramic plug head to prevent heat loss and facilitate the replacement;

4. MUFFLE adopts SUS304-6mm, SUS316L-6mm plate of TISteel. After a large folding machine, the furnace MUFFLE has a folding length of 6 meters, and a V-shaped groove is pressed at the bottom.

5. Stainless steel towing rail is used at the bottom of muffle to facilitate muffle sliding by thermal expansion and cold contraction;

6. Two nitrogen pipelines and one thermocouple for temperature measurement are installed inside muffle;



Product specifications:

Mesh belt operating surface height 900mm
Normal operating temperature 600～650℃
Furnace temperature uniformity ±3℃
maximum service temperature 700℃
effective working size 1000mm(Mesh belt width)×250mm(Height of mesh belt)
The channel size 1050mm×300mm(Straight edge height)
Temperature control zone 6 points in Section 6 of Section 3 (temperature measurement)
Temperature measuring point layout The upper and lower of each section + furnace temperature measurement
design power 240KW±10%
Temperature control mode PID,The work pressure regulating
heating mode resistance wire
length of heating zone 6M
conveying chain SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm



About us:

  Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

   If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.What’s the style of spray of the aluminum Brazing furnace machine?

The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.



2.Does the aluminum Brazing furnace machine is customized or standard size?

The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.
