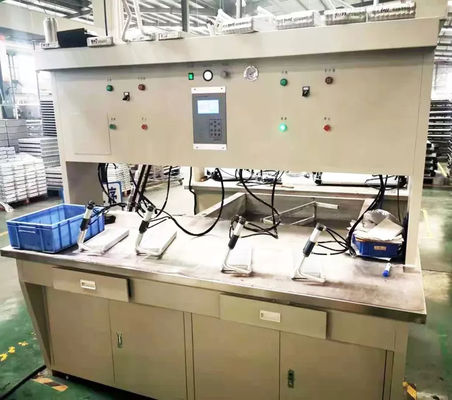

Automotive Radiator Leakage Tester For Testing Air Tightness Of Car Radiator Tanks

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurable Leakage Less Than 1Pa/s Measuring Range 0.2~20L/min
Min. Displaying Test Pressure 1kPa Test Source Dry Clean Air 0.6MPa
Testing Pressure Range 50~400KPa
High Light

Fully Auto Radiator Leakage Tester

,

Car Radiator Tanks Testing Machine

,

7 Inch Display Radiator Leakage Tester

Leave a Message
Product Description

Product descriptions:
      Differential pressure leak detector is developed by our company on the basis of direct pressure leak detector-a leak detector that can realize online detection. Its working principle is: Leak detector application technology string lj pressure precision The compressed air inflates and pressurizes the test product and the standard product at the same time, and then cuts off the inflation circuit. If the test product leaks, a pressure difference will occur between the test product and the standard product. The pressure difference value of the test product can be determined by calculation and analysis to check whether the air tightness is qualified.





Technical Parameters:

u Test range: ±0.5Kpa, ±1Kpa, ±2Kpa

u Pressure unit: Kpa, Mpa, PSI, bar

u Leak value unit: Pa, Pa/s, mL/min

u Differential pressure resolution: 1Pa

u power supply: AC220V

u Air source requirements: Clean, dry, compressed air with stable pressure





Features:

u Fully automated intelligent operating system

u 7-inch display, high-definition interface, Chinese operation, simple and easy to understand

u Using high-precision differential pressure sensor, high measurement accuracy

u USB data export function

u Optional printer to print test results



Automotive Radiator Leakage Tester For Testing Air Tightness Of Car Radiator Tanks 0





About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

     With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

      At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.Why do you provide the producing equipment of radiator at the same time?

Our company has over 10 years experience in manufacturing the radiator,we are very familiar with all kinds of performance of equipment in the process of manufacturing the radiator.We are able to introduce the customers what’s the best equipment for them according to our experience.



2.Does your company provide after-sales service to the equipment?

Our company has a long term working relationship with the equipment provider,we are very happy to offer the best after-service to our customers.



3.Why do you choose our company to buy the radiator parts?

Our company manufactures and develops hardware moulds by ourselves,we owes over 200 different specifications moulds of head plates ,which covers most of hot sale cars model in the market.



4.Does the after-sales service provided by your company have any advantages?

Because we are also the users of equipment,we have a better understanding in the potential problem which maybe appears in the process of production of equipment.We can provide the fastest and right solution for our customers.
