2000Pa Sensor Range Radiator Leak Tester For Water Leakage

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 50days
Payment Terms L/C, T/T
Supply Ability 100sets/month
Product Details
Working Method 2 Position Alternative Cycle About 1 Min Per Radiator
Test Medium Gas (water) Power Electronic
Power Supply 0~380V Control Mode Automatic/manual
High Light

64bitCPU Radiator Leak Tester

,

2000Pa Sensor Range Radiator Leak Tester

,

2000Pa Sensor Range water leak tester

Leave a Message
Product Description

Water Leak Detector Radiator Air Leak Testing Machine For Plastic Packaging Leakage Testing

Product applications:

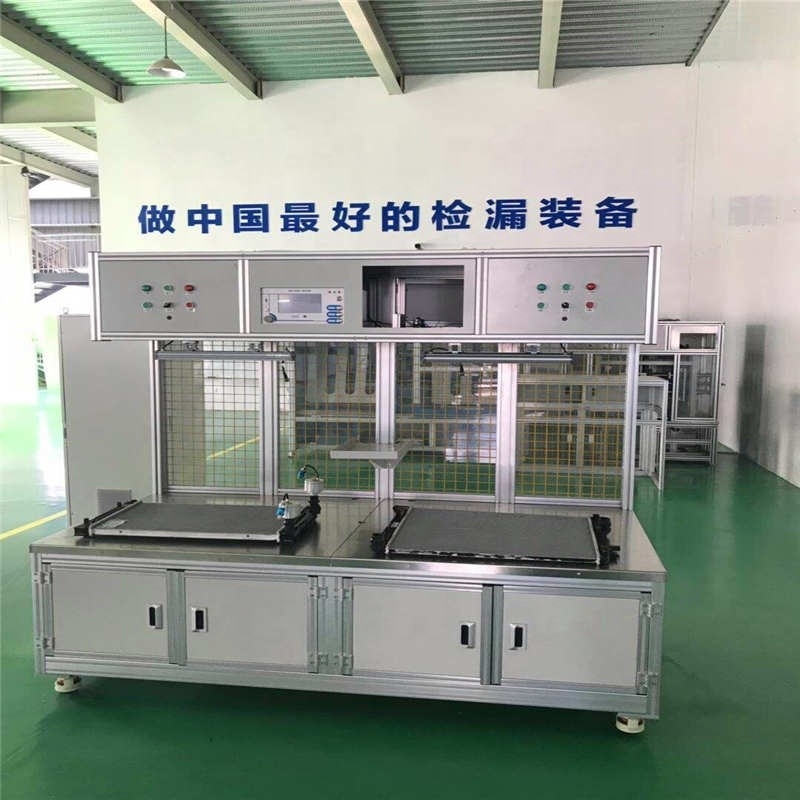

     The radiator leak testing machine is used to test the mechanical radiator through the differential air pressure.The The radiator leak testing machine charges nitrogen or compressed air at a required pressure and carry out the pressure maintaining test to check whether the radiator has leaks. The radiator leak testing machine works in an alternative 2-position manner.





Product parameters:

Parameter unit (Test pressure) kPa,kg/cm2,psi,bar,torr
Parameter unit(Leak value) Pa,Pa/s,mL/min
Tester size 320(L)×400(W)×205(H)
Tester weight 16kg
Test pressure range 0~400KPa
Test pressure minimum display value 1KPa
Differential pressure display range 0~±1999Pa
Differential pressure minimum display value 1Pa
Sensor range 0~±2000Pa
Sensor tolerated pressure 13.8MPa
Leak value display 3-digit integer with Pa unit, and 2-digit integer with other units
Leak upper and lower limit Below ±1999Pa
Parameter channel 32 group
Time 0~999S
Hardware 64bitCPU
Power supply AC220V±5%,50HZ
Air source 400kPa~600k dry and clean air
Environment temperature Working temperature: 5~40℃; storage temperature: -20~70℃
Humidity Below 80%RH, no dew
IO interface Open circuit collective electrode interface and relay output
Testing cycle About 1 min per core; 2 cores tested per min
Radiator core size Max 800*800*48mm
Machine overall size 2000*960*1900mm (L,W,H)



Product main features:

a) large screen 7-inch touch screen;
b) differential pressure definition1 Pa;
c) multi-channel parameters (32 groups);
d) both manual and automatic test modes;
e) automatic self-cleaning function of the air pipes;
f) RS232 interface output;
g) USB data output; measurement value directly written into U disk;
h) sufficient remote control terminals for connecting PLC or direct driving the external equipment (such as solenoid valve);
i) 12000 groups of data storage capacity; could be tracked by date, worker no., and workpiece no.;
h) a wide range of cores to be tested





2000Pa Sensor Range Radiator Leak Tester For Water Leakage 0





About us:

       Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

       With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

        At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

       If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.Why do you provide the producing equipment of radiator at the same time?

Our company has over 10 years experience in manufacturing the radiator,we are very familiar with all kinds of performance of equipment in the process of manufacturing the radiator.We are able to introduce the customers what’s the best equipment for them according to our experience.



2.Does your company provide after-sales service to the equipment?

Our company has a long term working relationship with the equipment provider,we are very happy to offer the best after-service to our customers.



3.Why do you choose our company to buy the radiator parts?

Our company manufactures and develops hardware moulds by ourselves,we owes over 200 different specifications moulds of head plates ,which covers most of hot sale cars model in the market.



4.Does the after-sales service provided by your company have any advantages?

Because we are also the users of equipment,we have a better understanding in the potential problem which maybe appears in the process of production of equipment.We can provide the fastest and right solution for our customers.
