Radiator Leak Tester For Testing Air Tightness Of Automobile Radiators
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | 0~380V | Power | Electronic |
|---|---|---|---|
| Control Mode | Automatic/manual | Test Medium | Gas (water) |
| Working Station | 1 | ||
| High Light | Electronic Radiator Pressure Leak Tester,Dry Type Car Radiator Leak Tester,50Hz Radiator Leak Pressure Tester |
||
Product Description

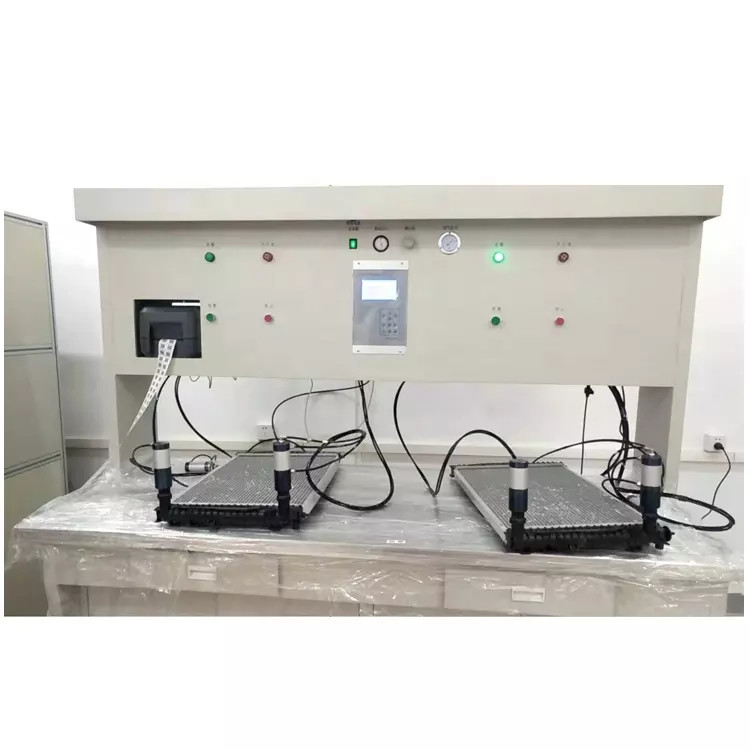

Radiator leak tester for testing air tightness of automobile radiators Dry-type car
I Description & main features of car radiator leak testing machine
This radiator leak testing machine is specially designed for testing air tightness of car radiator cores.
- Testing pressure range is 50~400KPa.
- Double-station testing can raise your efficiency well.
- Interface of tester is very clear; operation is very convenient, one key operation, automatic stopping.
- Very high testing precision, measurable leakage ≤1pa/s.
- Very large memory, 100,000 units testing data can be saved and reviewed.
II Main features of air tightness tester for this car radiator leak testing machine
- Very short test time by adopting advanced data collecting & processing technology
- Super high pressure resolution ratio, up to 1Pa
- Perfect circuit and pneumatic self-diagnosing function
- 4.3” large size LCD displayer, very clear and convenient
III Main technical data of car radiator leak testing machine
| Item | Data | |
| Measuring range | 0.2~20mL/min | |
| Differential pressure | Min. resolution | 1Pa |
| Sensor withstand pressure | 2MPa | |
| Test pressure | Min. displaying | 1kPa |
| Displaying range | 0~400kPa | |
| Time setting | Filling, balancing, leakage checking, draining separately | |
| Power source | AC 220V ±5%, 50Hz | |
| Test source (dry clean air) | 0.6MPa | |
| Working ambient temperature | 0~40ºC | |
| Storage temperature | 0~50ºC | |
| RH | Less than 80%, without dew | |
IV Supplying range of car radiator leak testing machine
1- Table for double-station & clamps
2- Tester

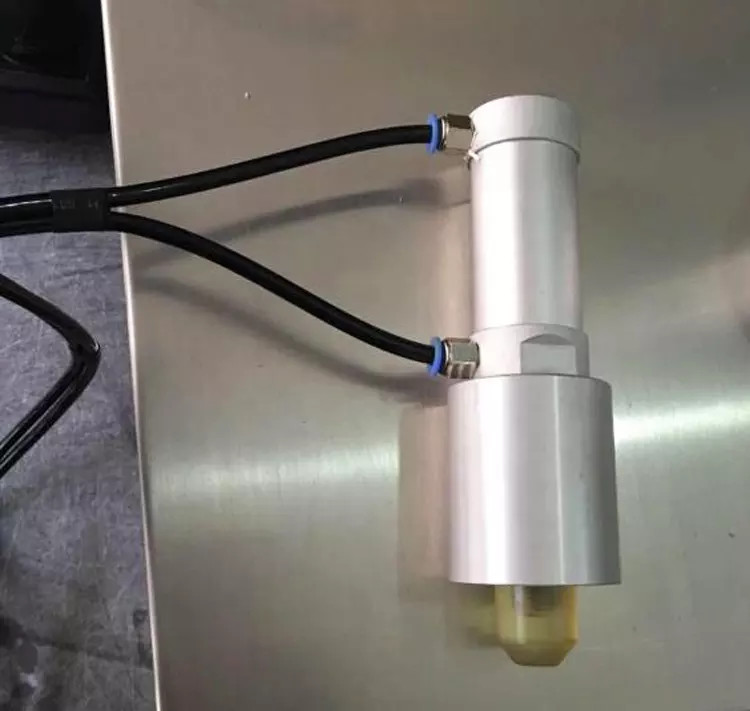

3- Two pneumatic cylinders (for sealing water tank cover)
4- Two sets pneumatic stopping cylinders (total four)
5- Seven sets PU seals (for 7 size tank mouths)
6- Printer is optional
