Product Details
Mesh Belt Operating Surface Height 900mm Speed 150~600mm/min
Working Station Size 1000mm×250mm Width Of Brazing Furnace 1000mm
Length Of Brazing Furnace 6000mm
High Light

CNB Continuous Aluminum Brazing Furnace


Industrial Aluminum Brazing Furnace

Leave a Message
Product Description

CNB Continuous Aluminum Brazing Furnace Quality Furnace Brazing Equipment Industrial Furnace Brazing Aluminum
Product introduction:
    For aluminum brazing in nitrogen furnace: a flux spraying device sprays flux onto the workpiece, and heats the workpiece to 150 ℃ ~ 250 ℃ for drying through the drying furnace. When the temperature in the brazing furnace with protective atmosphere reaches 610 ℃, the workpiece is brazed. After cooling by water cooling and air cooling, the workpiece is unloaded from the unloading table. The process is as follows:
Welding parts → flux spraying → conveying device → drying furnace → conveying device → heating furnace → brazing furnace → water cooling chamber → air cooling chamber → conveying device.
(1) Flux spraying

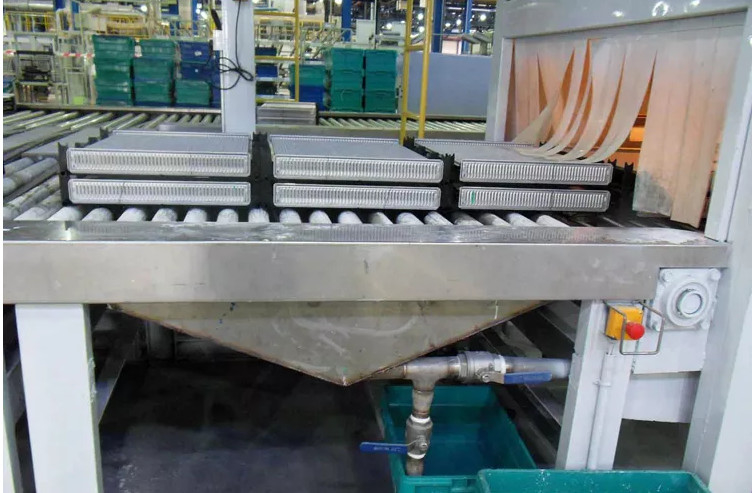

A conveyor chain carries the workpiece through a closed flux chamber, in which water containing flux is sprayed on the workpiece. After spraying, the excess flux on the workpiece is removed by an air knife, and then the workpiece is transported to the drying oven.

(2) Drying process

After spraying the flux, the parts need to be dried in the drying oven, and the temperature is usually about 200 ℃. Care should be taken to prevent the heat exchanger from overheating, which may lead to the formation of high-temperature oxides on the aluminum surface.

(3) Continuous brazing furnace

 The brazing furnace must ensure that the temperature of the workpiece is increased above 20 ℃ every minute, so that the surface coating solder reaches the melting point (591 ℃). The temperature balance of the workpiece is ± 3 ℃, and the protective atmosphere of nitrogen is maintained in the furnace. The control of workpiece temperature and the consistency of each workpiece temperature are very high, so the heating chamber is divided into several control areas. The more areas, the better the temperature distribution control of the workpiece. Any large fluctuation will lead to insufficient or excessive brazing of the workpiece.

Product quick details:

Mesh belt operating surface height900mm
Normal operating temperature600~650℃
Furnace temperature uniformity±3℃
maximum service temperature700℃
effective working size1000mm(Mesh belt width)×250mm(Height of mesh belt)
The channel size1050mm×300mm(Straight edge height)
Temperature control zone6 points in Section 6 of Section 3 (temperature measurement)
Temperature measuring point layoutThe upper and lower of each section + furnace temperature measurement
design power240KW±10%
Temperature control modePID,The work pressure regulating
heating moderesistance wire
length of heating zone6M
conveying chainSUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm

CNB Continuous Aluminum Brazing Furnace Industrial Brazing Equipment 0
Company introductions:
      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
      With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
1.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.
2.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
3.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.
4.Does the aluminum Brazing furnace machine is customized or standard size?
The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.
