Nitrogen Atmosphere Continuous Brazing Furnace 10 Meters Section For Aluminum Car Radiator

Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Width Of Brazing Furnace 1000mm Working Station Size 1000mm×250mm
Speed 150~600mm/min Height Of Brazing Furnace 250mm
Length Of Brazing Furnace 6000mm
High Light

Nitrogen Atmosphere Continuous Brazing Furnace


10 Meters Section Continuous Brazing Furnace

Leave a Message
Product Description

10 meters Brazing Section Nitrogen Atmosphere Continuous Brazing Furnace for Aluminum Car Radiator

Product technology:

  • Degreasing furnace

  • spray room,

  • drying furnace

  • brazing furnace

  • cooling system


Product specifications:

maximum service temperature 700℃
effective working size 1000mm(Mesh belt width)×250mm(Height of mesh belt)
The channel size 1050mm×300mm(Straight edge height)
Temperature control zone 6 points in Section 6 of Section 3 (temperature measurement)
Temperature measuring point layout The upper and lower of each section + furnace temperature measurement
design power 240KW±10%
Temperature control mode PID,The work pressure regulating
heating mode resistance wire
length of heating zone 6M
conveying chain SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm
Mesh belt operating surface height 900mm
Normal operating temperature 600~650℃
Furnace temperature uniformity ±3℃



Product introduction:

     Plug-in heating elements that are distributed in multiple heating areas provide continuous heating to the brazing chamber.It heat the work-piece to the brazing temperature.For different work-piece and different input power of each heating zone,each heating zone has greater flexibility at inputting different heating rates.Separate power controllers are used to balance the heating requirements of each brazing zone.


Note: The power listed in the technical specification is the maximum load capacity of the equipment, not the service value.The actual load is determined by the load of the work-piece and fixture that transmitted on the conveyor belt.

The number of brazing zones is designed to sufficiently ensure that the work-piece is heated to the required temperature in the protective nitrogen.The temperature uniformity of the product in the final brazing zone (575℃ -650℃) is ±3℃.

Brazing muffle for air chamber is welded structure, the length of the whole sheet adopts bending without splicing.

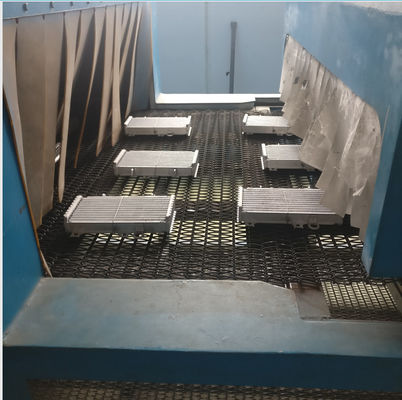

Nitrogen Atmosphere Continuous Brazing Furnace 10 Meters Section For Aluminum Car Radiator 0



About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.




1.What’s the style of spray of the aluminum Brazing furnace machine?

The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.


2.Does the aluminum Brazing furnace machine is customized or standard size?

The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.


3.Does the aluminum Brazing furnace machine use gas?

The aluminum Brazing furnace machine can use natural gas as a productive energy source.


4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?

The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
