1000mm / Min Aluminium Radiator Brazing Furnace With Controllable Atmosphere

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Power (kW) 400 Dimension(L*W*H) Custom Made
Usage Heat Treatment Furnace Total Oven Length 35.5m
Conveying Belt Speed 300~1000mm/min, Inverter Control
High Light

Aluminium Radiator Brazing Furnace


1000mm / Min Radiator Brazing Furnace


Controllable Atmosphere Radiator Brazing Furnace

Leave a Message
Product Description

Continuous Nitrogen Power Atmosphere Brazing for Melting Furnace For Condensed and Radiator Cores

Product introductions:

    The aluminium radiator brazing furnace is used to braze aluminum heat exchangers such as radiators, intercoolers, evaporators,and heater radiator under protective nitrogen atmosphere. The flux used is NOCOLOK flux.


    Aluminum brazing furnace system with controllable atmosphere is mainly used for continuous brazing of aluminum water tank, oil cooler, intercooler, warm air, tubular condenser, evaporator, parallel flow condenser, cascade evaporator, air cooler of power station under nitrogen protection atmosphere.


Production flow of continuous nitrogen brazing furance:

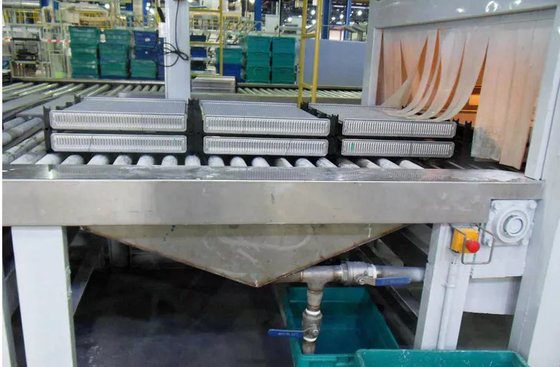

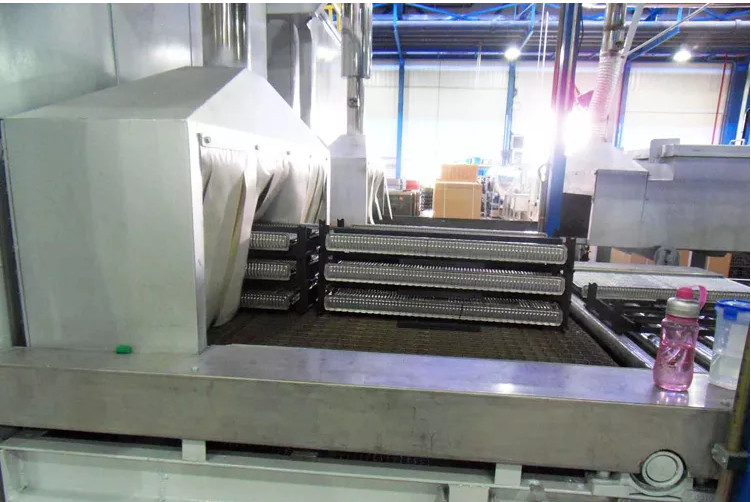

loading workpiece → flux spraying → drying → going through front curtain room (with nitrogen) → brazing (with nitrogen) → slag removing (nitrogen pre-heating) → going through static cooling room → going through rear curtain room (with nitrogen) → going through compulsive air cooling room → manual taking off cores from belt


Product patameters:

Serial number Name Length*Width*Height Material
1 Spray zone 7000*1360*250mm Spray room is 304 Stainless steel,The main frame is used low carbon steel for welding
2 External size of drying furnace 8000*1850*2000mm

The outside frame is processed and welded from low carbon steel material



3 Internal size of drying furnace 8000*1050*250mm Internal plate 304 Stainless steel,thickness 2mm
4 External size of burning furnace 10000*2150*1900mm

The outside frame is processed and welded from low carbon steel material


5 Internal size of burning furnace 1000*1050*250mm Muffle 316L stainless steel, thickness of 8mm length use the whole sheet for bending without splicing
6 External size of Air cool room 6000*1360*1900mm

Processed and welded from low carbon steel material


7 Mesh belt Width 1000mm Filament diameter3.2mm Brazing zone 316L Other parts 304 Stainless Steel
8 The total length of the equipment 35.5m




a) Natural gas burners and control solenoid valves are all well-known Sinon brand in China.
b) Each burner is equipped with an independent gas valve control system.

C) The temperature controller automatically adjusts the flame size by air-fuel ratio to achieve uniform temperature control.
d) The drying oven adopts independent conveyor belt and stepless variable frequency speed drive system.
e) Cleaning and maintenance openings are arranged on one side of the furnace body.

f) The preheater is equipped with a heat exchanger for heat recovery and utilization. The heat discharged can be reclaimed twice to the drying oven for use, and the air is preheated to save energy.

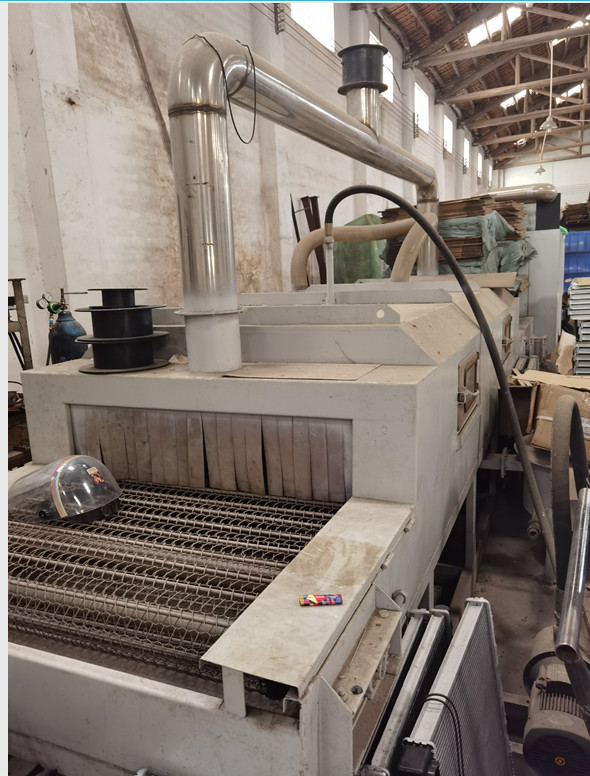

1000mm / Min Aluminium Radiator Brazing Furnace With Controllable Atmosphere 0



About us:
     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
     With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.

1.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.

2.Does the aluminum Brazing furnace machine is customized or standard size?
The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.

3.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.

4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided
