PLC Radiator Clinching Machine Radiator Car Water Tank Crimping Machine

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Power Source Pneumatic Core Components PLC, Motor
Weight (KG) 3200 Radiator Core Height 100-800mm
Air Source 0.8Mpa
High Light

PLC Radiator Clinching Machine Radiator


Pneumatic Clinching Machine Radiator

Leave a Message
Product Description

Autocar Radiator Clinching Tool Car Water Tank Crimping Machine Radiator Clinching Machine

Product Application:

The radiator water tank riveting machine is used to crimp the teeth of the header plate to lock the plastic water tank on the core. Combine the radiator core main board, sealing ring and plastic water chamber together. This servo-type plastic can buttoning machine is used to process products of various specifications. The crimping group worked step by step. Water tank crimping machine is also called crimping machine, water tank crimping machine, radiator water tank crimping machine, plastic water tank crimping machine, etc.



Product Parameter:


SPECIFICATIONS FOR High Quality Radiator Plastic Tank Clinching Machine
Core Size
Header to header distance
from 350-950mm
Header length
100 to 800 mm
Cores per hour
about 25 cores per hour
Working Mechanism
servo and pneumatic Integral method
Overall Dimension
Machine Weight
Net Weight



Main Features

1) The radiator clinching machine is PLC controlled, and the crimping program is set up through the touch screen.

2) The touch screen of the clinching machine can indicate the working status, and the control system stores radiator crimping parameters.

3) The long side header clinching mechanism is moved by the hydraulic power.

3) The machine can crimp the header at 4 sides by one cycle. The hydraulic power is much more stable.

4) The equipment can have dodge moves and step-forward moves.

5) The company also supplies semi-automatic separate side radiator clinching machine, manual clinching machine, fast type radiator clinching machine, hydraulic radiator clinching machine, etc.

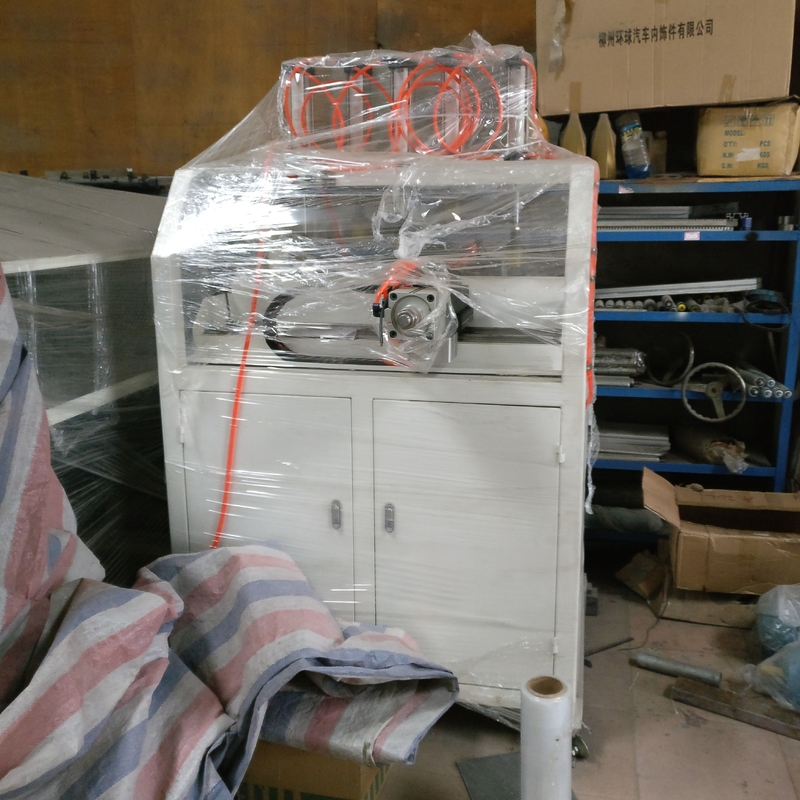

PLC Radiator Clinching Machine Radiator Car Water Tank Crimping Machine 0



About us:

Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years.The main products are radiator crimping machine,core builder machine, radiator fin forming machine,ultrasonic cleaning machine,vacuum plastic packaging machines,aluminum cooling system brazing furnace,Air tightness testing machine for condenser radiator,aluminum foil for radiator fin,aluminum sheet for radiator head plate,aluminum radiator componets headplate,punching and shearing oil,aluminium flux.

Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
