220V Radiator Making Machine 9500mm Core High 0.6Mpa Pressure

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
High Light

0.6Mpa Radiator Making Machine

,

9500mm Core High Radiator Making Machine

Leave a Message
Product Description

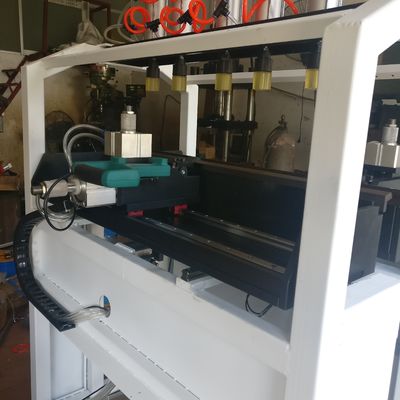

9500mm Core High 0.6Mpa Pressure 220V Power Radiator Making machine
Product introduction:
     9500mm Core High 0.6Mpa Pressure 220V Power Radiator Making machine is the necessary production equipment for aluminum plastic radiator factory. The device connects the plastic water chamber and the radiator core closely through the air cylinder drive to ensure that the coolant circulates in the radiator, which is the last process to complete the radiator manufacturing. The equipment is divided into manual, semi-automatic and automatic models. At present, the manual ones in the market are basically eliminated.
    The most commonly used features of the semi-automatic clinching machine are: low price, simple operation, energy saving, suitable for the production situation of many models and small quantity

Product features:
    More than 200 models can be set for positioning press production. It does not need to be pressed by hand, and can press the tab on the four sides of the core at the same time. High production efficiency and high speed. It is suitable for the production mode of single model and quantity production quantity.


Product quick details:

Programmable available Machine weight 1100kgs
warranty 12 months brand name SUNHOPE
usage automobile tank Surface treatment vertical bright, transition matte or two-way bright
mould can customise shape unregular
Driving mode Servo pneumatic Indenter width 20/30/40mm
Number of cylinders 8--12 Air pressure requirements 0.8Mpa
Core size 1000*900*56mm Voltage, power 220V/50Hz,2.5kw
Workstation 4 running speed adjustable
Maximum size of head plate 120mm production efficiency 60-80
Machine dimensions 1800*1600*1800mm Number of preset models 200models
OEM welcome Direction adjustment 3 direction




Quality assurance

  • Every production process has a special person to test to ensure quality
  • Have professional engineers to check the quality
  • All products have passed CE, FCC, ROHS and other certifications

220V Radiator Making Machine 9500mm Core High 0.6Mpa Pressure 0


About us:

1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

     Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.


FAQ:
1. Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.
2. How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A. The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B. The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C. The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.

3. Automatic crimping machine and semi automatic crimping machine,which one is better?
Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,
semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.

4. How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.
