Mesh Belt Transmission Power 2.2kw Face Height Of Mesh Belt 900mm
Maximum Height Of Workpiece 250mm Width Of Mesh Belt 1000mm
Heating Method Radiant Tube Heating
Highlight

2.2kw Aluminum Brazing Furnace

,

Radiant Tube Heating Aluminum Brazing Furnace

,

45m3/h Aluminum Brazing Furnace

Leave a Message
Product Description

Spray section Drying section Brazing section Control system Four parts assemble the brazing furnace



1,Features of equipment



  • Adopt the latest technology and high quality lining materials to ensure the heat preservation performance of the furnace body and have the remarkable effect of energy saving.



  • Fine and reasonable heating furnace partition, high precision advanced temperature control meter hardware selection and software parameter adjustment, so that the furnace temperature control precision is high (±0.2℃), the temperature difference of the product in the brazing area (575℃~650℃) is less than ±3℃;



  • Adoption of advanced frequency conversion speed control conveyor belt control system, so that the work-piece can achieve step-less variable transmission, precisely control the running time of work-piece in each heating zone, to ensure that the aluminum brazing heating curve accurately achieve;



  • Adopting the patented energy-saving technology that developed independently by our company, the nitrogen usage amount and total power of the equipment can be reduced by 40%-50% compared with similar products



  • Setting up the device of Spray zone is simple and is easy to use as well.The nozzle can ensure that the flux of brazing parts spray sufficient and uniform;The air blower ensures that the excess flux sprayed on the brazed parts is blown off clean.



  • The heating power of drying zone is strong and has high circulation wind speed in the furnace so that can ensure the work-piece into the brazing furnace dry thoroughly without residual moisture.



  • The technology of natural cooling zone in the brazing furnace ensure the weld link of aluminum brazing work-piece is fine and compact and has high welding strength of dense.



  • The air cooling area has strong air cooling ability, small vibration and low noise, which can protect the operator and make indoor environment clean and comfortable to the maximum extent.



  • The advanced and perfect control system realizes the integration of production, intelligence, control, warning and protection system to ensure the safe and reliable operation of the production line.



2,General introduction of equipment



Controlled atmosphere aluminum brazing furnace system, mainly used for aluminum radiator, oil cooler, inter-cooler, heater, tube-fin condenser,the evaporator, parallel flow condenser, laminated evaporator, power station air cooler and other aluminum work-piece products that can continuously brazed in a nitrogen atmosphere.



Controlled atmosphere aluminum furnace system includes:

Spray zone, drying zone, brazing zone, cooling zone, central centralized control cabinet group and other parts,etc.



The brazing zone includes preheating chamber, heating chamber, retarded cooling chamber and air cooling chamber, etc.



Controlled atmosphere aluminum furnace system includes a spray system, a drying furnace, a set of control atmosphere brazing furnace and a cooling system.The controlled atmosphere brazing furnace has a preheating chamber with an atmosphere curtain and behind that is the brazing area from which the product will be go through a retarded cooling chamber with an atmosphere curtain to make the work-piece weld and fix . The temperature of the work-piece from the retarded cooling chamber is about 300℃ and then the temperature of the work-piece is reduced again through the air cooling chamber to make the manual operation convenient.



Product parameter:

Brazing zone

Power supply 380V Three phase 50HZ

Rated power 155.5KW

Rated temperature 650℃±3℃

Heating method Radiant tube heating

Width of mesh belt 1000mm(316L Stainless Steel Braiding)

Maximum height of workpiece 250mm

Mesh belt transmission speed 200—1500mm/min(Continuously adjustable)

Face height of mesh belt 900mm

Mesh belt transmission power 2.2KW


Temperature

Control

Five sections of ten areas(Ten temperature monitor points)

Nitrogen consumption About 35~45m 3/h




Heating up time



3h(Related to the production environment)

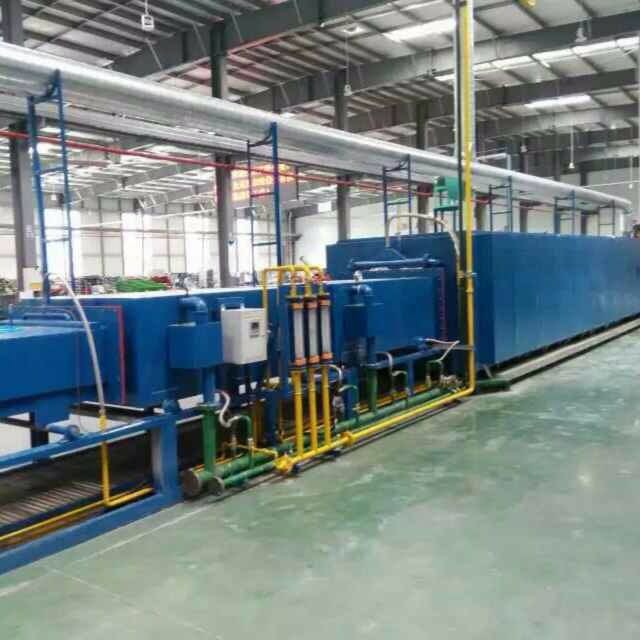

2.2kw Spray Drying Section Aluminum Brazing Furnace Control System Four Parts 0
