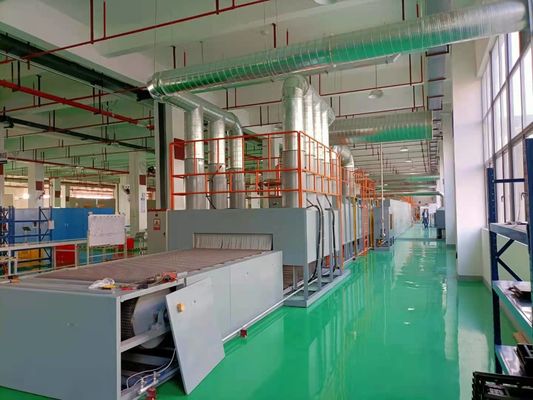

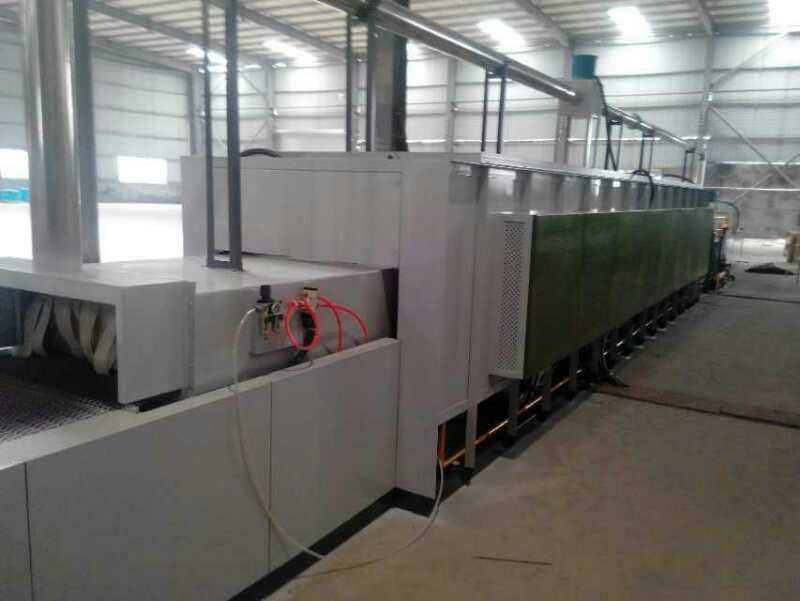

Three Phases 380V Aluminum Brazing Furnace 575-650 Temperature

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Temperature 650℃±3℃ Maximum Height Of Workpiece 250mm
Mesh Belt Transmission Speed 200—1500mm/min Face Height Of Mesh Belt 900mm
Mesh Belt Transmission Power 2.2KW
High Light

380V Aluminum Brazing Furnace

,

Three Phases Aluminum Brazing Furnace

,

1500mm / Min Aluminum Brazing Furnace

Leave a Message
Product Description

575-650 Temperature Brazing section Three phases 380V Aluminum Brazing furnace



Product introduction:



1.Control thermocouple



The control thermocouple that place muffle is in the middle of each area, so that can control the parts to have a precise temperature control.



2. Furnace shell



Furnace shell is made of welded steel frame and bending steel plate.The top of the furnace is a removable structure.It is connected to the furnace side wall with bolt.Side cover plates are provided on both sides to prevent danger caused by personnel touching the heating element connector lug.



3.Thermal insulating layer



The thermal insulation layer has excellent heat insulation ability and ground heat storage ability, reduce the heat loss of furnace, reduce the rising of surface temperature of furnace wall, and can save energy for customers.



 4.Air curtain

The equipment in the furnace preheating room and retarded cooling room is arranged with multiple rows of replaceable atmosphere curtains to reduce the consumption of atmosphere.There are multiple openings for convenience when needed,to make the replacement or maintenance of the atmosphere curtain simple and easy.The atmosphere curtain is made of stainless steel foil.







Product parameters:

Power supply 380V Three phase 50HZ

Rated power 155.5KW

Rated temperature 650℃±3℃

Heating method Radiant tube heating

Width of mesh belt 1000mm(316L Stainless Steel Braiding)

Maximum height of workpiece 250mm

Mesh belt transmission speed 200—1500mm/min(Continuously adjustable)

Face height of mesh belt 900mm

Mesh belt transmission power 2.2KW


Temperature

Control

Five sections of ten areas(Ten temperature monitor points)

Nitrogen consumption About 35~45m 3/h






Three Phases 380V Aluminum Brazing Furnace 575-650 Temperature 0



About us:

      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.

     At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.

     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.What’s the style of spray of the aluminum Brazing furnace machine?

The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.



2.Does the aluminum Brazing furnace machine is customized or standard size?

The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.



3.Does the aluminum Brazing furnace machine use gas?

The aluminum Brazing furnace machine can use natural gas as a productive energy source.



4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?

The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
