10000*1000*250mm Tunnel Aluminum Brazing Furnace Cooling System 620 Degree 600mm / Min
|Mesh Belt Operating Surface Height||900mm||Width Of Brazing Furnace||1000mm|
600mm / Min Aluminum Brazing Furnace,
620 Degree Aluminum Brazing Furnace,
Cooling System Aluminum Brazing Furnace
10000*1000*250mm Tunnel Size Aluminum Brazing Furnace Cooling System 620degree
A. The shell is composed of Q235-6mm thick steel plate and structural steel.The top is fixed and sealed by bolts and the side for easy maintenance;
B. The top, wall and bottom of the furnace are equipped with needled blanket fiber cotton insulation materials.The roof insulation material will be attached to the removable roof On the cover.The use of needled blanket fiber cotton insulation can ensure low heat storage and easy to control the temperature;The insulation layer is made of ceramic fiber needled blanket made by Shandong Luyang Stock Co., Ltd., which has excellent thermal insulation performance and can save more than 30% electric energy when heating up.
C. The helical electric heating wire is inserted into the furnace body from the side through the insulating porcelain tube, and the opening is blocked with the ceramic plug head to prevent heat loss and facilitate the replacement;
D. MUFFLE adopts SUS304-6mm, SUS316L-6mm plate of TISteel. After a large folding machine, the furnace MUFFLE has a folding length of 6 meters, and a V-shaped groove is pressed at the bottom.
E. Stainless steel towing rail is used at the bottom of muffle to facilitate muffle sliding by thermal expansion and cold contraction;
F. Two nitrogen pipelines and one thermocouple for temperature measurement are installed inside muffle;

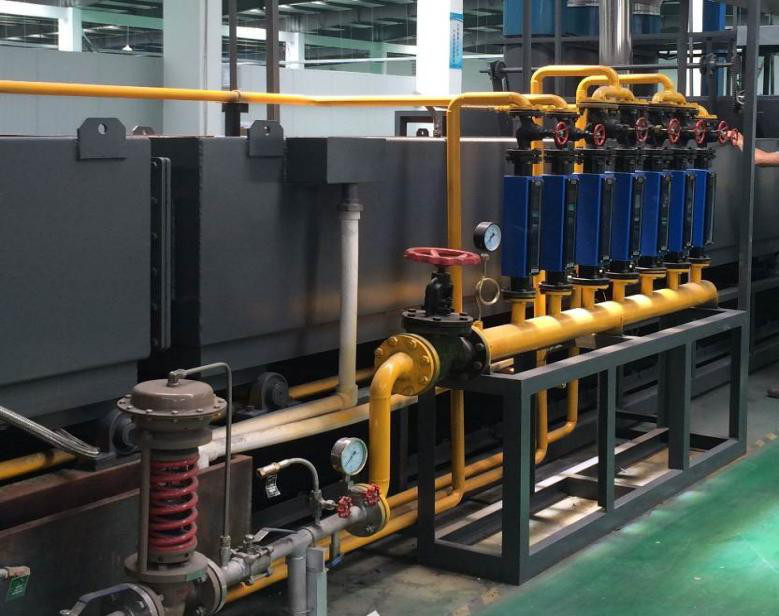

G. Nitrogen pipeline flowmeter is installed below the static cooling chamber, which can adjust the three-way flow of the inlet of the front curtain chamber, the brazing furnace and the rear chamber;
H. The brazing furnace will be divided into 3 independent areas.The brazing chamber uses a plug-in heating element made of 0Cr25Al5 alloy, mounted separately on the top and bottom of the muffle of each brazing chamber.The heating design takes into account the thermal expansion and expansion rates of different components.All the information displayed shows the maximum capacity of each zone rather than the general production capacity.The actual amount of input will depend on the component.To be altered by particular and inherent differences;
|maximum service temperature||700℃|
|effective working size||1000mm(Mesh belt width)×250mm(Height of mesh belt)|
|The channel size||1050mm×300mm(Straight edge height)|
|Temperature control zone||6 points in Section 6 of Section 3 (temperature measurement)|
|Temperature measuring point layout||The upper and lower of each section + furnace temperature measurement|
|Temperature control mode||PID,The work pressure regulating|
|heating mode||resistance wire|
|length of heating zone||6M|
|conveying chain||SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm|
|Mesh belt operating surface height||900mm|
|Normal operating temperature||600～650℃|
|Furnace temperature uniformity||±3℃|
