800mm/Min High Temperature Continuous Furnace 650 Degree
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Orking Temperature||650 Degree Celcius||Dimension(L*W*H)||Custom Made|
|Energy Medium||Electricity||Power (kW)||700|
|Heating Method||Resistance Heating||Type||Resistance Furnace|
800mm/Min High Temperature Continuous Furnace,
650 Degree High Temperature Continuous Furnace,
10m Muffle Length Aluminum Brazing Furnace

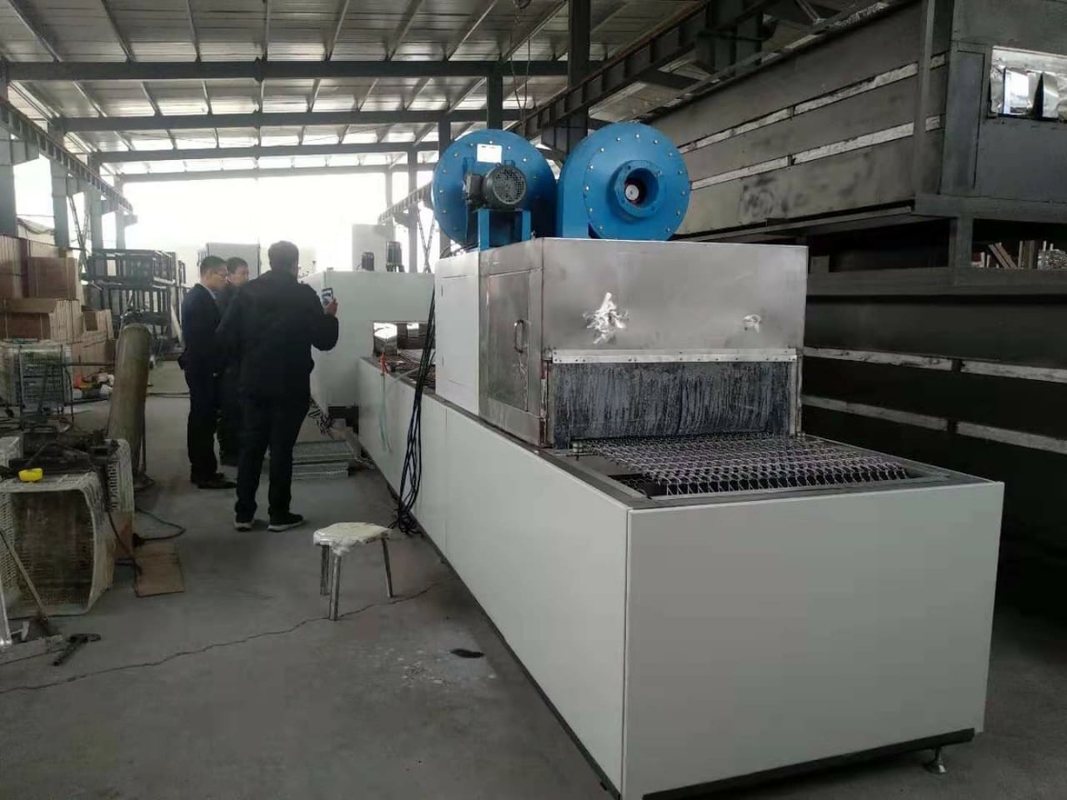

800mm/Min High Temperature Continuous Furnace 650degree
The aluminum radiator brazing furnace is used to braze aluminum heat exchangers such as radiators, intercoolers, evaporators, and heater radiator under protective nitrogen atmosphere. The flux used is NOCOLOK flux.The aluminum radiator brazing furnace is also called as brazing furnace, radiator brazing furnace, aluminum brazing furnace,continuous brazing.
Product quick details:
|Place of Origin:||Guangdong,china||Warranty:||1 Year|
|Condition:||New||After-sales Service Provided:||Engineers available to service machinery overseas|
|Type:||Resistance Furnace||Applicable Industries:||Manufacturing Plant|
|Usage:||Heat Treatment Furnace||muffle length:||10m|
|Brand Name:||Sunhope||mesh belt speed:||200-1000mm depending on furnace size|
|Voltage:||Requirement||rated working temperature:||650 degree celcius|
|Dimension(L*W*H):||Custom Made||cooling method:||water cooling or air cooling|
|Power (kW):||700||energy medium:||electricity|
1) The aluminum radiator brazing furnace adopts high performance porcelain fiber cotton material for heat preservation purpose. The furnace is able to rise to 630℃ from the ambient temperature in around 2 hours.
2) The muffle of the brazing oven is once-formed by the large size bending machine, and is made from Sweden 316L steel plate and 304 steel plate. 8M muffle is formed by one-time bending, and only there is one v-slot at the bottom of the muffle. The complete muffle is only with 2 side welding lines. The one-time forming muffle could reduce the misshapening effect at welding and also deformation at the heating process.
3) The zones of the brazing furnace are divided based on upper, lower, rear and back area. The heating power is adjusted through power and voltage regulator so that the furnace could achieve an ideal temperature uniformity of ±1℃. The brazing area could achieve a temperature uniformity of ±2℃ so that it could meet the brazing requirements.
4) The temperature controller has the PID regulation function to achieve a smooth temperature rise. Also the temperature controller has the over-temperature alarm. The mesh belt is steplessly regulated through the inverter. The driving mechanism is started up in the acceleration manner, and stopped in the deceleration manner to reduce the tension of the mesh belt.
5) the CAB aluminium radiator brazing furnace has a complete control system integrating intelligent control, alarm and protection system. The real-time temperature recording function provide the process data of different products.
6) The area of the fluxing chamber which contacts the flux is made of stainless steel material. The two side walls of the fluxing chamber are both set with an observation window to observe the fluxing performance. The fluxing nozzles have a 90º fan-shape spraying to prevent nozzle blockage. There is a filtering net for recycling the flux to prevent damage to the fluxing pump.
7) The dry air cooling room is set with a slag cleaning chamber. There is a side door of the slag cleaning chamber for allowing the worker to clean the flux slags. In comparison to the traditional water cooling chamber, the dry cooling room don't have the risk of corrosion because of water and deformation of the chamber because of cold and heat. There is no need for cooling water.
8) power at temperature rising stage: 100%; power at the brazing stage: ≤60%
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
1.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.
2.Does the aluminum Brazing furnace machine is customized or standard size?
The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.
3.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.
4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
