0.3mm Thickness Vertical Industry Silver Radiator Tube 42mm Width

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 5000PCS
Price negotiable
Packaging Details plywood case suitable for sea transportation
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10000-20000/one month
Product Details
Alloy Or Not Non-alloy Length Customers Requested
Usage Industry Material Aluminun Alloy
Product Name Aluminum Tube Color Silver
Surface Polished
High Light

0.3mm radiator tube

,

42mm radiator tube

,

0.3mm vertical tube radiators

Leave a Message
Product Description

0.3mm Thickness Vertical Industry Silver Radiator Tube 42mm Width

Product technology:

1. Mold design and processing technical ability:

It mainly includes the design and manufacturing technology of the hot extrusion die with very low extrusion breakthrough force and extremely high dimensional accuracy, special forming ability and strong wear resistance.The full application of wear resistance, heat resistance and super lubrication technology of the inner wall of the mold;Multi-point temperature precision control technology of single multi - co-extrusion die.

2. Technical ability of extrusion process control

It mainly includes the technology of constant temperature heating and constant velocity extrusion of the die barrel of the extruder.Gradient heating technology of casting rod;Porous micro-ultra-thin wall balanced extrusion, thermal energy elimination and to keep all the links do not produce product deformation factors and product defects technology;Single multi - product rewinding device and synchronous control technology, etc.

3. Comprehensive use of debugging ability

It mainly includes the ability to select, transform, debug and combine all kinds of equipment according to the requirements of product production;Online spraying zinc and control technology;On-line detection, defect marking and control feedback technology for solder roll coating;Product uncoiling, finishing, straightening and chip - free cutting technology.

4, the ability to strain and respond quickly

It is mainly manifested in the ability to find out the root causes of all kinds of problems in the production process in time and find solutions and rapid response mechanism.





Product features:

     High precision machining center processing, precision transmission parts to ensure that the aluminum strip precise and accurate molding, direct molding to ensure that the tube surface is not damaged, prolong the service life.

Precision high frequency welding

Precision high frequency welding machine, to ensure the quality of weld;

     The precision welding device ensures the precision welding of the accurately formed aluminum strip, and the weld pointer ensures the continuous and accurate positioning of the weld and keeps the energy of the welder focused on the weld continuously, without welding leakage and weld deflection.







Product parameters:

  specifications thickness(mm) width(mm)凌龙 weight(kg/m)
tube R16*1.4 0.3 34.1 0.0280302
R16*1.5 0.26 34.1 0.02429284
0.28 34.1 0.02616152
0.3 34.1 0.0280302
R16*1.7 0.28 34.4 0.02639168
0.3 34.4 0.0282768
R16*1.8 0.3 34.4 0.0282768
R16*1.9 0.3 34.6 0.0284412
R16*2.0 0.26 34.6 0.02464904
R16*2.0 0.265 34.6 0.02512306
0.265 34.6 0.02512306
0.28 34.6 0.02654512
0.3 34.6 0.0284412
0.32 34.6 0.03033728
0.35 34.6 0.0331814
R18*1.5 0.3 38 0.031236
R18*2.0 0.3 38.6 0.0317292
R20*1.5 0.3 42 0.034524
R20*2.0 0.3 42.6 0.0350172
R22*1.5 0.3 46.1 0.0378942
R22.5*1.5 0.3 46.4 0.0381408
R22*2.0 0.26 46.6 0.03319784
0.28 46.6 0.03575152
0.3 46.6 0.0383052
0.32 46.6 0.04085888
R23.5*2.0 0.3 49.6 0.0407712
0.28 49.6 0.03805312
0.3 49.6 0.0407712
R24*1.2 0.3 49.6 0.0407712
R24*2.0 0.3 50.5 0.041511
R26*1.2 0.265 53.7 0.03899157
R26*1.4 0.28 54 0.0414288
0.3 53.8 0.0442236
R26*1.5 0.3 54 0.044388
R26*1.75 0.3   0
0.32   0
R26*1.8 0.3 54.2 0.0445524
R26*2.0 0.265   0
0.28   0
0.3 54.4 0.0447168
0.32 54.4 0.04769792
0.35 54.4 0.0521696
0.4 54.3 0.0595128
R27*1.2 0.265 55.7 0.04044377
R27*2.0 0.3 56.4 0.0463608
29*2.88 0.3 61.5 0.050553
R30*2.0 0.3 62.5 0.051375
R32*1.5 0.3 66 0.054252
R32*1.8 0.3 66.2 0.0544164
R32*2.00 0.3 66.5 0.054663
0.32 66.5 0.0583072
0.35 66.5 0.0637735
0.4 66.4 0.0727744
R40*2.0 0.35 82.6 0.0792134
R42*2.0 0.3 86.4 0.0710208

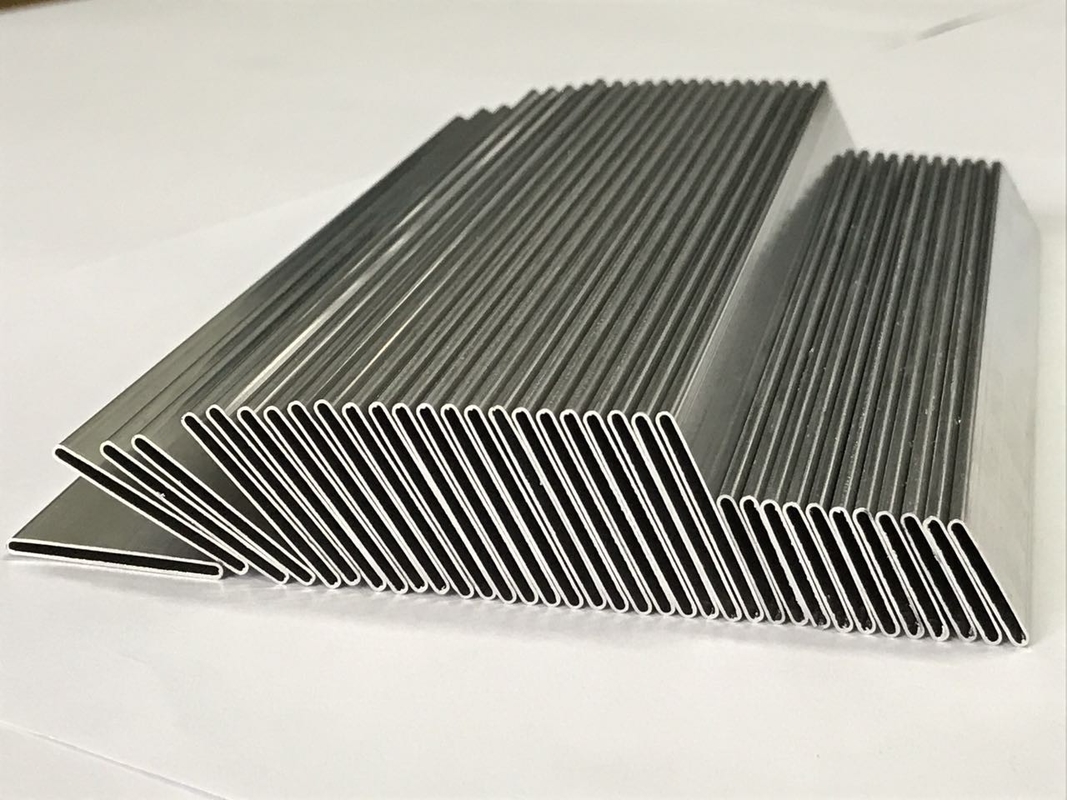

0.3mm Thickness Vertical Industry Silver Radiator Tube 42mm Width 00.3mm Thickness Vertical Industry Silver Radiator Tube 42mm Width 1



About us:

1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

      If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.







FAQ:

1.Why do you choose our company to buy the radiator parts?

Our company manufactures and develops hardware moulds by ourselves,we owes over 200 different specifications moulds of head plates ,which covers most of hot sale cars model in the market.



2.Why do you provide the producing equipment of radiator at the same time?

Our company has over 10 years experience in manufacturing the radiator,we are very familiar with all kinds of performance of equipment in the process of manufacturing the radiator.We are able to introduce the customers what’s the best equipment for them according to our experience.



3.Does the after-sales service provided by your company have any advantages?

Because we are also the users of equipment,we have a better understanding in the potential problem which maybe appears in the process of production of equipment.We can provide the fastest and right solution for our customers.



4.Does your company provide after-sales service to the equipment?

Our company has a long term working relationship with the equipment provider,we are very happy to offer the best after-service to our customers.



5.What’s the advantages of your company?

Our company makes our effort to provide the one-stop service to our customers who are going to develop manufacturing the radiators,which is from designing and setting up the factory , completing set of equipment to the supply of all kinds of components of radiators.All of this can be one-stop procurement in our company.We make sure the components and the production equipment can be match perfectly so that can manufacture the qualified and high quality products.
