Heat Treatment 250mm Length 500mm/Min Aluminum Brazing Furnace

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Cooling Method Water Cooling Or Air Cooling Energy Medium Electricity
Heating Element Resistance Wire Heating Method Resistance Heating
Use Aluminum-aluminum Welding; Copper-copper Welding, Etc Mesh Belt Speed 200-1000mm Depending On Furnace Size
High Light

47m Length Aluminum Brazing Furnace

,

500mm/Min Aluminum Brazing Furnace

,

500mm/Min Aluminium Radiator Brazing Furnace

Leave a Message
Product Description

Heat Treatment 250mm Length 500mm/Min Aluminum Brazing Furnace

Product quick details:

Place of Origin: Guangdong,china Warranty: 1 Year
Condition: New After-sales Service Provided: Engineers available to service machinery overseas
Type: Resistance Furnace Applicable Industries: Manufacturing Plant
Usage: Heat Treatment Furnace muffle length: 10m
Brand Name: Sunhope mesh belt speed: 200-1000mm depending on furnace size
Voltage: Requirement rated working temperature: 650 degree celcius
Dimension(L*W*H): Custom Made cooling method: water cooling or air cooling
Certification: CE protective atmosphere: nitrogen
Power (kW): 700 energy medium: electricity
Brand: Sunhope Power(W): Adjustable
Weight: 2T-35T





Product advantages:
1). Driving system of mesh belt: Driving the stailess steel roller with high temperature resistant through the chain wheel to circulatory drag mesh belt move into the chamber, which can expanding the service life of mesh belt and Reducing furnace heat loss, meanwhile improving more high thermal efficiency.
2). Equipped the fan inside of furnace to ensure temperature uniform and protect (carburizing) atmosphere evenly dispersed, which can improve the carburizing speed and workpiece quality.
3). On the rear of furnace equipped with an exhaust fan for timely discharge waste gas and improve gloss of workpiece surface.
4). On the bottom of the furnace body is equipped with slag removal mouth, which can convenient and clean up the slag.
5). New sealing design of furnace door can save 55-65% atmospher consumption, and also deep permeation, 30-40% higer efficiency than before under the pressure at ≥10-100Pa.



Product techinical parameters:

Reference Product Radiator
Heating Method Electricity
Maximum Usable Height About Mesh-belt 250mm
Mesh-belt Speed Range 200-1000mm/min
Mesh-belt Width 1000mm
Loading Surface Height 850mm
Power Rated Power: 700KW
Total Length About 47meters

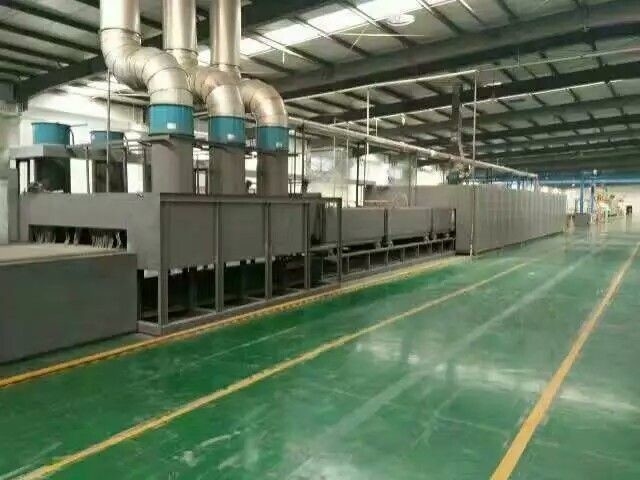

Heat Treatment 250mm Length 500mm/Min Aluminum Brazing Furnace 0Heat Treatment 250mm Length 500mm/Min Aluminum Brazing Furnace 1



About us:
     With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.




FAQ:

1.What’s the style of spray of the aluminum Brazing furnace machine?

The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.



2.Does the aluminum Brazing furnace machine is customized or standard size?

The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.



3.Does the aluminum Brazing furnace machine use gas?

The aluminum Brazing furnace machine can use natural gas as a productive energy source.



4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?

The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
