380V 4m-20m Mesh Belt Furnace Brazing Equipment For Automobile Radiators
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380V (customized) | Brazing Section Temperature | 650 |
|---|---|---|---|
| Type | Resistance Furnace | Dimension(L*W*H) | Custom Made |
| Power (kW) | 700 | Heat Source | Electric Heating (natural Gas Is Optional) |
| High Light | 380V furnace brazing equipment,H250mm Mesh Belt furnace brazing equipment,380V hydrogen brazing furnace |
||
Product Description

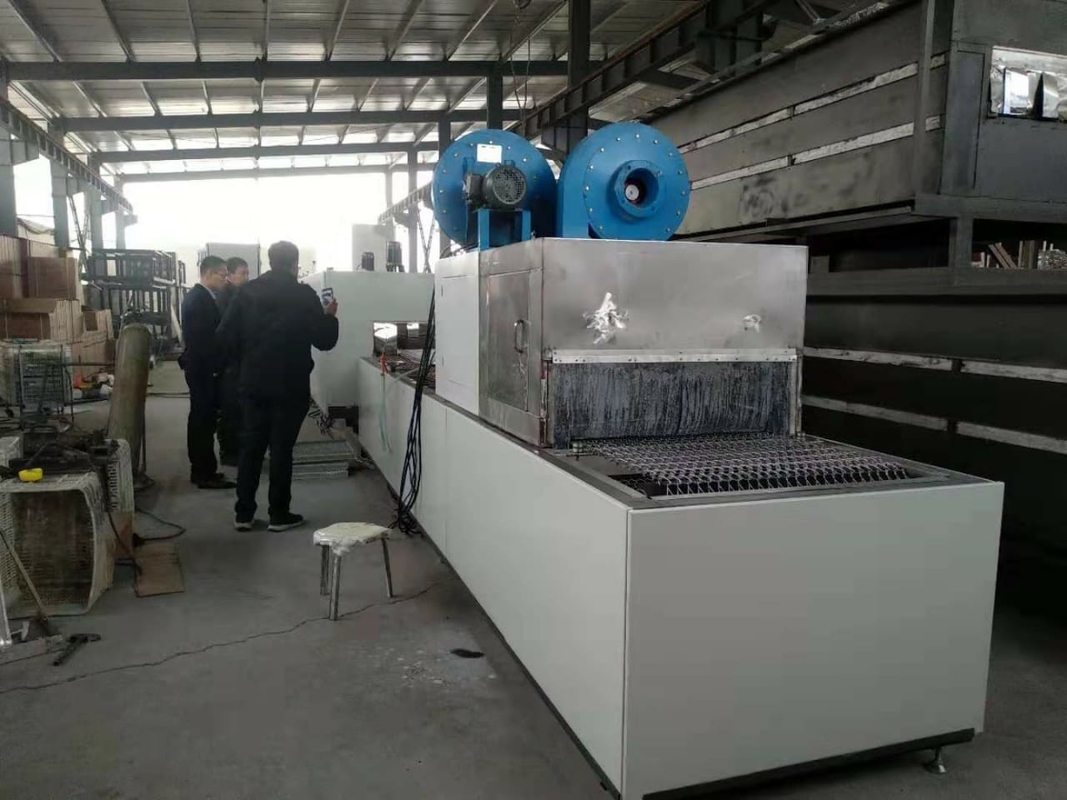

380V 4m-20m Mesh Belt Furnace Brazing Equipment For Automobile Radiators
Product advantages:
1). Driving system of mesh belt: Driving the stailess steel roller with high temperature resistant through the chain wheel to circulatory drag mesh belt move into the chamber, which can expanding the service life of mesh belt and Reducing furnace heat loss, meanwhile improving more high thermal efficiency.
2). Equipped the fan inside of furnace to ensure temperature uniform and protect (carburizing) atmosphere evenly dispersed, which can improve the carburizing speed and workpiece quality.
3). On the rear of furnace equipped with an exhaust fan for timely discharge waste gas and improve gloss of workpiece surface.
4). On the bottom of the furnace body is equipped with slag removal mouth, which can convenient and clean up the slag.
5). New sealing design of furnace door can save 55-65% atmospher consumption, and also deep permeation, 30-40% higer efficiency than before under the pressure at ≥10-100Pa.
Product quick details:
| Warranty: | 1 Year | Place of Origin: | Guangdong,china |
| After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
| Applicable Industries: | Manufacturing Plant | Type: | Resistance Furnace |
| muffle length: | 10m | Usage: | Heat Treatment Furnace |
| mesh belt speed: | 200-1000mm depending on furnace size | Brand Name: | Sunhope |
| rated working temperature: | 650 degree celcius | Voltage: | Requirement |
| cooling method: | water cooling or air cooling | Dimension(L*W*H): | Custom Made |
| protective atmosphere: | nitrogen | Certification: | CE |
| energy medium: | electricity | Power (kW): | 700 |
| Power(W): | Adjustable | Brand: | Sunhope |
| Weight: | 2T-35T |
Product technical parameters:
| Reference Product | Radiator |
| Heating Method | Electricity |
| Maximum Usable Height About Mesh-belt | 250mm(custom made) |
| Mesh-belt Speed Range | 200-1000mm/min(custom made) |
| Mesh-belt Width | 1000mm(custom made) |
| Loading Surface Height | 850mm(custom made) |
| Power | Rated Power: 700KW |
| Total Length | About 47meters |
About us:
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.
2.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
3.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.
4.Does the aluminum Brazing furnace machine is customized or standard size?
The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.
