Air Cooling Industrial 900mm/Min Aluminum Continuous Brazing Furnace 700KW

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Resistance Furnace | Cooling Method | Water Cooling Or Air Cooling |
---|---|---|---|
Energy Medium | Electricity | Power (kW) | 700 |
Use | Aluminum-aluminum Welding; Copper-copper Welding, Etc | Dimension(L*W*H) | Custom Made |
Highlight | 900mm/Min aluminum vacuum brazing furnace,700KW aluminum vacuum brazing furnace,900mm/Min furnace brazing equipment |
Continuous Brazing Furnace Aluminum Continuous Braze Furnace for Automobile Radiators
Product Descriptions:
Highlight of vacuum brazing is a high vacuun, high cleanliness, and high-temperature uniformity, the most critical aspect as filler selection mancraft and process parameters. For the heat treatment of some tubular, thin and long, thin-wall pats, it is recommended adopting the vertical structure with top or bottom charge, thus the deformation problem can be solved effectively. Horizontal and vertical structure are provided, and meanwhile various non-standard equipment can be customized.

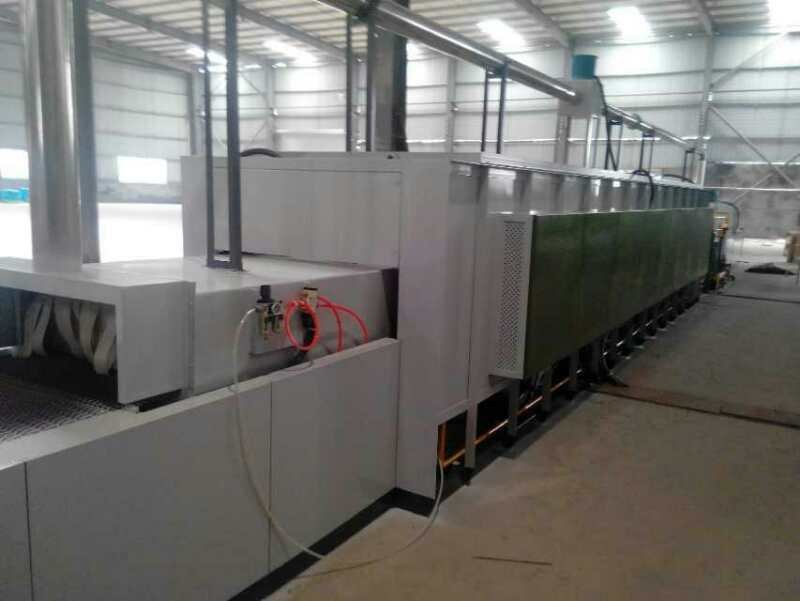

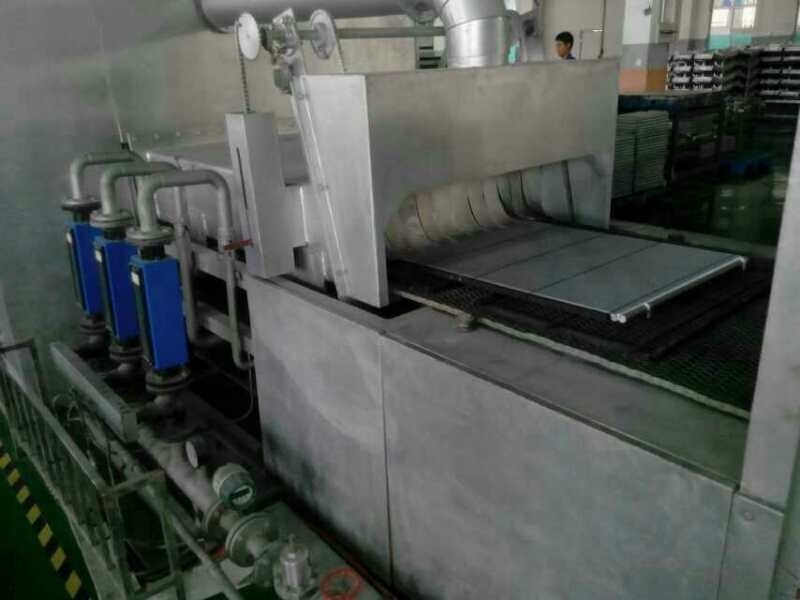

The Continuous Brazing Furnace Aluminum Vacuum Braze Furnace for Automobile Radiators is comprised of the following parts: round shape fluxer, flux mixing and supply device,the drying oven, the front curtain chamber, the preheating oven, the brazing oven, the air cooling chamber, the rear curtain
chamber, the air blast chamber, the driving system, the water and gas pipeline, the electrical control system.

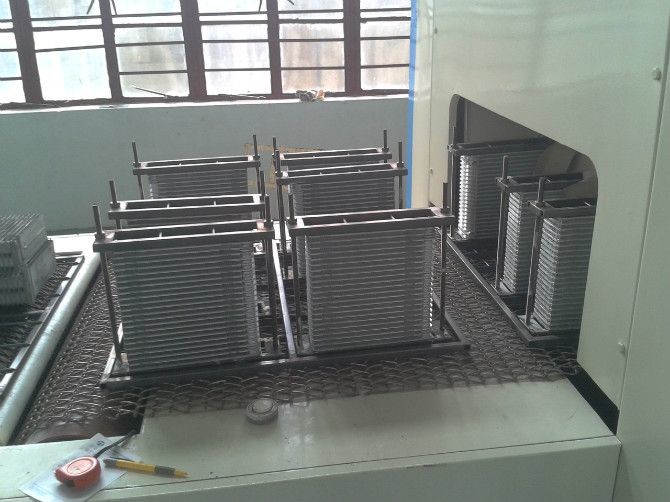

The aluminium radiator brazing furnace is used to braze aluminum heat exchangers such as radiators, intercoolers,
evaporators,and heater radiator under protective nitrogen atmosphere. The flux used is NOCOLOK flux.
The drying oven is an important part of the aluminium radiator brazing furnace line, and it decides the final brazing quality.
The radiators are well dried by the drying oven, and the dried parts are an important precondition of a high quality brazing process.
Supply Scope of Aluminum Brazing Furnace
|
A. Degreasing Chamber
B. Fluxing Chamber C. Drying Chamber D. Front Curtain Chamber system E. Heating Chamber F. Air Cooling System G. Rear Curtain Chamber H. Second Air Cooling System I. Control System J. Installation, Commissioning and Customer Training
|
Product quick details:
Place of Origin: | Guangdong,china | Warranty: | 1 Year |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Type: | Resistance Furnace | Applicable Industries: | Manufacturing Plant |
Usage: | Heat Treatment Furnace | muffle length: | 10m |
Brand Name: | Sunhope | mesh belt speed: | 200-1000mm depending on furnace size |
Voltage: | Requirement | rated working temperature: | 650 degree celcius |
Dimension(L*W*H): | Custom Made | cooling method: | water cooling or air cooling |
Certification: | CE | protective atmosphere: | nitrogen |
Power (kW): | 700 | energy medium: | electricity |
Brand: | Sunhope | Power(W): | Adjustable |
Weight: | 2T-35T |
Product technical parameters:
Reference Product
|
Radiator |
Heating Method |
Electricity
|
Maximum Usable Height About Mesh-belt | 250mm |
Mesh-belt Speed Range | 200-1000mm/min |
Mesh-belt Width | 1000mm |
Loading Surface Height | 850mm |
Power | Rated Power: 700KW |
Total Length | About 47meters |
About us:
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.
2.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
3.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.
4.Does the aluminum Brazing furnace machine is customized or standard size?
The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.
