Continuous 700KW Aluminum Brazing Furnace Industrial Electric

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Energy Medium Electricity Use Aluminum-aluminum Welding; Copper-copper Welding, Etc
Cooling Method Water Cooling Or Air Cooling Mesh Belt Speed 200-1000mm Depending On Furnace Size
Dimension(L*W*H) Custom Made Power (kW) 700
High Light

Continuous Aluminum Brazing Furnace


700KW Aluminum Brazing Furnace


700KW aluminium brazing furnace

Leave a Message
Product Description

 Industrial electric continuous mesh belt aluminum brazing furnace



Supply Scope of Aluminum Brazing Furnace
A. Degreasing Chamber
B. Fluxing Chamber
C. Drying Chamber
D. Front Curtain Chamber system
E. Heating Chamber
F. Air Cooling System
G. Rear Curtain Chamber
H. Second Air Cooling System
I. Control System
J. Installation, Commissioning and Customer Training



Product features:

1) The aluminum radiator brazing furnace line adopts high performance porcelain fiber cotton material for heat preservation purpose. The furnace is able to rise to 630℃ from the ambient temperature in around 2 hours.
2) The muffle of the brazing oven is once-formed by the large size bending machine, and is made from Sweden 316L steel plate and 304 steel plate. 10M muffle is formed by one-time bending, and only there is one v-slot at the bottom of the muffle. The complete muffle is only with 2 side welding lines. The one-time forming muffle could reduce the misshapening effect at welding and also deformation at the heating process.
3) The zones of the aluminium radiator brazing furnace are divided based on upper, lower, rear and back area. The heating power is adjusted through power and voltage regulator so that the furnace could achieve an ideal temperature uniformity of ±1℃. The brazing area could achieve a temperature uniformity of ±2℃ so that it could meet the brazing requirements.
4) The dry air cooling room is set with a slag cleaning chamber. There is a side door of the slag cleaning chamber for allowing the worker to clean the flux slags. In comparison to the traditional water cooling chamber, the dry cooling room doesn't have the risk of corrosion because of water and deformation of the chamber because of cold and heat. There is no need for cooling water.
5) power at temperature rising stage: 100%; power at the brazing stage: ≤60%


Product quick details:

Place of Origin: Guangdong,china Warranty: 1 Year
Condition: New After-sales Service Provided: Engineers available to service machinery overseas
Type: Resistance Furnace Applicable Industries: Manufacturing Plant
Usage: Heat Treatment Furnace muffle length: 10m
Brand Name: Sunhope mesh belt speed: 200-1000mm depending on furnace size
Voltage: Requirement rated working temperature: 650 degree celcius
Dimension(L*W*H): Custom Made cooling method: water cooling or air cooling
Certification: CE protective atmosphere: nitrogen
Power (kW): 700 energy medium: electricity
Brand: Sunhope Power(W): Adjustable
Weight: 2T-35T

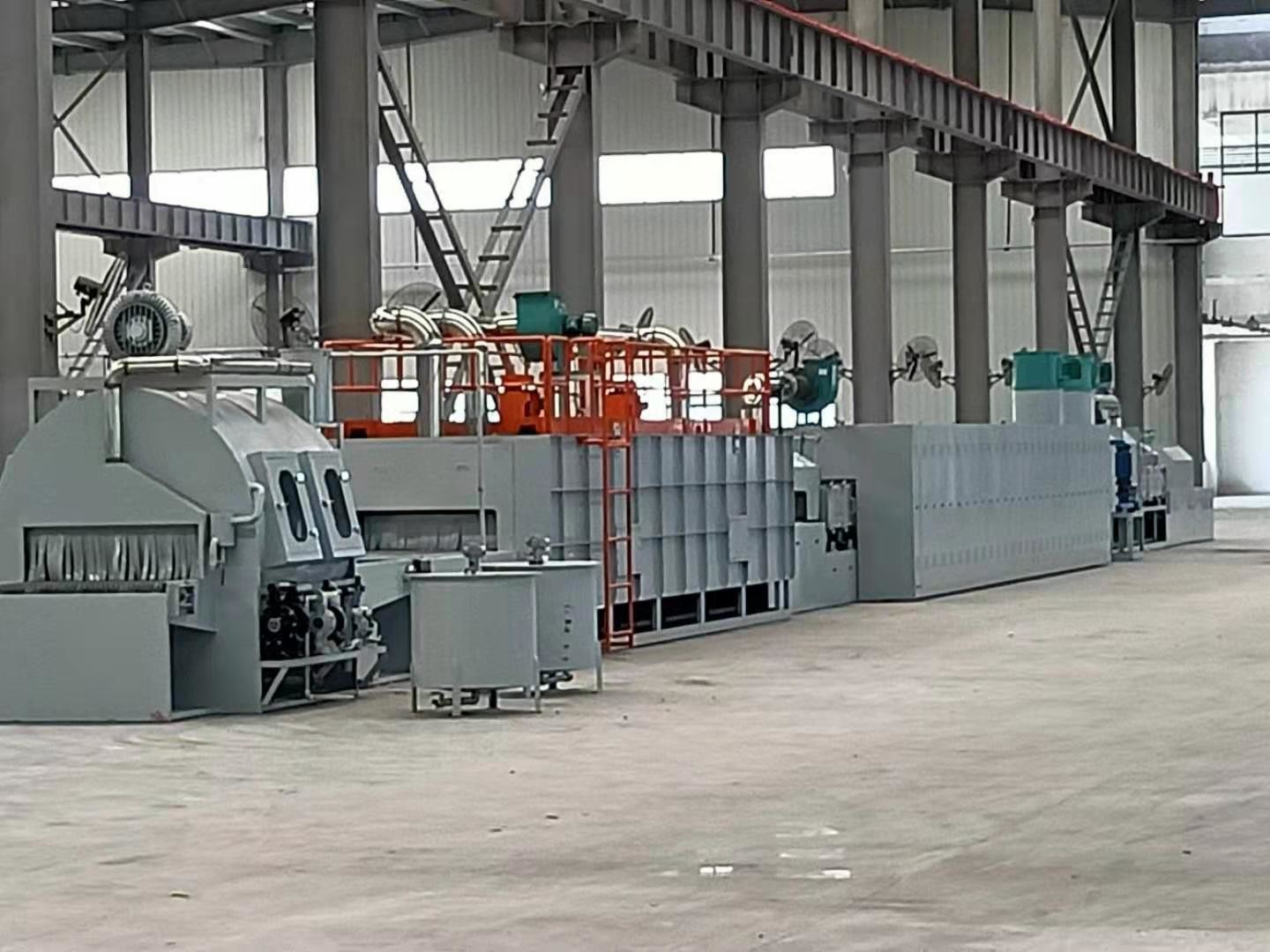

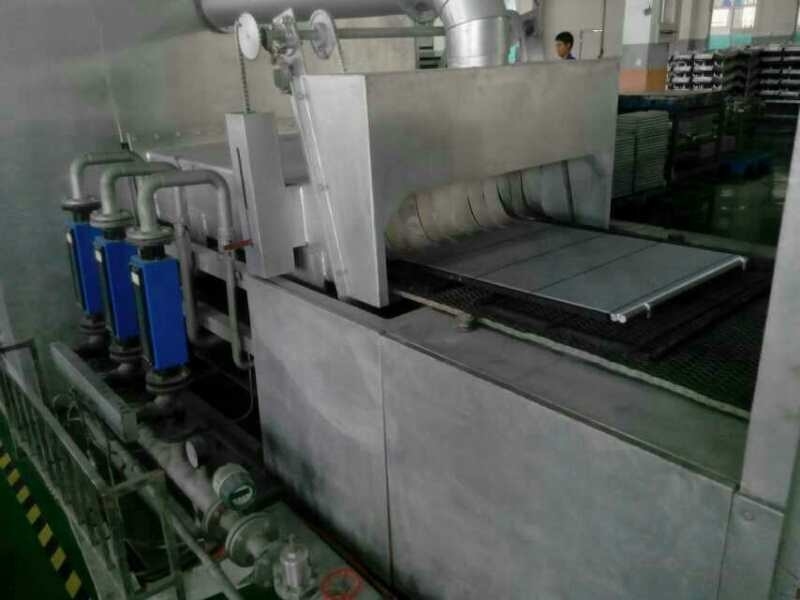

Continuous 700KW Aluminum Brazing Furnace Industrial Electric 0Continuous 700KW Aluminum Brazing Furnace Industrial Electric 1


About us:
    With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.




1.What’s the style of spray of the aluminum Brazing furnace machine?

The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.


2.Does the aluminum Brazing furnace machine is customized or standard size?

The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.


3.Does the aluminum Brazing furnace machine use gas?

The aluminum Brazing furnace machine can use natural gas as a productive energy source.


4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?

The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
