30m Length Brazing Furnace Aluminum Brazing Furnace , Continuous Brazing Furnace

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1set
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Working Station Size 1000mm×250mm Speed 150~600mm/min
Height Of Brazing Furnace 250mm Width Of Brazing Furnace 1000mm
Mesh Belt Operating Surface Height 900mm Length Of Brazing Furnace 6000mm
High Light

150mm/Min Aluminum Brazing Furnace

,

6000mm Length Aluminum Brazing Furnace

,

6000mm Length vacuum brazing furnace

Leave a Message
Product Description

30m Length Brazing Furnace Aluminum Brazing Furnace , Continuous Brazing Furnace

Product introductions:

    The equipment uses non corrosive soldering flux under the condition of nitrogen atmosphere protection. Suitable for continuous brazing of intercooler, radiator, condenser, evaporator, heater tank, oil cooler, water cooling plate of new energy vehicle, honeycomb plate of high-speed railway vehicle and aluminum heat exchanger for refrigerator and air conditioner.

       Our company mainly supplies the radiator making machines such as aluminum radiator fin machine, core builder, aluminum radiator plastic tank crimpingmachine, air leak tester, header mold, plastic tank mold, aluminium radiator brazing furnace, etc.

    It is mainly used for brazing aluminum parts in protective atmosphere. It is mainly composed of flux spraying machine, electric drying furnace, brazing heating furnace, water cooling and air cooling device, atmosphere control system and automatic control system. It is suitable for mass production of aluminum radiators such as parallel flow condenser, laminated evaporator and automobile water tank.



Product technology:

  • Degreasing furnace

  • spray room,

  • drying furnace

  • brazing furnace

  • cooling system

Product specifications:

maximum service temperature 700℃
effective working size 1000mm(Mesh belt width)×250mm(Height of mesh belt)
The channel size 1050mm×300mm(Straight edge height)
Temperature control zone 6 points in Section 6 of Section 3 (temperature measurement)
Temperature measuring point layout The upper and lower of each section + furnace temperature measurement
design power 240KW±10%
Temperature control mode PID,The work pressure regulating
heating mode resistance wire
length of heating zone 6M
conveying chain SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm
Mesh belt operating surface height 900mm
Normal operating temperature 600~650℃
Furnace temperature uniformity ±3℃

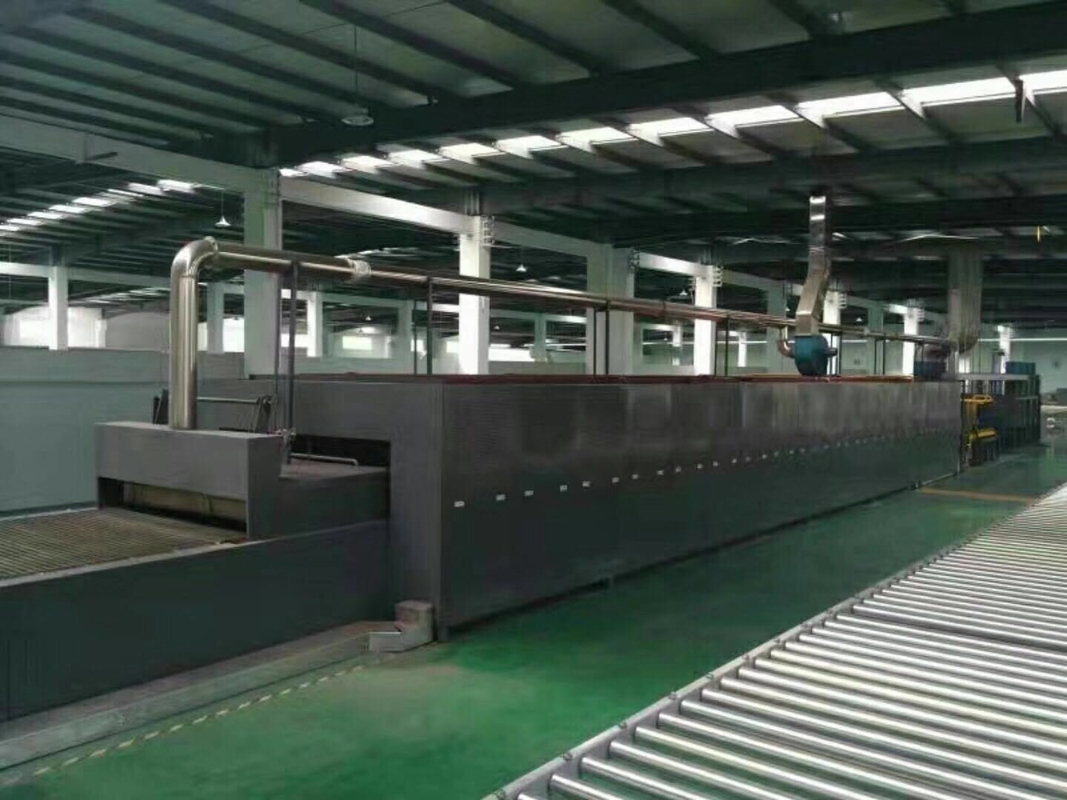

30m Length Brazing Furnace Aluminum Brazing Furnace , Continuous Brazing Furnace 030m Length Brazing Furnace Aluminum Brazing Furnace , Continuous Brazing Furnace 1



About us:

     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.What’s the style of spray of the aluminum Brazing furnace machine?

The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.



2.Does the aluminum Brazing furnace machine is customized or standard size?

The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.



3.Does the aluminum Brazing furnace machine use gas?

The aluminum Brazing furnace machine can use natural gas as a productive energy source.



4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?

The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
