Four Sides 0.8Mpa Plastic Radiator Tank Crimping Tool Semi Automatic
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Preset Models | Non. | Number Of Cylinders | 6--8 |
|---|---|---|---|
| Air Pressure Requirements | 0.8Mpa | Direction Adjustment | 3 Direction |
| Running Speed | Adjustable | Machine Dimensions | 1300*1200*1800 |
| High Light | Four Sides Plastic Radiator Tank Crimping Tool,0.8Mpa plastic radiator tank crimping tool,0.8Mpa radiator crimping tool |
||
Product Description

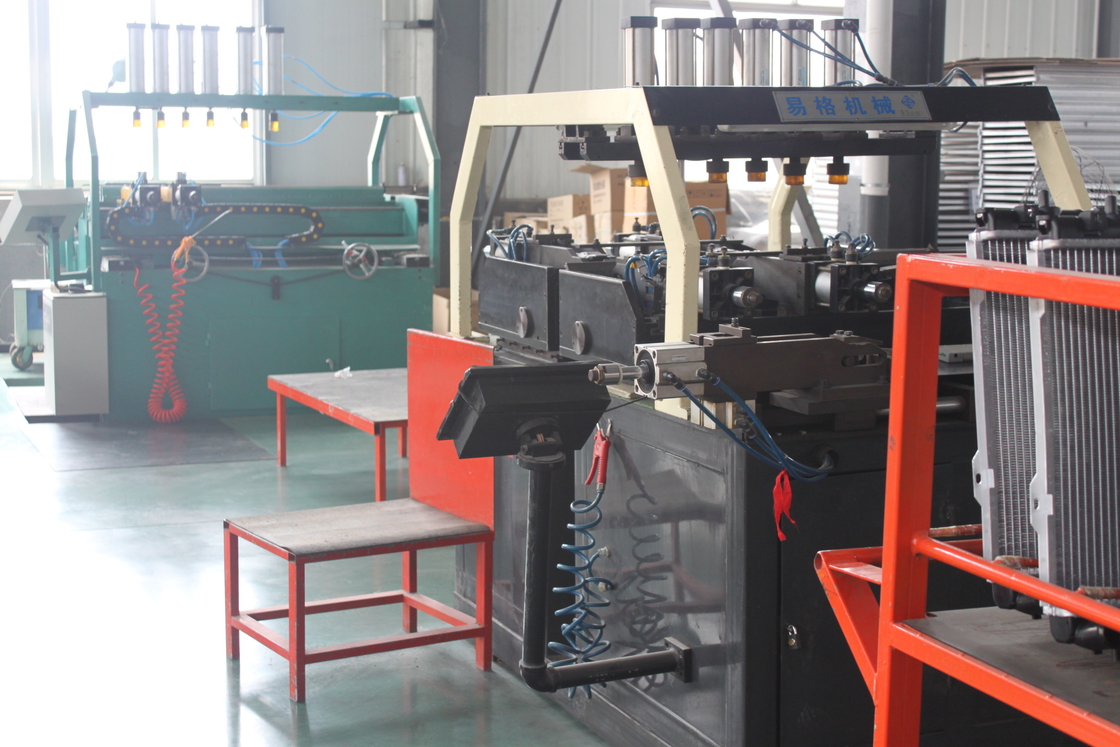

Four sides semi automatic radiator plastic tank crimping machine
Product advantages:
| A.One or two workers can operate at the same time |
| B. The side end needs to be manually pressed after the core is removed |
| C. Different width of tab pressing plate can be selected, |
| D. The stroke and force of the manipulator can be adjusted manually according to the needs |
Product application:
Widely used in producing the automobile tank and truck tank
Quality assurance
- Every production process has a special person to test to ensure quality
- Have professional engineers to check the quality
- All products have passed CE, FCC, ROHS and other certifications
Product quick details:
| warranty | 12 months | brand name | SUNHOPE |
| usage | automobile | Surface treatment | vertical bright, transition matte or two-way bright |
| mould | can customise | shape | unregular |
| design style | can customise | after-sale service | yes |
| OEM | welcome | Indenter width | 20/30/40mm |
| Driving mode | Pneumatics | Air pressure requirements | 0.8Mpa |
| Number of cylinders | 6--8 | Voltage, power | 220V/50Hz,2.5kw |
| Core size | 1000*900*56mm | running speed | adjustable |
| Workstation | 2 | production efficiency | 60sec. |
| Maximum size of head plate | 120mm | Number of preset models | Non. |
| Machine dimensions | 1300*1200*1800 | Direction adjustment | 3 direction |
| Machine weight | 800kg | Programmable | Non. |
About us :
Foshan Sunhope company is located in the beautiful Foshan city.The main products are radiator crimping machine,core builder machine, radiator fin forming machine,ultrasonic cleaning machine,vacuum plastic packaging machines,aluminum cooling system brazing furnace,Air tightness testing machine for condenser radiator,aluminum foil for radiator fin,aluminum sheet for radiator head plate,aluminum radiator componets headplate,punching and shearing oil,aluminium flux.
1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
FAQ:
1..Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.
2.How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.
3.How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.
