Height 250mm Mesh Belt 150-600mm/Min Aluminium Radiator Brazing Furnace

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Height Of Brazing Furnace 250mm Width Of Brazing Furnace 1000mm
Mesh Belt Operating Surface Height 900mm Length Of Brazing Furnace 6000mm
Working Station Size 1000mm×250mm Speed 150~600mm/min
High Light

H900mm Mesh Belt Aluminium Radiator Brazing Furnace


400mm/Min Aluminium Radiator Brazing Furnace


400mm/Min continuous brazing furnace

Leave a Message
Product Description

Height 250mm Mesh Belt 150-600mm/Min Aluminium Radiator Brazing Furnace
Product Theory:
1) The  NB continuous aluminum brazing furnace machine adopts high performance porcelain fiber cotton material for heat preservation purpose.
The furnace is able to rise to 630℃ from the ambient temperature in around 2 hours.
2) The muffle of the brazing oven is once-formed by the large size bending machine and is 304 steel plate.
10M muffle is formed by one-time bending, and only there is one v-slot at the bottom of the muffle. The one-time  forming muffle could reduce the misshapening effect at welding and also deformation at the heating process.
3) the aluminum radiator brazing furnace (or called as CAB furnace) has a complete control system integrating intelligent control,alarm and protection system. The real-time temperature recording function provide the process data of different products.
4) The zones of the furnace are divided based on upper, lower, rear and back area. The heating power is adjusted through PID  regulator so that the furnace could achieve an ideal temperature uniformity of ±1℃. The brazing area could achieve a temperature  uniformity of ±2℃ so that it could meet the brazing requirements.
5) The temperature controller has the PID regulation function to achieve a smooth temperature rise. Also the temperature controller  has the over-temperature alarm. The mesh belt is steplessly regulated through the inverter. The driving mechanism is started up in the acceleration manner, and stopped in the deceleration manner to reduce the tension of the mesh belt.
6) The area of the fluxing chamber which contacts the flux is made of stainless steel material. The two side walls of the fluxing chamber are both set with an observation window to observe the fluxing performance. The fluxing nozzles have a 90º fan-shape spraying to prevent nozzle blockage. There is a filtering net for recycling the flux to prevent damage to the fluxing pump.
Product introductions:
   It is mainly used for brazing aluminum parts in protective atmosphere. It is mainly composed of flux spraying machine, electric drying furnace, brazing heating furnace, water cooling and air cooling device, atmosphere control system and automatic control system. It is suitable for mass production of aluminum radiators such as parallel flow condenser, laminated evaporator and automobile water tank.

Product technology:

  • Degreasing furnace

  • spray room,

  • drying furnace

  • brazing furnace

  • cooling system

Product specifications:

Mesh belt operating surface height900mm
Normal operating temperature600~650℃
Furnace temperature uniformity±3℃
maximum service temperature700℃
effective working size1000mm(Mesh belt width)×250mm(Height of mesh belt)
The channel size1050mm×300mm(Straight edge height)
Temperature control zone6 points in Section 6 of Section 3 (temperature measurement)
Temperature measuring point layoutThe upper and lower of each section + furnace temperature measurement
design power240KW±10%
Temperature control modePID,The work pressure regulating
heating moderesistance wire
length of heating zone6M
conveying chainSUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm

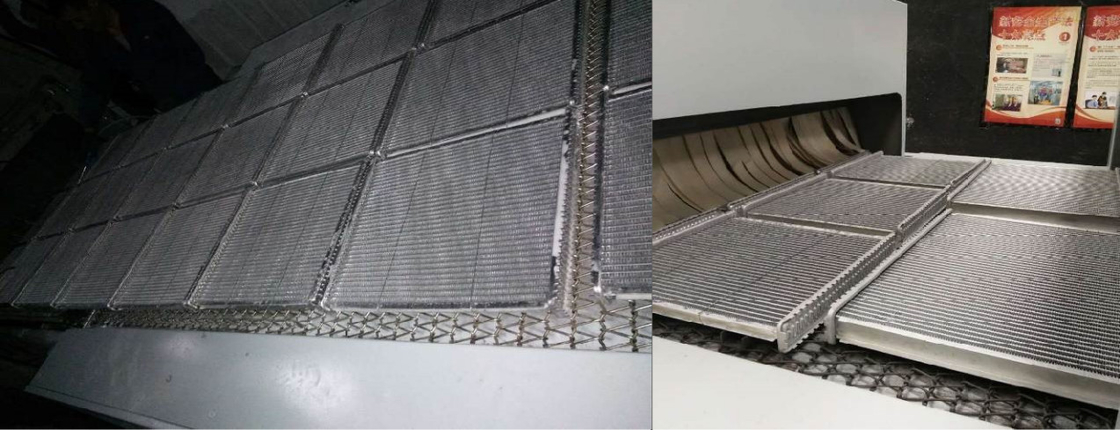

Height 250mm Mesh Belt 150-600mm/Min Aluminium Radiator Brazing Furnace 0
About us:
     Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
1.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.
2.Does the aluminum Brazing furnace machine is customized or standard size?
The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.
3.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.
4.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
