1000mm Width Mesh Belt Aluminium Brazing Furnace Nitrogen Protection

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Working Station Size 1000mm×250mm Mesh Belt Operating Surface Height 900mm
Speed 150~600mm/min Length Of Brazing Furnace 6000mm
Width Of Brazing Furnace 1000mm Height Of Brazing Furnace 250mm
High Light

W900mm Mesh Belt aluminium brazing furnace

,

itrogen Protection aluminium brazing furnace

,

itrogen Protection aluminum vacuum brazing furnace

Leave a Message
Product Description

1000mm Width Mesh Belt Aluminium Brazing Furnace Nitrogen Protection

Product introductions:

    The Nitrogen protection aluminum Brazing furnace works under the nitrogen protective atmosphere and employs non-erosive brazing material.

    The continuous  aluminium radiator brazing furnace is applied to brazing of aluminum intercooler, radiator, automobile air conditioning condenser,

evaporator, aluminum oil cooler, etc.



    Our company mainly supplies the radiator making machines such as aluminum radiator fin machine, core builder, aluminum  radiator plastic tank crimpingmachine, air leak tester, header mold, plastic tank mold, aluminium radiator brazing furnace, etc.

     It is mainly used for brazing aluminum parts in protective atmosphere. It is mainly composed of flux spraying machine, electric drying furnace, brazing heating furnace, water cooling and air cooling device, atmosphere control system and automatic control system. It is suitable for mass production of aluminum radiators such as parallel flow condenser, laminated evaporator and automobile water tank.



Product charcateristics:

A. The shell is composed of Q235-6mm thick steel plate and structural steel.The top is fixed and sealed by bolts and the side for easy maintenance;

B. The top, wall and bottom of the furnace are equipped with needled blanket fiber cotton insulation materials.The roof insulation material will be attached to the removable roof On the cover.The use of needled blanket fiber cotton insulation can ensure low heat storage and easy to control the temperature;The insulation layer is made of ceramic fiber needled blanket made by Shandong Luyang Stock Co., Ltd., which has excellent thermal insulation performance and can save more than 30% electric energy when heating up.

C. The helical electric heating wire is inserted into the furnace body from the side through the insulating porcelain tube, and the opening is blocked with the ceramic plug head to prevent heat loss and facilitate the replacement;

D. MUFFLE adopts SUS304-6mm, SUS316L-6mm plate of TISteel. After a large folding machine, the furnace MUFFLE has a folding length of 6 meters, and a V-shaped groove is pressed at the bottom.

E. Stainless steel towing rail is used at the bottom of muffle to facilitate muffle sliding by thermal expansion and cold contraction;

F. Two nitrogen pipelines and one thermocouple for temperature measurement are installed inside muffle;

G. Nitrogen pipeline flowmeter is installed below the static cooling chamber, which can adjust the three-way flow of the inlet of the front curtain chamber, the brazing furnace and the rear chamber;

H. The brazing furnace will be divided into 3 independent areas.The brazing chamber uses a plug-in heating element made of 0Cr25Al5 alloy, mounted separately on the top and bottom of the muffle of each brazing chamber.The heating design takes into account the thermal expansion and expansion rates of different components.All the information displayed shows the maximum capacity of each zone rather than the general production capacity.The actual amount of input will depend on the component.To be altered by particular and inherent differences;



Product technology:

  • Degreasing furnace

  • spray room,

  • drying furnace

  • brazing furnace

  • cooling system

Product quick details:

Mesh belt operating surface height 900mm
Normal operating temperature 600~650℃
Furnace temperature uniformity ±3℃
maximum service temperature 700℃
effective working size 1000mm(Mesh belt width)×250mm(Height of mesh belt)
The channel size 1050mm×300mm(Straight edge height)
Temperature control zone 6 points in Section 6 of Section 3 (temperature measurement)
Temperature measuring point layout The upper and lower of each section + furnace temperature measurement
design power 240KW±10%
Temperature control mode PID,The work pressure regulating
heating mode resistance wire
length of heating zone 6M
conveying chain SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm

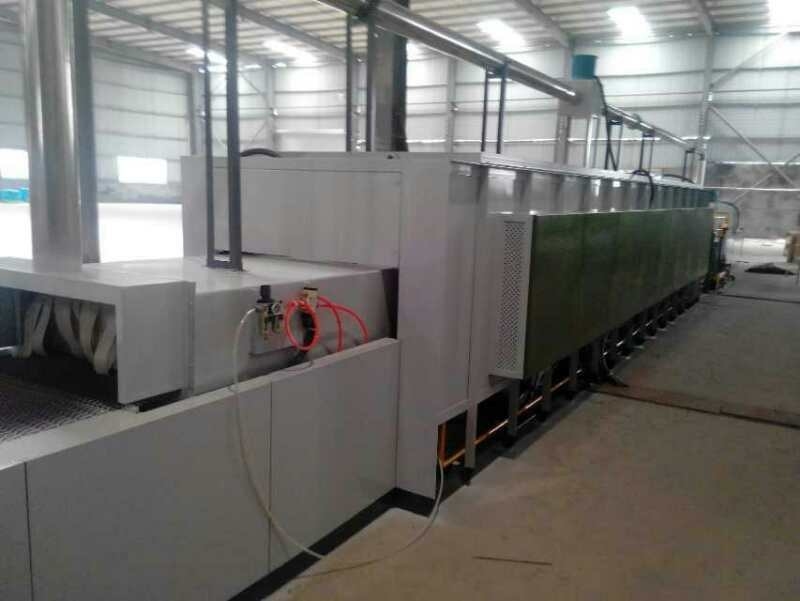

1000mm Width Mesh Belt Aluminium Brazing Furnace Nitrogen Protection 01000mm Width Mesh Belt Aluminium Brazing Furnace Nitrogen Protection 1



About us:

      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year

     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





FAQ:

1.Does the aluminum Brazing furnace machine use gas?

The aluminum Brazing furnace machine can use natural gas as a productive energy source.



2.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?

The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.





3.What’s the style of spray of the aluminum Brazing furnace machine?

The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.



4.Does the aluminum Brazing furnace machine is customized or standard size?

The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.
