1100kgs Radiator Making Machine , Buckle Making Machine High Efficiency

  • 1100kgs Radiator Making Machine , Buckle Making Machine High Efficiency
  • 1100kgs Radiator Making Machine , Buckle Making Machine High Efficiency
  • 1100kgs Radiator Making Machine , Buckle Making Machine High Efficiency
  • 1100kgs Radiator Making Machine , Buckle Making Machine High Efficiency
Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Running Speed Adjustable Voltage, Power 220V/50Hz,2.5kw
Indenter Width 20/30/40mm Direction Adjustment 3 Direction
Machine Weight 1100kgs Maximum Size Of Head Plate 1200mm
High Light

1100kgs Radiator Making Machine

,

H1800mm Radiator Making Machine

,

H1800mm buckle making machine
Leave a Message
Product Description

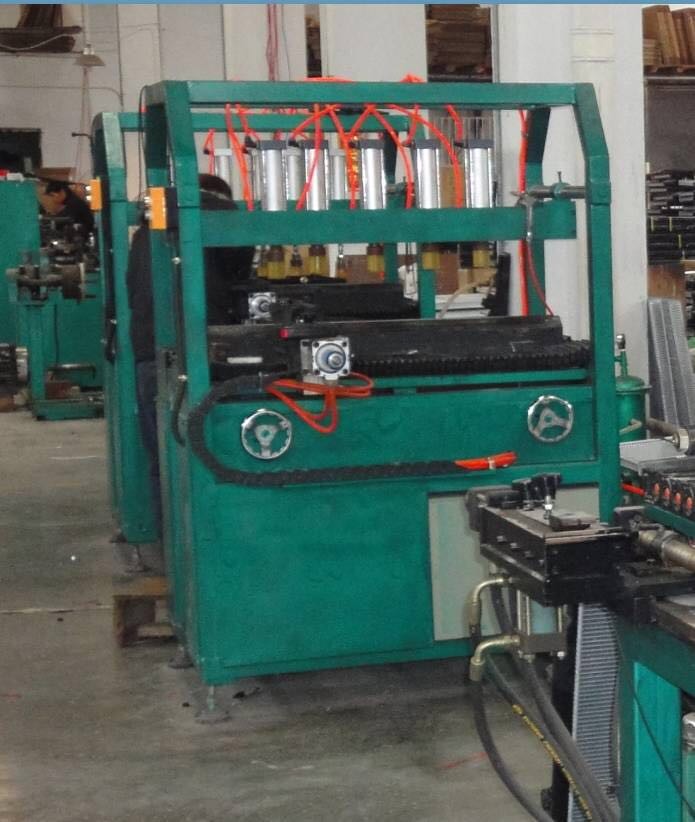

High efficiency automatic aluminum radiator tanks buckle machine

Product introduction:
    The High efficiency automatic aluminum radiator tanks buckle machine consists of aluminum foil decoiling mechanism (photo-electric automatic decoiling), aluminum foil protection device, aluminum foil oiling device, single and double jump latest lownoise high speed precision press machine, high speed precision fin mold, latest guide bar type fin stacking device, waste material collection device,and electrical control system with HMI.







Product quick details:

Programmable available Machine weight 1100kgs
warranty 12 months brand name SUNHOPE
usage automobile tank Surface treatment vertical bright, transition matte or two-way bright
mould can customise shape unregular
Driving mode Servo pneumatic Indenter width 20/30/40mm
Number of cylinders 8--12 Air pressure requirements 0.8Mpa
Core size 1000*900*56mm Voltage, power 220V/50Hz,2.5kw
Workstation 4 running speed adjustable
Maximum size of head plate 120mm production efficiency 60-80
Machine dimensions 1800*1600*1800mm Number of preset models 200models
OEM welcome Direction adjustment 3 direction









Quality assurance

  • Every production process has a special person to test to ensure quality
  • Have professional engineers to check the quality
  • All products have passed CE, FCC, ROHS and other certifications







1100kgs Radiator Making Machine , Buckle Making Machine High Efficiency 0



About us:

      Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

      If you are interested in setting up a radiator factory in your place, please contact us and we will provide you with the best service and best price.



FAQ:

1. Automatic crimping machine and semi automatic crimping machine,which one is better?

Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,

semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.



2. How many types of automatic crimping machine?what ‘s the features of it ?

We can divide them into three types.

A. The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.

B. The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.

C. The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.



3. Is it convenient for workers to operate the semi automatic crimping machine?

The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.
