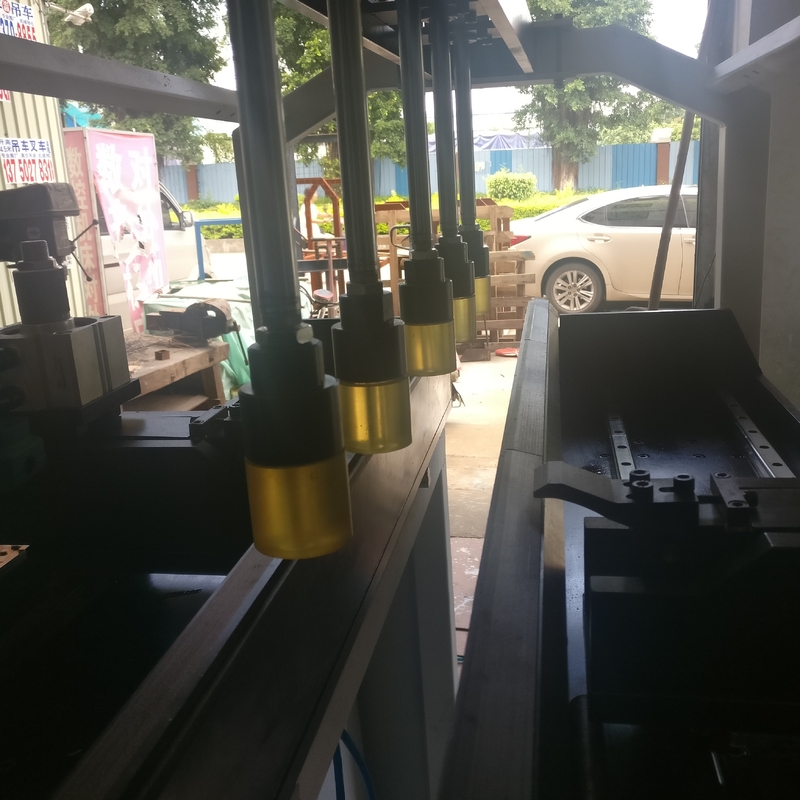

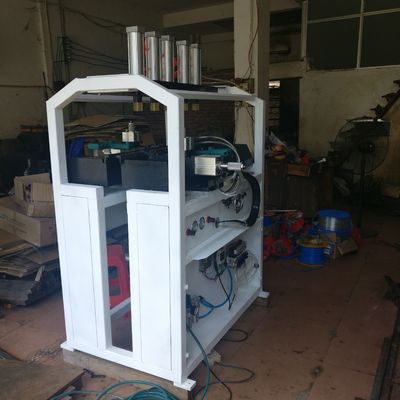

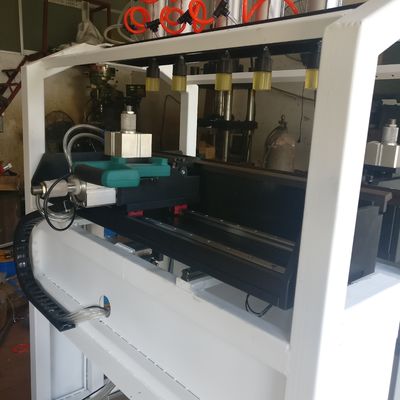

Semi Automatic Pneumatics Plastic Radiator Tank Crimping Tool

  • Semi Automatic Pneumatics Plastic Radiator Tank Crimping Tool
  • Semi Automatic Pneumatics Plastic Radiator Tank Crimping Tool
  • Semi Automatic Pneumatics Plastic Radiator Tank Crimping Tool
Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage, Power 220V/50Hz,2.5kw Running Speed Adjustable
Workstation 2 Number Of Cylinders 6--8
Driving Mode Pneumatics Number Of Preset Models Non.
High Light

Semi Automatic Plastic Radiator Tank Crimping Tool

,

20mm indenter plastic radiator tank crimping tool

,

20mm indenter radiator tank crimping tool
Leave a Message
Product Description

Semi Automatic Pneumatics Plastic Radiator Tank Crimping Tool



Product introduction:

1.This is designed for big plastic radiator tank.

2.This is the economical radiator manufacturing machinery.

3.Daily maintenance is simple.

4.one or two workers can work at the same time.







Products features:

This is the most economical radiator manufacturing machinery.
1. Simple operation, workers only need a short period of training to operate
2. It is suitable for the installation of water chamber with small number of single model
3. Daily maintenance is simple
4. The working position and operating tools can be adjusted manually according to the water chamber structure
5. One or two workers can operate at the same time
6. The side end needs to be manually pressed after the core is removed
7. Different width of tab pressing plate can be selected,
8. The stroke and force of the manipulator can be adjusted manually according to the needs







Product quick details:

warranty 12 months brand name SUNHOPE
usage automobile Surface treatment vertical bright, transition matte or two-way bright
mould can customise shape unregular
design style can customise after-sale service yes
OEM welcome Indenter width 20/30/40mm
Driving mode Pneumatics Air pressure requirements 0.8Mpa
Number of cylinders 6--8 Voltage, power 220V/50Hz,2.5kw
Core size 1000*900*56mm running speed adjustable
Workstation 2 production efficiency 60sec.
Maximum size of head plate 120mm Number of preset models Non.
Machine dimensions 1300*1200*1800 Direction adjustment 3 direction
Machine weight 800kg Programmable Non.











Semi Automatic Pneumatics Plastic Radiator Tank Crimping Tool 0Semi Automatic Pneumatics Plastic Radiator Tank Crimping Tool 1







About us:

    Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

   If you are interested in setting up a radiator factory in your place, please contact us and we will provide you with the best service and best price.







FAQ:
1.How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.

2.Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.

3..How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.



4. Automatic crimping machine and semi automatic crimping machine,which one is better?

Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,

semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.
