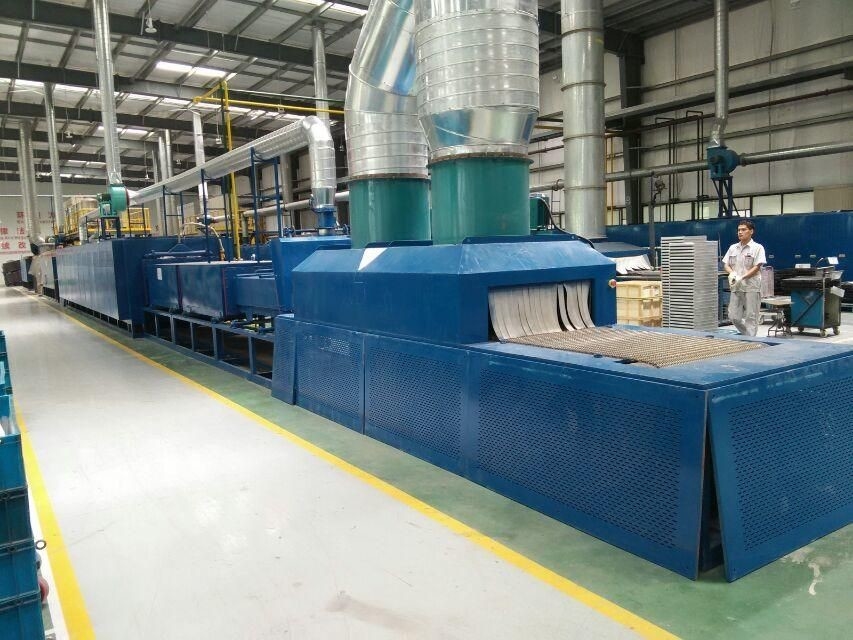

700 KW Aluminum Brazing Furnace
|Heating Method||Resistance Heating||Heating Element||Resistance Wire|
|Type||Resistance Furnace||Power (kW)||700|
|Cooling Method||Water Cooling Or Air Cooling||Use||Aluminum-aluminum Welding; Copper-copper Welding, Etc|
700 KW Aluminum Brazing Furnace,
1000mm mesh belt Aluminum Brazing Furnace,
1000mm mesh belt furnace brazing equipment
Mesh belt protective atmosphere continuous electric aluminum bright brazing furnace
Mesh Belt Conveyor furnace are specifically designed to service for a wide range of heat treatment process, such as Hardening, Carburising, Carbonitriding, Nitriding, bright Annealing, Tempering, Isothermal Annealing and Stress Relieving. The production line equipped with the loading machine, pre-washing machine, carburizing quenching furnace, after cleaning machine, tempering furnace, etc.
1). Driving system of mesh belt: Driving the stailess steel roller with high temperature resistant through the chain wheel to circulatory drag mesh belt move into the chamber, which can expanding the service life of mesh belt and Reducing furnace heat
2). Equipped the fan inside of furnace to ensure temperature uniform and protect (carburizing) atmosphere evenly dispersed, which can improve the carburizing speed and workpiece quality.
3). On the rear of furnace equipped with an exhaust fan for timely discharge waste gas and improve gloss of workpiece surface.
4). On the bottom of the furnace body is equipped with slag removal mouth, which can convenient and clean up the slag.
5). New sealing design of furnace door can save 55-65% atmospher consumption, and also deep permeation, 30-40% higer efficiency than before under the pressure at ≥10-100Pa.loss, meanwhile improving more high thermal efficiency.
1), Conveyor mesh belt made from heat resistant alloy wire, guiding moving through furnace bottom plate support under the marching type transmission mechanism, to make sure mesh belt in a state of relaxation at high temperature, to improve the mesh belt life and running smoothness.
2), Muffle tank use heat resistant steel forming and welded together to be a sealed tank after stamping, equipped with gas curtain pipe at muffle mouth , has blanking port and mesh belt at the end of muffle tank , mesh belt back channel is equipped with water cooling and water seal, ensure good sealing of the furnace and gas consumption is small.
3), Mesh belt speed can be adjusted through mechanical stepless speed regulating motor.
4), Blanking channel have oil curtain mechanism, smoking mechanism, oil mixing mechanism and heat exchange device, can ensure the realization of the heat treatment process.
|Place of Origin:||Guangdong,china||Warranty:||1 Year|
|Condition:||New||After-sales Service Provided:||Engineers available to service machinery overseas|
|Type:||Resistance Furnace||Applicable Industries:||Manufacturing Plant|
|Usage:||Heat Treatment Furnace||muffle length:||10m|
|Brand Name:||Sunhope||mesh belt speed:||200-1000mm depending on furnace size|
|Voltage:||Requirement||rated working temperature:||650 degree celcius|
|Dimension(L*W*H):||Custom Made||cooling method:||water cooling or air cooling|
|Power (kW):||700||energy medium:||electricity|
Product technical parameters:
|Mesh belt operating surface height||900mm|
|Normal operating temperature||600～650℃|
|Furnace temperature uniformity||±3℃|
|maximum service temperature||700℃|
|effective working size||1000mm(Mesh belt width)×250mm(Height of mesh belt)|
|The channel size||1050mm×300mm(Straight edge height)|
|Temperature control zone||6 points in Section 6 of Section 3 (temperature measurement)|
|Temperature measuring point layout||The upper and lower of each section + furnace temperature measurement|
|Temperature control mode||PID,The work pressure regulating|
|heating mode||resistance wire|
|length of heating zone||6M|
|conveying chain||SUS316L,Wire Φ 3 mm, wear silk Φ 3.5 mm|
Our company has been engaged in the manufacture and development of automobile radiator condenser products for more than 15 years. Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.
With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.
1.Does the aluminum Brazing furnace machine use gas?
The aluminum Brazing furnace machine can use natural gas as a productive energy source.
2.How to know what kinds of specifications of the aluminium brazing furnace machine should be customized?
The customers provide the productions plan ,the biggest size of the core and the dimensions of the production workshop.The engineer will give the best cost-effective solution according to the information provided.
3.What’s the style of spray of the aluminum Brazing furnace machine?
The spray of the aluminum Brazing furnace machine can be divided into dry electrostatic powder spray style and aqueous solution spray style.
4.Does the aluminum Brazing furnace machine is customized or standard size?
The aluminum Brazing furnace machine is customized by customers according to their respective capacity requirements and product series specifications.
