8pcs Cylinders Radiator Making Machine

Place of Origin Foshan,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage, Power 220V/50Hz,2.5kw Driving Mode Servo Pneumatic
Core Size 1000*900*56mm Machine Dimensions 1800*1600*1800mm
Indenter Width 20/30/40mm Air Pressure Requirements 0.8Mpa
High Light

8pcs Cylinders Radiator Making Machine


1000*900*56mm Radiator Making Machine


8pcs Cylinders aluminium fin press machine

Leave a Message
Product Description

8 Cylinders automatic radiator plastic tank press machine

Product introduction:

   This machine is a pneumatic radiator manufacturing machine with servo motor, suitable for mass production of single model products. The working speed is fast and the operation is simple. PLC controller can edit and store the working program of 200 types of plastic radiator tank. Aluminum radiator plastic tank crimping riveting machine is used to crimp header plate teeth and lock the plastic tank on the core. There is a sealing space between the crimping plastic tank, the sealing gasket and the header plate. It is suitable for crimping all kinds of products. Radiator crimping machine is divided into long side head crimping mechanism and end crimping mechanism. Both long and short side headers are crimped through a machine cycle.


Product advantages:

1.Different width of tab pressing plate can be selecte

2.Daily maintenance is simple

3.save time


Quality assurance

  • Every production process has a special person to test to ensure quality
  • Have professional engineers to check the quality
  • All products have passed CE, FCC, ROHS and other certifications

Product quick details:

Machine weight 1100kgs Programmable available
brand name SUNHOPE warranty 12 months
Surface treatment vertical bright, transition matte or two-way bright usage automobile tank
shape unregular mould can customise
Indenter width 20/30/40mm Driving mode Servo pneumatic
Air pressure requirements 0.8Mpa Number of cylinders 8--12
Voltage, power 220V/50Hz,2.5kw Core size 1000*900*56mm
running speed adjustable Workstation 4
production efficiency 60-80 Maximum size of head plate 120mm
Number of preset models 200models Machine dimensions 1800*1600*1800mm
Direction adjustment 3 direction OEM

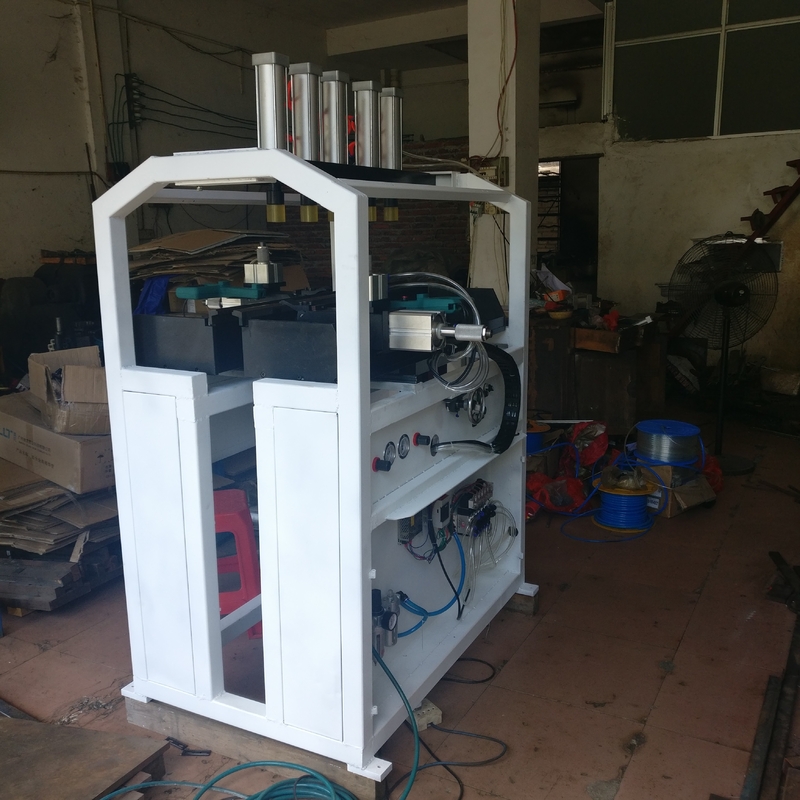

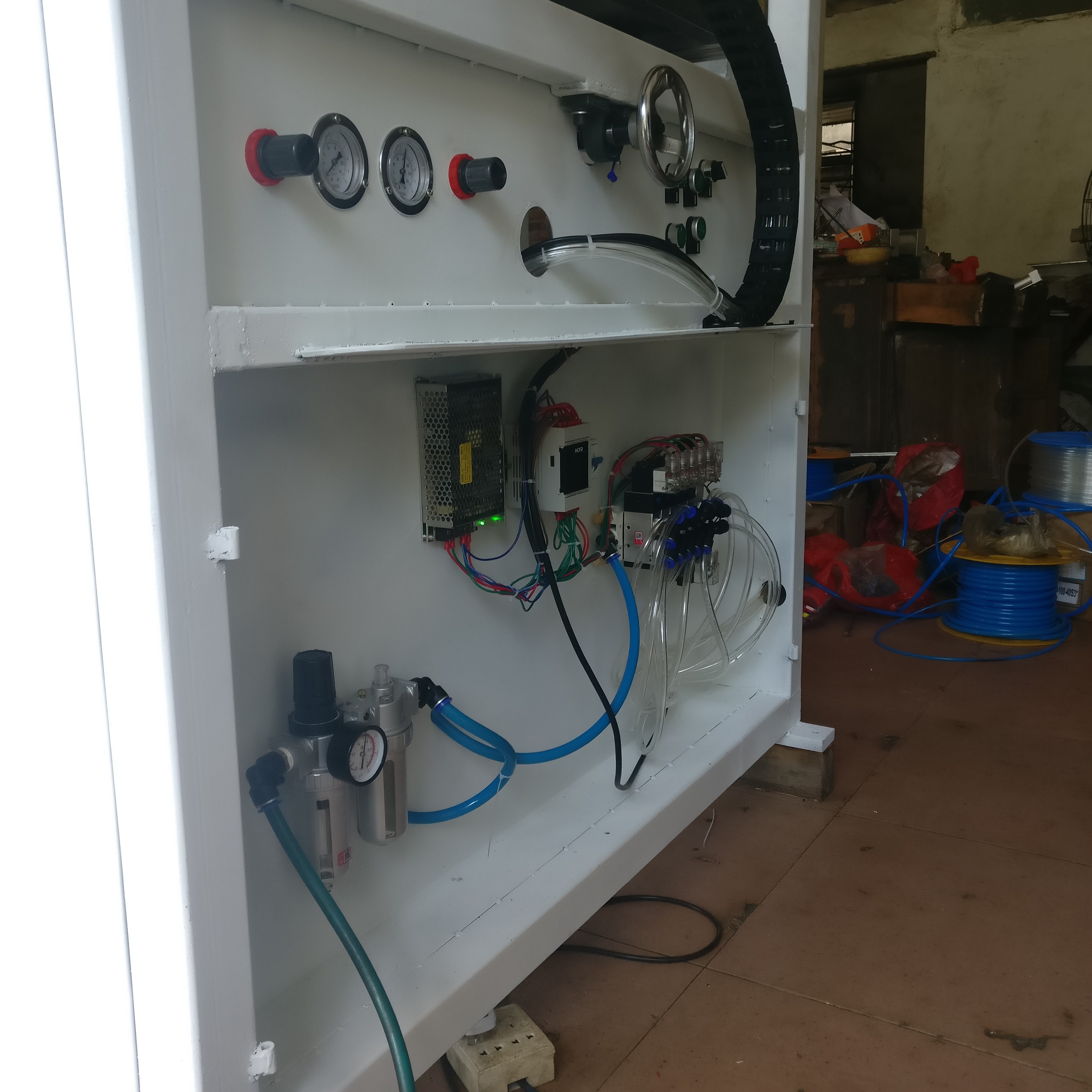

8pcs Cylinders Radiator Making Machine 08pcs Cylinders Radiator Making Machine 1


About us:

     Our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.Most of the products are sold to all countries and regions in the world, and have accumulated rich production experience.Our company is good at manufacturing all the process of the radiator tank production line.In recent years,many companies from other countries in the same industry also bought the CKD from us and purchased the machine equipment from us as well.

    If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.





1.Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.


2.How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.


3.How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.



4. Automatic crimping machine and semi automatic crimping machine,which one is better?

Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,

Semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.
