20mm Indenter Radiator Making Machine

Place of Origin Guangdong,china
Brand Name Sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month
Product Details
Direction Adjustment 3 Direction Programmable Non.
Machine Weight 800kg Driving Mode Pneumatics
Number Of Cylinders 6--8 Machine Dimensions 1300*1200*1800
High Light

20mm Indenter Radiator Making Machine

,

2500w Radiator Making Machine

,

20mm Indenter radiator crimping tool

Leave a Message
Product Description

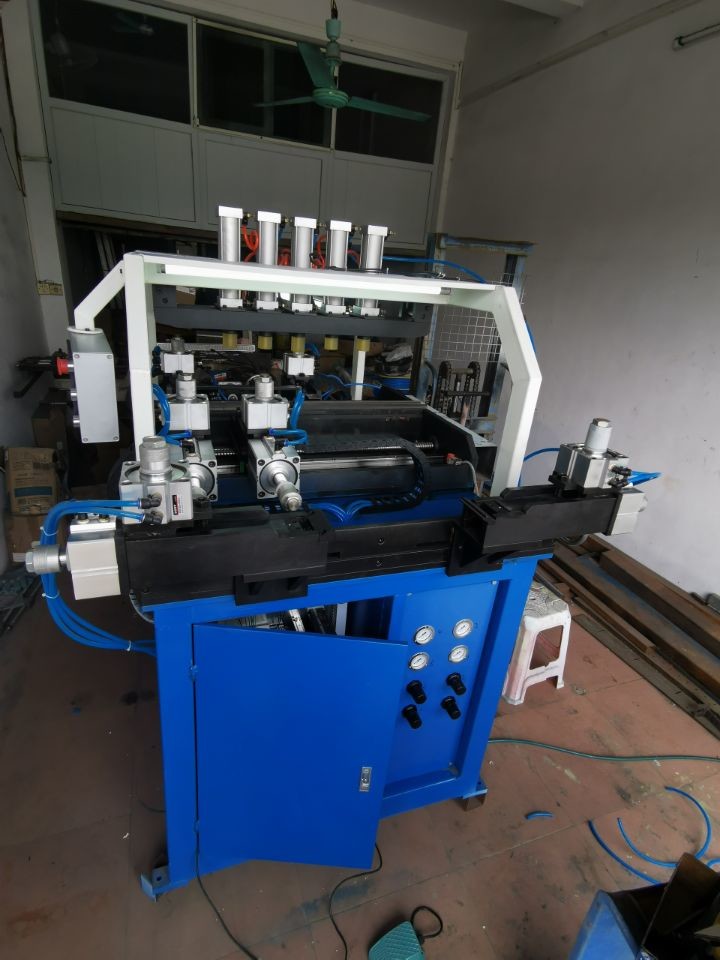

Double position semi-automatic radiator crimping machine

Product introductions:

       The most commonly used features of the Double position semi-automatic radiator crimping machine are: low price, simple operation, energy saving, suitable for the production situation of many models and small quantity

      Simple operation, workers only need a short period of training to operate

      The stroke and force of the manipulator can be adjusted manually according to the needs

        Different width of tab pressing plate can be selected,





Product applications:

It is used for producing automobile radiator plastic tank or truck tank.







Product advantages:

A.One or two workers can operate at the same time
B. The side end needs to be manually pressed after the core is removed
C. Different width of tab pressing plate can be selected,
D. The stroke and force of the manipulator can be adjusted manually according to the needs



Product specifications:

warranty 12 months brand name SUNHOPE
usage automobile Surface treatment vertical bright, transition matte or two-way bright
mould can customise shape unregular
design style can customise after-sale service yes
OEM welcome Indenter width 20/30/40mm
Driving mode Pneumatics Air pressure requirements 0.8Mpa
Number of cylinders 6--8 Voltage, power 220V/50Hz,2.5kw
Core size 1000*900*56mm running speed adjustable
Workstation 2 production efficiency 60sec.
Maximum size of head plate 120mm Number of preset models Non.
Machine dimensions 1300*1200*1800 Direction adjustment 3 direction
Machine weight 800kg Programmable Non.









20mm Indenter Radiator Making Machine 020mm Indenter Radiator Making Machine 1





About us :

    Foshan Sunhope company is located in the beautiful Foshan city.The main products are radiator crimping machine,core builder machine, radiator fin forming machine,ultrasonic cleaning machine,vacuum plastic packaging machines,aluminum cooling system brazing furnace,Air tightness testing machine for condenser radiator,aluminum foil for radiator fin,aluminum sheet for radiator head plate,aluminum radiator componets headplate,punching and shearing oil,aluminium flux.



1: Our company In radiator tanks business line around 10 years
2: Currently more than 2,000 models of plastic tank and 1,500 items of radiator for small car and truck, covering most famous car like BMW, CHRYSLER, DAEWOO, FORD, GM, HONDA, HYUNDAI, MERCEDES-BENZ, MITSUBISHI, NISSAN, TOYOTA, ect.
3: Obtaining hi-tech equipments and technics, including advanced CNC, electric pulse, around 100sets new molds developed every year



     If you are interested in setting up a radiator factory in your place or buying any products , please contact us and we will provide you with the best service and best price.



FAQ:

1.Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.



2.How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.



3.How many models type can automatic crimping machine system store?
Because is PLC interface setting,is can store most 200 different models and positions of tanks and it basically covers most of the model of cars.





4. Automatic crimping machine and semi automatic crimping machine,which one is better?

Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,

Semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.
