220V Clinching Machine

Place of Origin Guangdong,china
Brand Name sunhope
Minimum Order Quantity 1
Price negotiable
Packaging Details wooden case with safty packing material
Delivery Time 60days
Payment Terms L/C, T/T
Supply Ability 10sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Cylinders 6--8 Core Size 1000*900*56mm
Workstation 2 Maximum Size Of Head Plate 120mm
Machine Dimensions 1300*1200*1800 Voltage, Power 220V/50Hz,2.5kw
High Light

220V Clinching Machine

,

0.8Mpa Clinching Machine

,

220V radiator production line

Leave a Message
Product Description

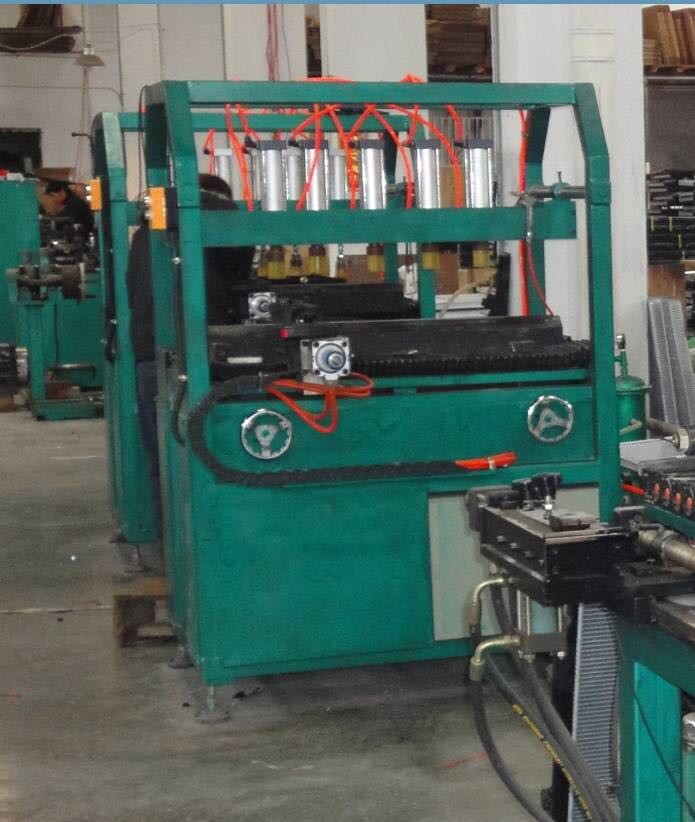

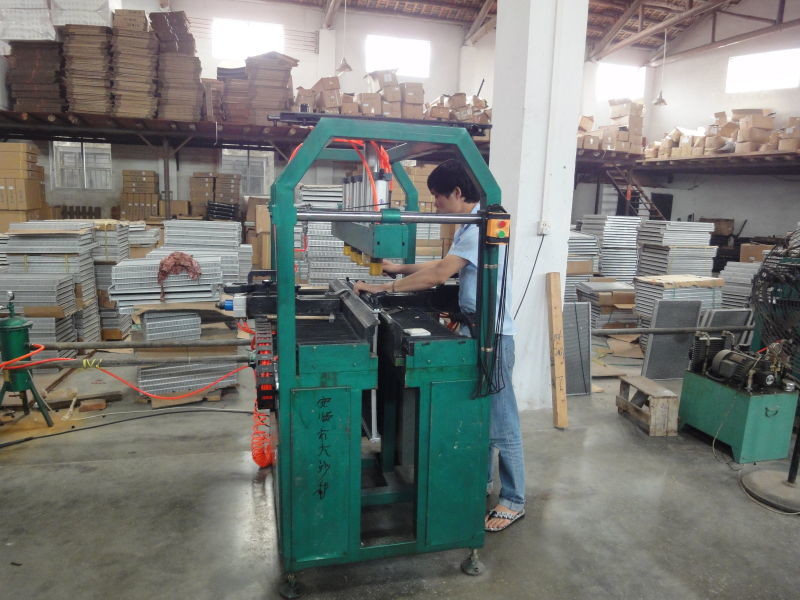

Unconventional semi automatic tab plastic tank clinching machine

Product features:
-High structure, high stability, less vibration, high accuracy
-Energy saving re-design reliability and eneryy efficiency of a full hydraulic system
-Optional auto feeding system and clinching joint system




Product advantages:

This is the most economical radiator manufacturing machinery.
1. Simple operation, workers only need a short period of training to operate
2. It is suitable for the installation of water chamber with small number of single model
3. Daily maintenance is simple
4. The working position and operating tools can be adjusted manually according to the water chamber structure
5. One or two workers can operate at the same time
6. The side end needs to be manually pressed after the core is removed
7. Different width of tab pressing plate can be selected,
8. The stroke and force of the manipulator can be adjusted manually according to the needs



Product quick details:

Maximum size of head plate 120mm Driving mode Driving mode
Machine dimensions 1300*1200*1800 Number of cylinders Number of cylinders
Indenter width 20/30/40mm Core size Core size
Air pressure requirements 0.8Mpa Workstation Workstation
Voltage, power 220V/50Hz,2.5kw Number of preset models Non.
running speed adjustable Direction adjustment 3 direction
production efficiency 60sec. Programmable Non.
Number of preset models Non. Machine weight 800kg
Direction adjustment 3 direction warranty 12 months
Programmable Non. usage automobile
Machine weight 800kg mould can customise






220V Clinching Machine 0220V Clinching Machine 1



About us:
   With the development of heat exchange industry, more and more countries and regions are committed to building local radiator condenser plants. With our understanding of the industry, we have been helping foreign customers to set up radiator factories and provide the production machine in the region in the past five years. We provide customers with pre-sale and after-sale equipment design and service according to the size of our products.In the meantime we will also provide the material to our customers as well. We will send technicians to guide the installation on site to ensure the smooth production of the customer's factory, and provide free consultation service in case of any doubt in the production process.
    At the same time, our company provides customers with all kinds of radiator, condenser required hardware and plastic components. Ensure the supply and quality of finished products.
    If you are interested in setting up a radiator factory in your place, please contact us and we will provide you with the best service and best price.




FAQ:

1.Is it convenient for workers to operate the semi automatic crimping machine?
The semi automatic crimping machine,the workers only needs to train simply to operate the machine and the operation is convenient and simple.

2.How many types of automatic crimping machine?what ‘s the features of it ?
We can divide them into three types.
A.The first one is single side single crimping head automatic crimping machine.The features are using simply,cheap price.But because the single crimping head tools have the long working cycle,the working efficiency is low.The narrow side tab needs to compress with hands.
B.The second one is single side two crimping heads automatic crimping machine.The features are two crimping heads can work at the same time.The speed and the efficiency is high.The narrow side tab needs to compress with another tools.
C.The third one is single side two crimping heads and the other side also two crimping heads automatic crimping machine.The features are it can finish the crimping of all the whole tanks in the same working stations.The working efficiency is very high.Single side two crimping heads and its narrow side needs to crimp with another clamping tools.The features are when it finishes crimping the long side and needs to crimp the narrow side tab.



3. Automatic crimping machine and semi automatic crimping machine,which one is better?

Automatic crimping machine is suitable for a single model order of 300 sets or more at a time,

semi automatic crimping machine is suitable for this kinds of production plan which is more models but less quantity.
