450mm fin width fin forming machine With Automatic Coiler and Servo cutting machine

  • 450mm fin width fin forming machine With Automatic Coiler and Servo cutting machine
  • 450mm fin width fin forming machine With Automatic Coiler and Servo cutting machine
Place of Origin Guangdong,China
Brand Name Sunhope
Minimum Order Quantity 1 set
Price negotiable
Packaging Details wooden case
Delivery Time 60 days
Payment Terms L/C, T/T
Supply Ability 10 set/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Input KW 5.5KW Power Supply Three Phase 380V±10% 50Hz
Vertical Stroke Of Machine Tool 14mm Fin (tooth Height X Tooth Spacing) 12×20
Punching Force Of Machine Tool 11000kg Maximum Fin Height 12mm
Maximum Fin Width Mm 450mm Transmission Mode Flexible Drive
Highlight

450mm radiator fin forming machine

,

automatic coiler fin forming machine

,

servo cutting fin forming machine
Leave a Message
Product Description

Product Description:

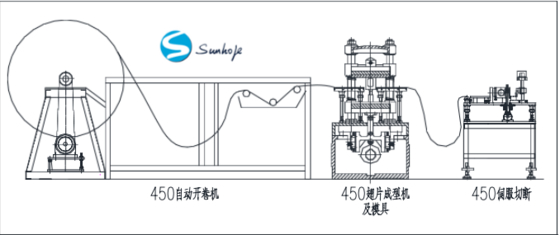

1.The structure mainly includes the following parts: main shaft transmission device, lower plate up and down moving device, upper plate up and down moving device, lower plate feeding device, column guide device, mold regulating device, hydraulic lubrication device, main electric control box.

2: The working principle is as follows:

BCX finned forming machine mainly includes host seat, spindle, upper table, lower table, the two ends of the spindle is fixed in the host seat, the

host seat above the guide post and spring connected with the lower table, the upper table.

The upper die is fixed below the upper workbench, and the lower die is fixed above the sliding block ofthe lower workbench.

There are three cams on the main shaft, and the two ends of the CAM drive the pillar for vertical reciprocating motion, so as to drive the upper and lower table periodically for up and down reciprocating motion.

The intermediate CAM drives the connecting rod to make the sliding block on the lower workbench move horizontally and reciprocally for



feeding.

  Features:



  • Product Name: Radiator Fin Forming Machine
  • Maximum fin width: 450mm
  • Machine input KW: Variable Frequency Stepless Speed Regulation
  • Variable frequency constant: 25~120 Strokes Per
  • Power supply: Three Phase 380V±10% 50Hz±2%
  • Highest flatness of lower die table: ≤0.02mm

This aluminum fin forming machine for radiator is also known as Car Aluminum Radiator & Condenser Fin Making Machine.



Technical Parameters:

Flatness during rise of die table ≤0.03mm
Highest flatness of lower die table ≤0.02mm
Variable frequency constant 25~120 Strokes Per
Maximum fin width 450mm
Fin (tooth height x tooth spacing) 12×20mm
Power supply Three Phase 380V±10% 50Hz±2%
Machine weight 1500KG
Machine input KW Variable Frequency Stepless Speed Regulation



Electrical control system



The system from unwinding to servo cutting device control using Siemens PLC touch screen control, to ensure the coordination ofthe system.(Frequency converter from Taiwan Delta, contactor from France Schneider)
